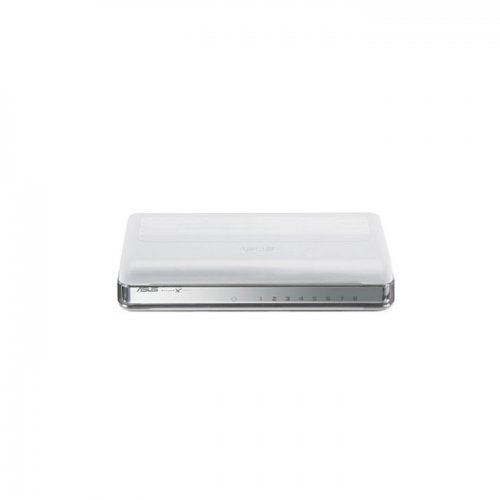

ASUS GigaX1008B
• Port Attributes
8 RJ-45 for 10/100Mbps Ethernet ports
Auto MDI/MDIX.
Auto negotiation of speed, duplex mode, and flow control.
• Physical Specification
3.4cm (H) X 16.5cm (W) X 8.0cm (D)
Weight: 205g
• Standard Compliance
IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3x Flow Control
• Performance
1K MAC address table with automatic learning and aging.
Switch Fabric Capacity
1.6 Gbps
• Environmental Specification
Operating Temperature: 0°C – 40°C (32°F – 104°F)
Non-Operating Temperature -20°C – 70°C (-4°F – 158°F)
Operating Humidity 10% – 90% non-condensing
Vibration:IEC 68-2-36
Shock:IEC 68-2-29
Drop:IEC 68-2-32
• Safety
UL1950
TUV
• EMC
FCC Part 15 Class B
CE Mark
VCCI
C-Tick
MIC
CCC.
