Cisco SPA112

Affordable and Feature-Rich Voice over IP (VoIP)



Highlights



Eliminate compromise on voice quality or features for phone and fax capabilities associated with Internet voice over IP (VoIP) service. Cisco® VoIP solutions provide the quality, peace of mind, and investment protection at an affordable price.



Product Overview



The Cisco SPA112 2 Port Adapter enables high-quality VoIP service with a comprehensive feature set through a broadband Internet connection. Easy to install and use, it works over an IP network to connect analog phones and fax machines to a VoIP service provider and provides support for additional LAN connections.



The Cisco SPA112 includes two standard telephone ports to connect existing analog phones or fax machines to a VoIP service provider. Each phone line can be configured independently. With the Cisco SPA112, users can protect and extend their investment in their existing analog telephones, conference speakerphones, and fax machines as well as control their migration to IP voice with an extremely affordable, reliable solution.



Compact in design and compatible with international voice and data standards, the Cisco SPA112 can be used with residential, home-office, and small business VoIP service offerings, including full-featured hosted or open source IP PBX environments. This easy-to-use solution delivers advanced features to better connect employees and serve customers, all on a highly secure Cisco network.



The Cisco SPA112 2 Port Adapter (Figures 1 and 2):



• Enables high-quality VoIP service with a comprehensive feature set through a broadband Internet connection



• Provides high-quality, clear-sounding voice, using advanced voice quality-of-service (QoS) capabilities and the industry-leading voice Session Initiation Protocol (SIP) stack



• Supports reliable faxing with simultaneous voice and data use



• Includes two standard telephone ports, each with an independent phone number, for use with fax machines or analog phone devices



• Is compatible with all industry voice and data standards and common telephone features such as caller ID, call waiting, and voicemail



• Includes a simple-to-use web-based configuration utility for easy deployment

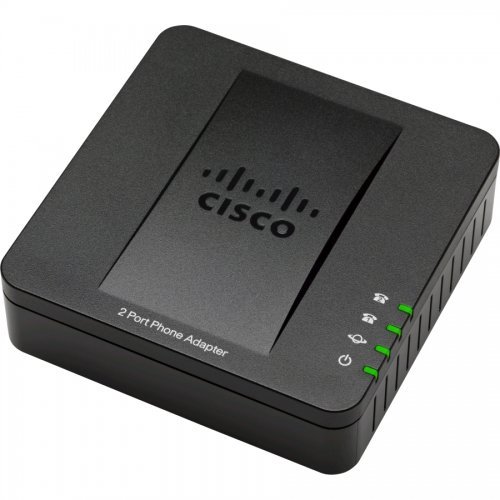

Figure 1. Cisco SPA112 2 Port Adapter







Figure 2. Ports on Cisco SPA112 ATA 2 Port Adapter







Features and Benefits



The Cisco SPA112 provides an easy-to-use VoIP solution that offers:



• Toll-quality voice and carrier-class feature support: The Cisco SPA112 delivers clear, high-quality voice communication under a variety of network conditions. Excellent voice quality in challenging, changeable IP network environments is made possible through the advanced implementation of standard voice coding algorithms. The Cisco SPA112 is interoperable with common telephony equipment such as fax, voicemail, private branch exchanges (PBXs) and key telephone systems (KTSs), and interactive voice response systems.



• Large-scale deployment and management: The Cisco SPA112 enables service providers to provide customized services to their subscribers. It can be remotely provisioned and supports dynamic, in-service software upgrades. A highly secure profile upload saves providers the time and expense of managing and preconfiguring or reconfiguring customer premises equipment (CPE) for deployment.



• Outstanding security: The Cisco SPA112 supports highly secure, encryption-based methods for communication, provisioning, and servicing.



• Compact size: Designed for small spaces, the Cisco SPA112 can be installed as a desktop unit or mounted on a wall.



• Comprehensive feature set: The standards-based Cisco SPA112 is compatible with Internet VoIP provider features such as caller ID, call waiting, voicemail, call forwarding, distinctive ring, and much more to provide a complete, affordable, and highly reliable solution for high-quality VoIP.



• Easy installation and changes: The web-based configuration utility enables quick deployment and easy changes.



• Investment protection: Businesses that are growing rapidly can use the solution with other Cisco Unified Communications solutions, providing industry-leading investment protection.



• Peace of mind: Cisco solutions deliver the solid reliability you expect from Cisco. All solution components have been rigorously tested to help ensure easy setup, interoperability, and performance.



Table 1 lists the specifications for the Cisco SPA112 2 Port Adapter.



Table 1. Product Specifications



Specifications*

Description

*Note: Many specifications are programmable within a defined range or list of options. Please see the Cisco SPA100 Series Administration Guide for details. The configuration profile is uploaded to the Cisco SPA112 at the time of provisioning.

Data networking

MAC address (IEEE 802.3)

IPv4 (RFC 791) upgradeable to IPv6 (RFC 1883)

Address Resolution Protocol (ARP)

Domain Name System (DNS) A record (RFC 1706) and SRV record (RFC 2782)

Dynamic Host Configuration Protocol (DHCP) client (RFC 2131)

Point-to-Point Protocol over Ethernet (PPoE) client (RFC 2516)

Internet Control Message Protocol (ICMP) (RFC 792)

TCP (RFC 793)

User Datagram Protocol (UDP) (RFC 768)

Real Time Protocol (RTP) (RFC 1889) (RFC 1890)

Real Time Control Protocol (RTCP) (RFC 1889)

VLAN tagging (IEEE 802.1p)

Simple Network Time Protocol (SNTP) (RFC 2030)

SIP channels support for both UDP and TCP transport

Voice gateway

SIPv2 (RFC 3261, 3262, 3263, and 3264)

SIP proxy redundancy: Dynamic through use of DNS SRV A records

Reregistration with primary SIP proxy server

SIP support in network address translation (NAT) networks (including Serial Tunnel [STUN])

Highly secure (encrypted) calling using Secure RTP (SRTP)

Codec name assignment

G.711 (A-law and μ-law)

G.726 (32 kbps)

G.729 A

Dynamic payload

Adjustable audio frames per packet

Dual-tone multifrequency (DTMF): In-band and out-of-band (RFC 2833) (SIP information)

Voice features

Independent configurable dial plans with interdigit timers and IP dialing (1 per port)

Call progress tone generation

Jitter buffer: Adaptive

Frame loss concealment

Full-duplex audio

Echo cancellation (G.165 and G.168)

Voice activity detection (VAD)

Silence suppression

Comfort noise generation (CNG)

Attenuation and gain adjustments

Flash hook timer

Message waiting indicator (MWI) tones

Visual messaging waiting indicator (VMWI) using frequency shift keying (FSK)

Polarity control

Hook flash event signaling

Caller ID generation (name and number): Bellcore, DTMF, and European Telecommunications Standards Institute (ETSI)

Streaming audio server: Up to 10 sessions

Music on hold

Call waiting, call waiting and caller ID

Caller ID with name and number

Caller ID blocking

Selective and anonymous call rejection

Call forwarding: No answer, busy, and all

Do not disturb

Call transfer, call return, and call back on busy

Three-way conference calling with local mixing

Per-call authentication and associated routing

Call blocking with toll restriction

Distinctive ringing: Calling and called number

Off-hook warning tone

Advanced inbound and outbound call routing

Hotline and warmline calling

Long silence (configurable time setting) silence threshold

Disconnect tone (for example, reorder tone)

Configurable ring frequency

Ring validation time setting

Tip and ring voltage adjustment setting

Ring indication delay setting

Fax capability

Fax tone detection pass-through

Fax pass-through using G.711

Real-time fax over IP using T.38 fax relay (T.38 support is dependent on fax machine and network and transport resilience)

Security

Password-protected system reset to factory default

Password-protected administrator and user access authority

Provisioning, configuration, and authentication

HTTPS with factory-installed client certificate

HTTP digest: Encrypted authentication using MD5 (RFC 1321)

Up to 256-bit Advanced Encryption Standard (AES) encryption

SIP Transport Layer Security (TLS)

Provisioning, administration, and maintenance

Web browser administration and configuration using integral web server

Telephone keypad configuration with interactive voice prompts

Automated provisioning and upgrade using HTTPS, HTTP, and Trivial File Transfer Protocol (TFTP)

TR-069

Asynchronous notification of upgrade availability using Notify

Nonintrusive, in-service upgrades

Report generation and event logging

Statistics in Bye message

Debug server records and syslog: Per-line configurable web browser

Ping and traceroute diagnostics

Configuration management: Backup and restore

Support for Bonjour

Physical interfaces

1 WAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3)

2 RJ-11 FXS phone ports for analog circuit telephone device (tip and ring)

Reset button

Subscriber line interface circuit (SLIC)

Ring voltage: 40-90 Vpk configurable

Ring frequency: 20-25 Hz

Ring waveform: trapezoidal

Maximum ringer load: 5 ringer equivalence numbers (RENs)

On-hook voltage (tip and ring): -46 to -56V

Off-hook current: 18-25 mA

Terminating impedance: 600 ohm resistive or 270 ohm + 750 ohm

150 nF complex impedance

Frequency response: 300-3400 Hz

Return loss (600 ohm, 300-3400 Hz): up to 20 dB

Insertion loss (1 Vrms at 1 kHz): 3-4 dB

Total harmonic distortion (THD) (350 mV peak at 300 Hz): up to 3%

Idle channel noise: 72 dB (typical)

Longitudinal balance: 55 dB (typical)

Off-hook threshold (line seizure): Rdc < 1000 ohm

On-hook threshold (line release): Rdc >10000 ohm

Rdc DC supervisory range: Rdc > 450 ohm

Regulatory compliance

FCC (Part 15 Class B), CE, ICES-003, A-Tick certification, Restriction of Hazardous Substances (RoHS), and UL

Power supply

DC input voltage: 5V DC at 2.0A maximum

Power consumption: 5W

Switching type (100-240V) automatic

Power adapter: 100-240V and 50-60 Hz (26-34 VA) AC input, with 1.8m cord

Indicator lights and LEDs

Phone 1, phone 2, Internet, and power

Documentation

Quick Start Guide

Administration Guide (available online)

Provisioning Guide (available online)

Environmental

Dimensions (W x H x D)

3.98 x 3.98 x 1.10 in. (101 x 101 x 28 mm)

Unit weight

5.40 oz (153 g)

Operating temperature

32 to 113ºF (0 to 45ºC)

Storage temperature

-77 to 158ºF (-25 to 70ºC)

Operating humidity

10 to 90% noncondensing

Storage humidity

10 to 90% noncondensing

Package Contents

Cisco SPA112 2 Port Phone Adapter

5V/2A power adapter

6-ft (1.83m) Ethernet cable

Quick Start Guide

CD with documentation, including license and warranty
