Комуникационен шкаф ALAN FTTH Multimedia Home Box 350x250x90, flush mount, perforated door, metal panel inside (space for: 1x power socket, 14x keystone jacks)

Продуктов код: 87660


Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ALAN
Модел:
-
Партиден номер:
FOOM-I-350-P
Дълбочина:
90 мм.
Rack-Mount Form Factor Size:
9U
Цена с включен ДДС:
99.00 лв.
ДОБАВИ В КОЛИЧКАТА
  • Описание
  • Ревюта
  • Въпроси и отговори

ALAN FOOM-I-350-P

FOOM-I-350-P, FTTH Box 350x250x90 flash mount

Overall width with frame: 350.5 mm

Total height with frame: 404 mm

Body dimension: 250 x 350 mm

Depth: 91 mm



Multimedia Home Box is designed for placing the ends of cables, placing active or passive devices and, if necessary, supplying electricity, as well as enabling signal distribution in the apartment in accordance with the regulation of the Polish Minister of Infrastructure on the technical conditions they should meet buildings and their location.



DIMENSIONS

  • Overall width with frame: 350.5 mm
  • Total height with frame: 404 mm
  • Body dimension: 250 x 350 mm
  • Depth: 91 mm

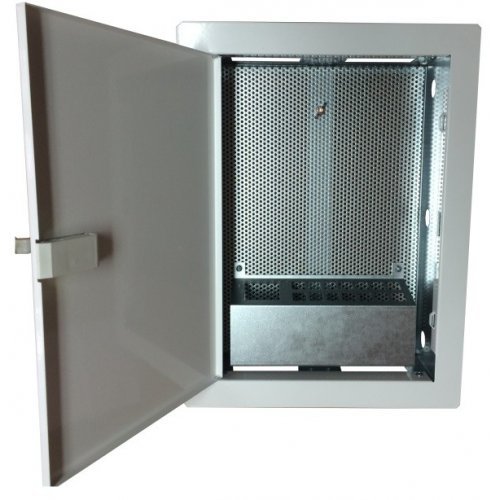

FTTx cabinet vertical, flush mounting

  • Adjustable frame made of DC01 sheet metal 1mm, powder coated.
  • The standard color is white, others available for special order.
  • The cabinet is equipped with an openwork back wall enabling the installation of an active device or mounting plate at any place.
  • In addition, the cabinet is equipped with a screwed panel for: 14 RJ sockets and a dedicated slot for a 45x45 mm standard power socket.
  • Cable glands from each side of the body.
  • The door is closed with a plastic latch.
  • The body is made of galvanized sheet.
  • There is a possibility of replacing the latch with an optional key lock.
