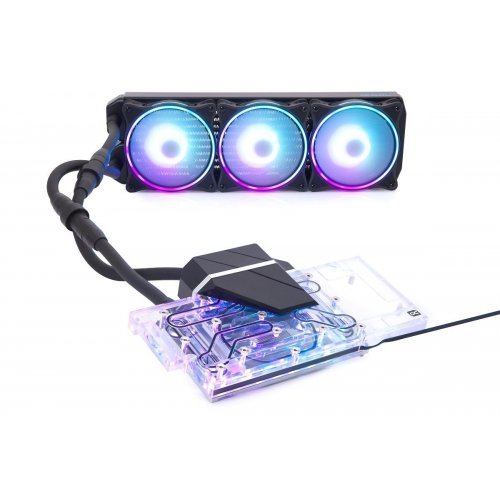

Система с водно охлаждане Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Gaming/Eagle with Backplate
Compatibility list:
RTX 3080 TI
Gigabyte GeForce RTX 3080 Ti Eagle 12G, 12GB GDDR6X, 2x HDMI, 3x DP
Gigabyte GeForce RTX 3080 Ti Eagle OC 12G, 12GB GDDR6X, 2x HDMI, 3x DP
Gigabyte GeForce RTX 3080 Ti Vision OC 12G, 12GB GDDR6X, 2x HDMI, 3x DP
Gigabyte Geforce RTX 3080 Ti Gaming OC
RTX 3080
Gigabyte GeForce RTX 3080 Eagle OC 10G, 10GB GDDR6X, 2x HDMI, 3x DP
Gigabyte GeForce RTX 3080 Gaming OC 10G, 10GB GDDR6X, 2x HDMI, 3x DP
Gigabyte GeForce RTX 3080 Turbo 10G, 10GB GDDR6X, 2x HDMI, 2x DP
Gigabyte GeForce RTX 3080 Vision OC 10G, 10GB GDDR6X, 2x HDMI, 3x DP
RTX 3090
Gigabyte GeForce RTX 3090 Eagle OC 24G, 24GB GDDR6X, 2x HDMI, 3x DP
Gigabyte GeForce RTX 3090 Gaming OC 24G, 24GB GDDR6X, 2x HDMI, 3x DP
Gigabyte GeForce RTX 3090 Turbo 24G, 24GB GDDR6X, 2x HDMI, 2x DP
Gigabyte GeForce RTX 3090 Vision OC 24G, 24GB GDDR6X, 2x HDMI, 3x DP
| Technical data cooler and pump | |
| L x W x H | 122 x 233,5 x 46 mm |
| Material cooler bottom | Nickel plated copper |
| Material cooler top | PMMA |
| Threads | 2 x G1/4“ |
| Pump type | DC-LT 2 |
| Pump speed | 2600 rpm (+/- 10%) |
| Head of delivery | 0,95 m |
| Technical radiator | |
| L x W x H | 395 x 124 x 30mm (+/- 3%) |
| Material fins, chambers & channels | copper |
| Material threads | brass |
| Material outer housing | stainless steel |
| G 1/4“ threads | 2 x for tubes (+ 1x Fillport G1/4“) |
| For fan size | 120 mm |
| Possible fan assembly | 3 x one-sided / 6 x both-sided |
| Technical data fans | |
| Speed | 0 - 2500 RPM |
| Static pressure | 3,17 mm H2O |
| Air flow rate | 119,8 m³/h |
| Fan connector | 4-Pin PWM |
| Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
| Dimensions | 120 x 120 x 25 mm |
| Max working temperature | 60 °C |
Note:
- Attention: The use of the NVLink is not possible with this AIO!
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | Alphacool |
| ПРОДУКТОВ КОД | 1020894 |
| БАРКОД | 4250197144162 |
| ГАРАНЦИЯ | 24 месеца |
| ТИП ОХЛАЖДАНЕ | Течност, Въздух, Хибрид, AIO |
| РАЗМЕР НА ВЕНТИЛАТОРА | 3x 120 x 120 x 25 mm |
| СКОРОСТ НА ВЪРТЕНЕ | Скорост на помпата: 2600 rpm (+/- 10%), Скорост на вентилаторите: 0 - 2500 RPM |
| РАЗМЕР ОХЛАДИТЕЛ (W X D X H) | Радиатор: 395 x 124 x 30mm (+/- 3%), Охладител и помпа: 122 x 233,5 x 46 mm |
| ВИДЕО ЧИПСЕТ | NVIDIA GeForce RTX |
| МОДЕЛ ВИДЕО КАРТА | RTX 3080, RTX 3080 Ti, RTX 3090 |
| ТЕГЛО | 4.7 kg |
