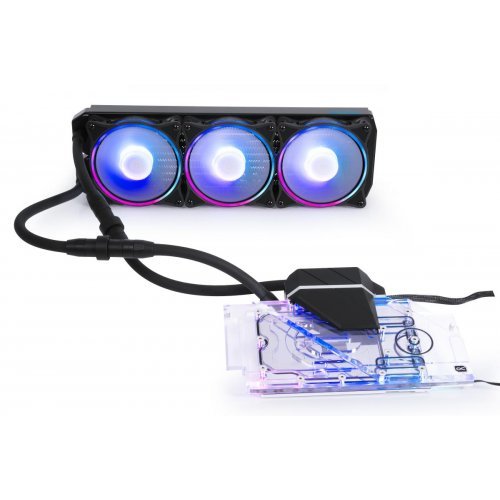

Система с водно охлаждане Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 TUF with Backplate
Compatibility list:
- ASUS TUF Gaming GeForce RTX 3080 Ti 12GB OC
- ASUS TUF Gaming GeForce RTX 3080 OC, TUF-RTX3080-O10G-GAMING
- ASUS TUF Gaming GeForce RTX 3080, TUF-RTX3080-10G-GAMING
- ASUS TUF Gaming GeForce RTX 3090, TUF-RTX3090-24G-GAMING
- ASUS TUF Gaming GeForce RTX 3090 OC, TUF-RTX3090-O24G-GAMING
| Technical data radiator | |
| L x W x H | 395 x 124 x 30mm (+/- 3%) |
| Material cooling fins, chambers & cooling channels | Copper |
| Material threads | Brass |
| Material outer housing | stainless steel |
| G 1/4“ threads | 2 x for tubes (+ 1x Fillport G1/4“) |
| For fan size | 120 mm |
| Possible fan assembly | 3 x one-sided / 6 x both-sided |
| Technical data cooler and pump | |
| L x W x H | 238 x 142,1 x 46 mm |
| Material cooler bottom | Nickel plated copper |
| Material cooler top | PMMA |
| Threads | 2 x G1/4“ |
| Pump type | DC-LT 2 |
| Pump speed | 2600 rpm (+/- 10%) |
| Head of delivery | 0,95 m |
| Maximum flow rate | 75 L/h |
| Technical data fan | |
| Speed | 0 - 2500 RPM |
| Static pressure | 3,17 mm H2O |
| Air flow rate | 119,8 m³/h |
| Bearings | Sleeve bearing |
| Fan connector | 4-Pin PWM |
| Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
| Dimensions | 120 x 120 x 25 mm |
Note:
- Attention: The use of the NVLink is not possible with this AIO!
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | Alphacool |
| ПРОДУКТОВ КОД | 1020897 |
| БАРКОД | 4250197144193 |
| ГАРАНЦИЯ | 24 месеца |
| ТИП ОХЛАЖДАНЕ | Течност, Въздух, Хибрид, AIO |
| РАЗМЕР НА ВЕНТИЛАТОРА | 3x 120 x 120 x 25 mm |
| СКОРОСТ НА ВЪРТЕНЕ | Скорост на помпата: 2600 rpm (+/- 10%), Скорост на вентилаторите: 0 - 2500 RPM |
| РАЗМЕР ОХЛАДИТЕЛ (W X D X H) | Радиатор: 395 x 124 x 30mm (+/- 3%), Охладител и помпа: 238 x 142,1 x 46 mm |
| ВИДЕО ЧИПСЕТ | NVIDIA GeForce RTX |
| МОДЕЛ ВИДЕО КАРТА | RTX 3080, RTX 3080 Ti, RTX 3090 |
| ТЕГЛО | 4.98 kg |
