Система с водно охлаждане Alphacool Eiswolf 2 AIO - 360mm Radeon RX 6800/6800XT/6900 Reference Design with Backplate
Compatibility:
Radeon RX 6800/6800XT/6900 graphics cards using the reference design
Technical data pump/cooler unit:
| L x W x H | 140 x 265 x 46 mm |
| Material cooler bottom | Nickel plated copper |
| Material cooler top | PMMA |
| Threads | 2 x G1/4“ |
| Pump type | DC-LT 2 |
| Pump speed | 2600 rpm (+/- 10%) |
| Head of delivery | 0,95 m |
| Maximum flow rate | 75 L/h |
| Voltage | 12V DC |
| Power consumption | 4W |
| MTBF | 50.000 h |

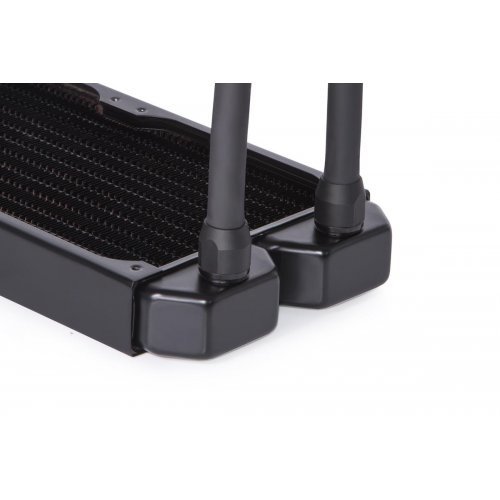

Technical data radiator:
| L x W x H | 395 x 124 x 30mm (+/- 3%) |
| Material cooling fins | Copper |
| Material chambers | Copper |
| Material cooling channels | Copper |
| Material threads | Brass |
| Material outer housing | stainless steel |
| G 1/4“ threads | 2 x for tubes (+ 1x Fillport G1/4“) |
| For fan size | 120 mm |
| Possible fan assembly | 3 x one-sided / 6 x both-sided |
Technical data fan:
| Speed | 0 - 2500 RPM |
| Static pressure | 3,17 mm H2O |
| Air flow rate | 119,8 m³/h |
| Bearings | Sleeve bearing |
| Fan connector | 4-Pin PWM |
| Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
| Dimensions | 120 x 120 x 25 mm |
| Net weight | 187 g |
| Max working temperature | 60 °C |
| Certificates | CE, FC, ROHS |
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | Alphacool |
| ПРОДУКТОВ КОД | 1020901 |
| БАРКОД | 4250197144230 |
| ГАРАНЦИЯ | 24 месеца |
| ТИП ОХЛАЖДАНЕ | Течност, Въздух, Хибрид, AIO |
| РАЗМЕР НА ВЕНТИЛАТОРА | 3x 120 x 120 x 25 mm |
| СКОРОСТ НА ВЪРТЕНЕ | Скорост на помпата: 2600 rpm (+/- 10%), Скорост на вентилаторите: 0 - 2500 RPM |
| РАЗМЕР ОХЛАДИТЕЛ (W X D X H) | Радиатор: 395 x 124 x 30mm (+/- 3%), Охладител и помпа: 140 x 265 x 46 mm |
| ВИДЕО ЧИПСЕТ | AMD Radeon |
| МОДЕЛ ВИДЕО КАРТА | RX 6800, RX 6800 XT, RX 6900 |
| ТЕГЛО | 4.235 kg |
