Arctic Cooling Arctic Fan F12 PWM PST, 12cm 300-1350rpm

Продуктов код: 2842
Охлаждане за компютри Arctic Cooling
Охлаждане за компютри > Arctic Cooling Arctic Fan F12 PWM PST AFACO-120P0-GBA01 Охлаждане за компютри > Arctic Cooling Arctic Fan F12 PWM PST AFACO-120P0-GBA01
Охлаждане за компютри Arctic Cooling
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Arctic Cooling
Модел:
Arctic Fan F12 PWM PST
Партиден номер:
AFACO-120P0-GBA01
Размер на вентилатора:
120 mm

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

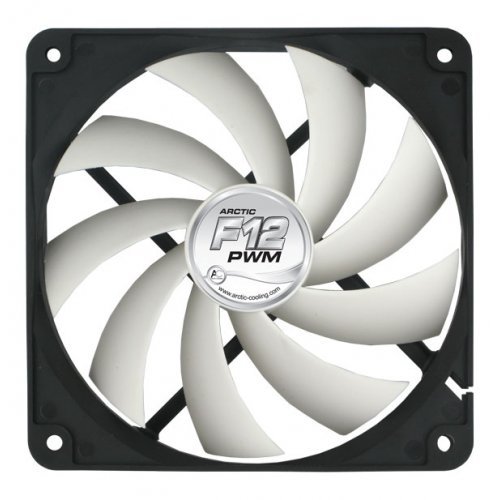

Arctic Cooling Arctic Fan F12 PWM PST

High Performance Case Fans with PWM Sharing Technology



The ARCTIC F PWM fans outerperform other 80mm/92mm/120mm fans in the market. The patented PWM Sharing Technology (PST) regulates the speed up to 5 fans via BIOS. With efficient central cooling, the ARCTIC F PWM fans offer excellent cooling and noise control performance for the system.

 Main features



•    Patented PWM Sharing Technology (PST)
•    Extremely quiet
•    High air flow and static pressure
•    Low noise impeller
•    Fluid dynamic bearing extends service
     life

























How does PST lower the temperature of the entire case?

Featuring PWM function, the ARCTIC F PWM fans run at the most necessary speed to deliver maximum cooling capacity at the lowest noise level possible. On top of that, thanks to the patented innovative PWM Sharing Technology (PST), up to 5 fans (including CPU fans) can be connected to the ARCTIC F PWM fan to share the PWM signal. The speed of all the fans in this PST system is now centrally controlled by a single PWM signal via BIOS.

As a result, when the system load increases, fan speed of all fans connected in the PST system will be increased in order to lower the case temperature. Likewise, when the load is low, these fans will operate at a relatively low speed for sufficient cooling.


In conclusion, the advantages of having PST are:



(1) Control the speed of different fans with only one PWM signal from the mainboard
(2) Case ventilation can be achieved in a quiet and efficient way. More fans run slower at low load, which deliver sufficient cooling at a much quieter operation than before
(3) Better energy saving as fans are not always at full load













PST:   PWM amplifier integrated on motor circuit
    4 pin plug for receiving power and PWM signal from motherboard
    4 pin socket for CPU cooler or second fan
    3 pin plug to send fan RPM signal to motherboard
Dimensions:   120 L x 120 W x 25 H mm
Rated Fan Speed:   300 - 1350 RPM (controlled by PWM)
Air Flow:   57 CFM / 96.8 m3/h
Noise Level:   0.5 Sone
Weight:   108 g
Bearing:   Fluid Dynamic Bearing
