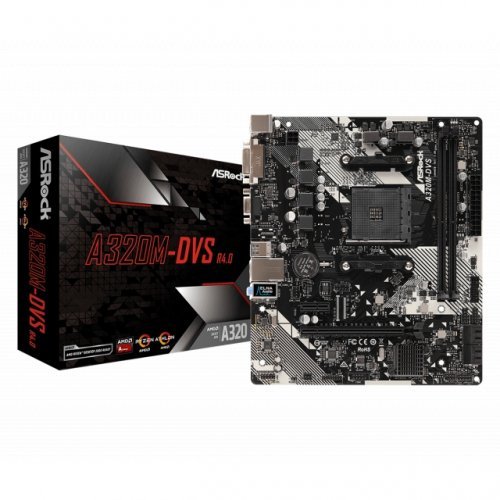

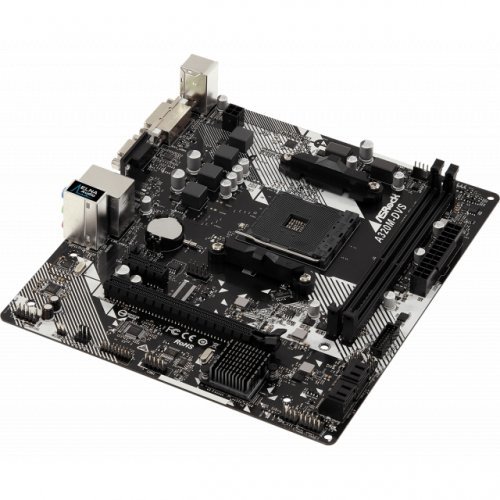

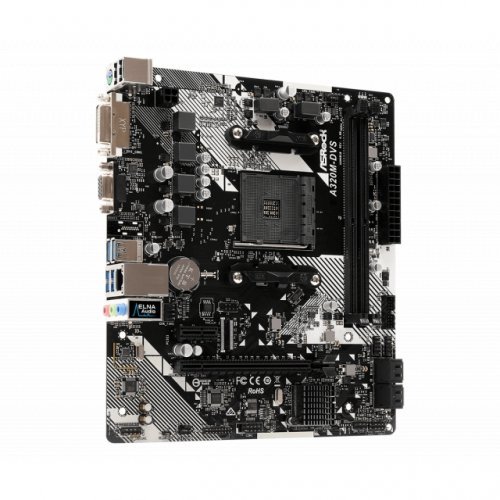

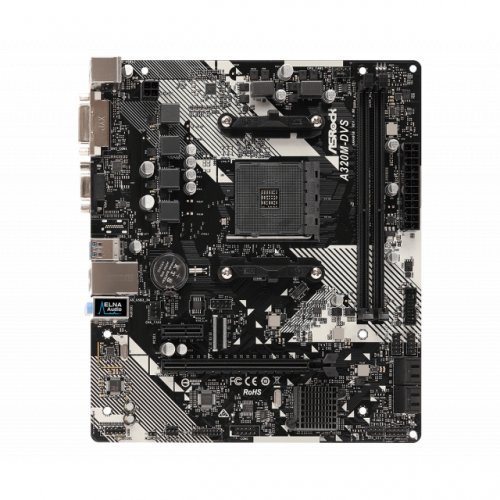

Дънна платка ASRock A320M-DVS

ASROCK A320M-DVS R4.0 /AM4
Product ID: 60757
Mnfr. Part#: A320M-DVS

• Socket: AM4

• Graphics: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - Integrated AMD Radeon™ R-Series Graphics in A-series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output options: support DVI-D and D-Sub by independent display controllers; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz; - Supports HDCP 1.4 with DVI-D Port; - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

• CPU`s supported: - Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge); - 6 Power Phase design; - Supports CPU up to 105W

• Chipset: - AMD Promontory A320

• Expansion Slots: AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*; AMD 7th A-Series APUs; - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*; AMD Ryzen series CPUs (Raven Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*; AMD Athlon series CPUs; - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*; - 1 x PCI Express 2.0 x1 Slot

• Storage: - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

• Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*; - AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory*; - Max. capacity of system memory: 32GB**; - 15? Gold Contact in DIMM Slots

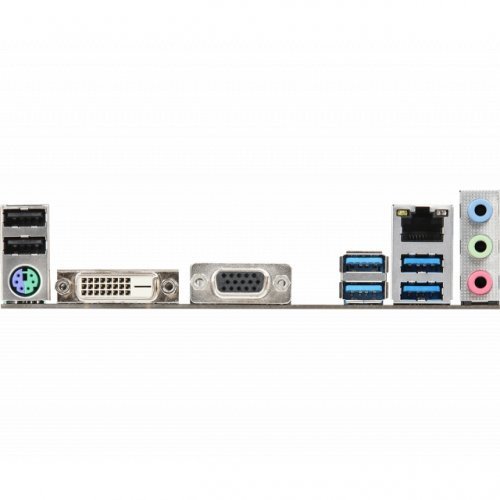

• I/O: - 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 2 x USB 2.0 Ports (Supports ESD Protection); - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone

• Connectors: - 1 x COM Port Header; - 1 x TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)**; - 1 x 24 pin ATX Power Connector; - 1 x 4 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

• Audio: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec); - Supports Surge Protection; - ELNA Audio Caps

• LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

• BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - DRAM Voltage multi-adjustment

• Form Factor: Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm; - Solid Capacitor design

• OS: - Microsoft® Windows® 10 64-bit

• Warranty: 36 Months
