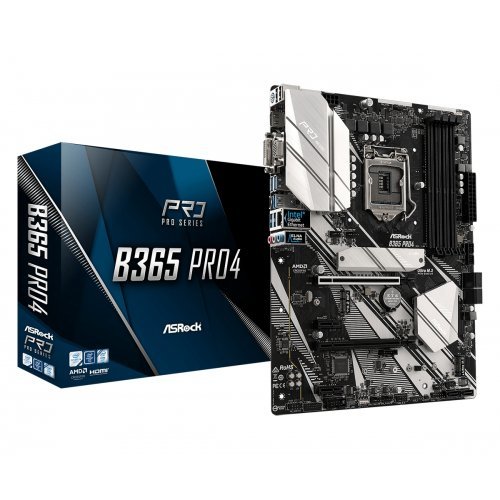

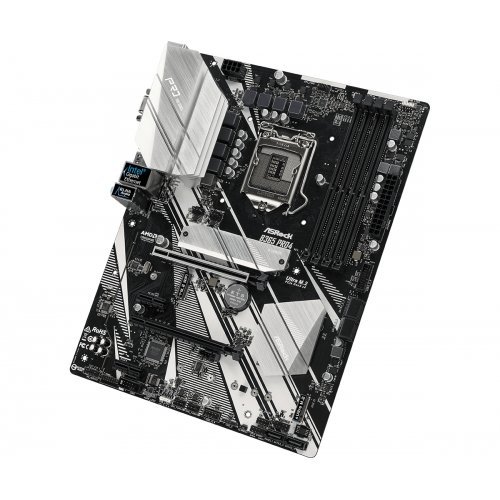

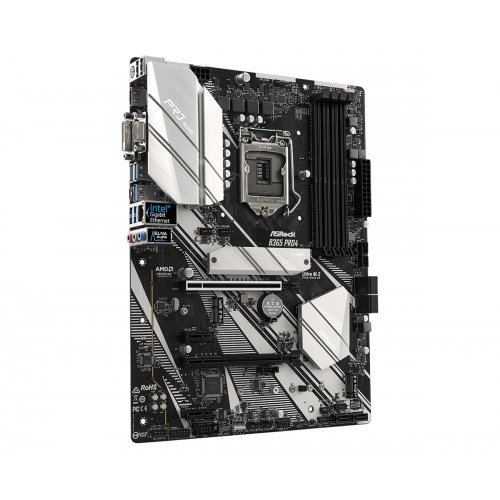

ASRock B365 Pro4, s.1151

Продуктов код: 39130
Дънна платка ASRock
Дънна платка ASRock B365 Pro4, s.1151 (умалена снимка 1) Дънна платка ASRock B365 Pro4, s.1151 (умалена снимка 2) Дънна платка ASRock B365 Pro4, s.1151 (умалена снимка 3) Дънна платка ASRock B365 Pro4, s.1151 (умалена снимка 4) Дънна платка ASRock B365 Pro4, s.1151 (умалена снимка 5)
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
B365 Pro4
Партиден номер:
B365 Pro4
Чипсет:
Intel B365
Socket:
Intel 1151
Предназначение:
Десктоп
Слотове за памет:
4
RAM- поколение:
DDR4
Видео изходи:
D-Sub / RGB / VGA, DVI-D, HDMI
Form Factor:
ATX
Интерфейс:
1x Ethernet (RJ-45), 1x M.2 2280 NVMe PCIe 3.0 x4, 1x M.2 Key E for WiFi, 1x M.2 SSD Combo (NVMe PCIe Gen3 x2 / SATA ), 2x PCI-E 3.0 x1, 2x PCI-E 3.0 x16, 3x Audio jack- 1/8"-3.5mm, 6x SATA3, 8x USB 3.1 Gen 1 (2 Front, 5 Rear, 1 Type-C), PS/2
Екстри:
AMD Quad CrossFireX(2x видео карти x2 ядра всяка), Intel Gigabit LAN
Цена с включен ДДС:
192.50 лв.

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за ASRock B365 Pro4

  • Ревюта
  • Въпроси и отговори
  • Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
  • Supports DDR4 2666
  • 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • AMD Quad CrossFireX™
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 2 Ultra M.2 (1 x PCIe Gen3 x4 & SATA3, 1 x PCIe Gen3 x4)
  • 8 USB 3.1 Gen1 (2 Front, 5 Rear, 1 Type-C)
  • Intel® Gigabit LAN



Спецификаци:



  • Уникални функции
    ASRock Super Alloy
    - Premium 50A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    ASRock Steel Slot
    ASRock Full Coverage M.2 Heatsink
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • Процесор
    - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
    - Supports CPU up to 95W
    - Digi Power design
    - 8 Power Phase design
    - Supports Intel® Turbo Boost 2.0 Technology
  • Чипсет
    - Intel® B365
  • Памет
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB*
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *Поради ограничението на операционната система, действителният размер на паметта може да е по-малък от 4 GB за резервацията за използване на системата под Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment
  • Графика
    * Intel® UHD Graphics Built-in Visuals и VGA изходите могат да бъдат поддържани само с процесори, които имат интегриран GPU.
    - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
    - DirectX 12
    - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
    - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

    *
  • Аудио
    - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - ELNA Audio Caps

    *За да конфигурирате 7.1 канално HD аудио е необходимо да ползвате Преден HD аудио модул панел и да разрешите мултиканалното аудио чрез аудио драйвера.
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Слотове
    - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
    - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

    *Поддържа NVMe SSD като дискове за начално зареждане
  • Съхранение
    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *Ако M2_1 е зает от устройство SATA от тип M.2, SATA3_0 ще бъде деактивиран.

    **Supports Intel® Optane™ Technology
    Поддържа NVMe SSD като дискове за начално зареждане
    Supports ASRock U.2 Kit
  • Конектор
    - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Power LED and Speaker Header
    - 2 x RGB LED Headers*
    - 1 x Addressable LED Header**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin)
    - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

    *Support in total up to 12V/3A, 36W LED Strip

    **Supports in total up to 5V/3A, 15W LED Strip

    ***Конекторът за вентилатора на CPU поддържа вентилатора на CPU с максимална мощност на вентилатора 1A (12W).

    ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

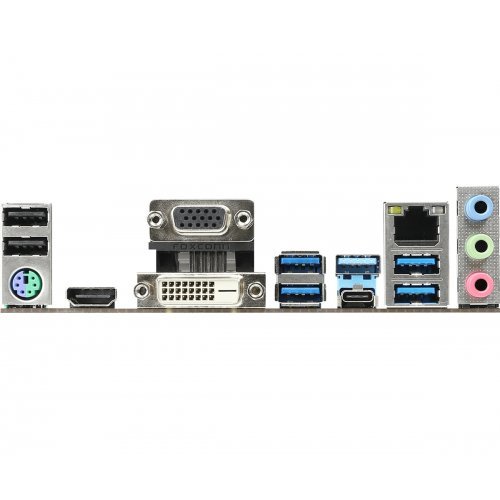

  • Заден панел с входове и изходи
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
    - 5 x USB 3.1 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Софтуер и UEFI
    Software
    - ASRock A-Tuning
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash

    *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
  • CD с поддръжка
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Аксесоари
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 3 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket
  • Хардуерен монитор
    - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST
  • Форм фактор
    - ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
    - Solid Capacitor design
  • OC
    - Microsoft® Windows® 10 64-bit
  • Сертификати
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)



https://www.asrock.com/MB/Intel/B365%20Pro4/index.asp
