Дънна платка ASRock B450 PRO4 R2.0

Продуктов код: 54802
Дънна платка ASRock
Дънна платка ASRock B450 PRO4 R2.0 Дънна платка ASRock B450 PRO4 R2.0 Дънна платка ASRock B450 PRO4 R2.0 Дънна платка ASRock B450 PRO4 R2.0 Дънна платка ASRock B450 PRO4 R2.0
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
B450 PRO4 R2.0
Партиден номер:
B450 PRO4 R2.0
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
AMD B450
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
AMD AM4
Form Factor:
ATX
Видео изходи:
D-Sub(VGA), DisplayPort, HDMI
Wi-Fi свързаност:
Не
Цена с включен ДДС:
164.77 лв.
Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА
  • Описание
  • Ревюта
  • Въпроси и отговори

ASRock B450 PRO4 R2.0

  • Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors
  • Supports DDR4 3200+ (OC)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output: HDMI, Display Port, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN

Спецификации:

  • Уникални функции
    ASRock USB 3.2 Gen2
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    - Premium Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    - 2oz Copper PCB
    ASRock Ultra M.2 (PCIe Gen3 x4)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • Процесор
    - Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors
    - Digi Power design
    - 10 Power Phase design
  • Чипсет
    - AMD Promontory B450
  • Памет
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory

    - Max. capacity of system memory: 128GB*
    - Supports Extreme Memory Profile (XMP) memory modules
    - 15μ Gold Contact in DIMM Slots

    *For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
    Please refer to below table for AMD non-XMP memory frequency support.

    Ryzen Series CPUs (Matisse):


    Ryzen Series CPUs (Pinnacle Ridge):


    Ryzen Series CPUs (Picasso):


    Ryzen Series CPUs (Summit Ridge):


    Ryzen Series CPUs (Raven Ridge):


    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Поради ограничението на операционната система, действителният размер на паметта може да е по-малък от 4 GB за резервацията за използване на системата под Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - Supports "Plug and Play"
    - ACPI 5.1 compliance wake up events
    - Supports jumperfree
    - SMBIOS 2.3 support
    - DRAM Voltage multi-adjustment
  • Графика
    - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
    - DirectX 12, Pixel Shader 5.0
    - Споделена памет с оригиналния продукт 2GB. Максималната обща памет поддържа до 16 GB.**
    - Three graphics output options: D-Sub, HDMI and DisplayPort 1.2
    - Supports Triple Monitor
    - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
    - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    - Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports
    - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

    *Действителната поддръжка може да варира в зависимост от процесора

    **Максималната споделена памет 16 GB изисква инсталирана 32GB системна памет.
  • Аудио
    - 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec)
    - Supports Surge Protection
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111H
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Слотове
    AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
    - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
    AMD Ryzen series CPUs (Picasso, Raven Ridge)
    - 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)*
    AMD Athlon series CPUs
    - 2 x PCI Express 3.0 x16 Slots (PCIE2: x4 mode; PCIE4: x2 mode)*

    - 4 x PCI Express 2.0 x1 Slots
    - Supports AMD Quad CrossFireX™ and CrossFireX™**


    *Поддържа NVMe SSD като дискове за начално зареждане
    Ако M2_1 слота е зает, PCIE4 ще бъде деактивиран.

    **Тази функция се поддържа само с процесори от серията Ryzen (Matisse, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge).
  • Съхранение
    - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
    - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**
    - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

    *M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.

    **Ако M2_1 слота е зает, PCIE4 ще бъде деактивиран.
    Поддържа NVMe SSD като дискове за начално зареждане
    Supports ASRock U.2 Kit
  • Конектор
    - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 1 x Addressable LED Header**
    - 1 x AMD Fan LED Header***
    - 1 x CPU Fan Connector (4-pin)****
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *Поддържа общо до 12V / 3A, 36W LED Strip

    **Supports in total up to 5V/3A, 15W LED Strip

    *** Конектора на AMD Вентилатора за LED поддържа LED ленти с максимално натоварване 3А (36W) и дължина до 2,5M.

    ****Конекторът за вентилатора на CPU поддържа вентилатора на CPU с максимална мощност на вентилатора 1A (12W).

    *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

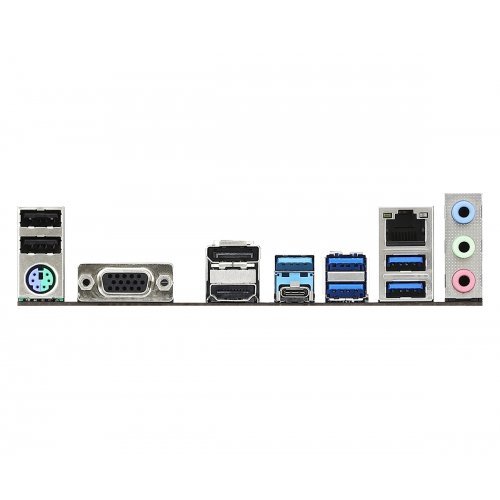

  • Заден панел с входове и изходи
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.2
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
    - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Софтуер и UEFI
    Software
    - ASRock A-Tuning
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock Full HD UEFI
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
  • CD с поддръжка
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Аксесоари
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 2 x Screws for M.2 Sockets
  • Хардуерен монитор
    - Temperature Sensing: CPU, MB
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, Vcore
  • Форм фактор
    - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
    - Solid Capacitor design
  • OC
    - Microsoft® Windows® 10 64-bit
  • Сертификати
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)

https://www.asrock.com/MB/AMD/B450%20Pro4%20R2.0/index.bg.asp
