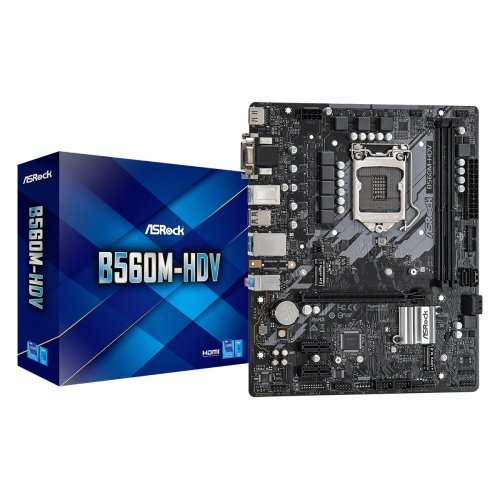

Дънна платка ASRock B560M-HDV R3.0

Продуктов код: 79149
Дънна платка ASRock
Дънна платка ASRock B560M-HDV R3.0 Дънна платка ASRock B560M-HDV R3.0 Дънна платка ASRock B560M-HDV R3.0 Дънна платка ASRock B560M-HDV R3.0
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
-
Партиден номер:
B560M-HDV R3.0
Гаранция:
36 месеца
Предназначение:
Десктоп
Чипсет:
Intel B560
Брой слотове за памет:
2
RAM - поколение:
DDR4
Socket:
Intel LGA1200
Form Factor:
mATX
Видео изходи:
D-Sub(VGA), DVI, HDMI
Wi-Fi свързаност:
Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

ASRock B560M-HDV R3.0

Характеристики

  • Graphics:
    11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics;
    Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1;
    Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc;
    Three graphics output options: D-Sub, DVI-D and HDMI;
    Supports Triple Monitor;
    Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz;
    Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz;
    Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz;
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required);
    Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports
  • CPU's supported:
    - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200);
    - Digi Power design;
    - 6 Power Phase design;
    - Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset: - Intel® B560
  • Expansion Slots:
    11th Gen Intel® Core™ Processors;
    - 1 x PCI Express 4.0 x16 Slot*;
    10th Gen Intel® Core™ Processors;
    - 1 x PCI Express 3.0 x16 Slot*;
    - 2 x PCI Express 3.0 x1 Slots
  • Storage:
    - 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug;
    - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)*;
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  • Memory type:
    - Dual Channel DDR4 Memory Technology;
    - 2 x DDR4 DIMM Slots;
    - 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)*;
    - 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*;
    - Supports ECC UDIMM memory modules (operate in non-ECC mode);
    - Max. capacity of system memory: 64GB**;
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
  • I/O:
    - 1 x PS/2 Mouse/Keyboard Port;
    - 1 x D-Sub Port;
    - 1 x DVI-D Port;
    - 1 x HDMI Port;
    - 2 x USB 2.0 Ports (Supports ESD Protection);
    - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection);
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED);
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Connectors:
    - 1 x COM Port Header;
    - 1 x SPI TPM Header;
    - 1 x Chassis Intrusion and Speaker Header;
    - 1 x CPU Fan Connector (4-pin)*;
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**;
    - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***;
    - 1 x 24 pin ATX Power Connector;
    - 1 x 8 pin 12V Power Connector;
    - 1 x Front Panel Audio Connector;
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection);
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protec
  • Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection
  • LAN:
    - Gigabit LAN 10/100/1000 Mb/s;
    - Giga PHY Intel® I219V;
    - Supports Wake-On-LAN;
    - Supports Lightning/ESD Protection;
    - Supports Energy Efficient Ethernet 802.3az;
    - Supports PXE
  • BIOS:
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support;
    - ACPI 6.0 Compliant wake up events;
    - SMBIOS 2.7 Support;
    - CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCST, VCCSA Voltage Multi-adjustment
  • Form Factor: - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm - Solid Capacitor design
  • OS: - Microsoft® Windows® 10 64-bit
