Дънна платка ASRock B660M PRO RS

Продуктов код: 65368
Дънна платка ASRock
Дънна платка ASRock B660M PRO RS Дънна платка ASRock B660M PRO RS Дънна платка ASRock B660M PRO RS
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
B660M PRO RS
Партиден номер:
B660M PRO RS
Гаранция:
24 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel B660
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1700
Form Factor:
mATX
Видео изходи:
HDMI
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

ASRock B660M PRO RS

Main Board Desktop - Processor
Chipset Intel B660
Supports Central Processor Unit Intel 12th Gen Processors
CPU Socket Standard Socket 1700
Architecture Features Intel Turbo Boost Max Technology 3.0
Intel Hybrid Technology
CPU Maximum Quantity Supports 1
Main Board Desktop - Memory
Memory Type DDR4 SDRAM
Memory Form Factor DIMM 288-pin
Maximum Installable System Memory Storage Capacity 128 GB
Memory Slot Total Quantity 4
Provides Error Checking Method non-ECC
Memory Features Two DDR Channels
Unbuffered
XMP 2.0
Controller
Support Wi-Fi Controller:
1 x M.2 (Key E)
Integrated Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Main Board Desktop - Audio Output
Audio Integrated yes
Device Location Integrated
Audio Chipset Realtek ALC897
Audio Output Mode 7.1 Channel Surround
Compliant Audio Standards High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated yes
LAN Chipset Intel i219V
Data Link Protocol Supports Gigabit Ethernet/Fast Ethernet/Ethernet
Slot Provided
PCI Express 4.0 x16 1
PCI Express 3.0 x16 1
PCI Express 3.0 x1 1

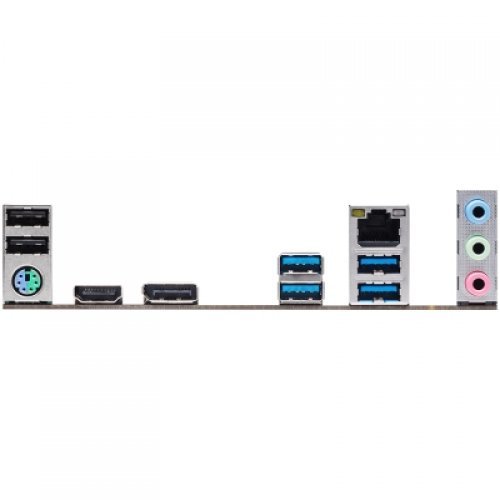

Interface Provided
PS/2 1
USB 2.0 2 (USB 2.0 (type A))
USB 3.2 Gen 1 4 (USB 3.2 (type A))
HDMI 1 (HDMI (Type A))
DisplayPort 1
LAN 1 (RJ-45)
Audio Interface 3 (3.5-mm minijack)
Main Board Desktop - Mainboard Features
BIOS Type AMI
BIOS Features SMBIOS 2.7 Support
PXE boot
ACPI 6.0 Compliance Wake Up Events
128Mb AMI UEFI Legal BIOS with GUI Support
Wake up/Sleep Wake on LAN
Hardware Monitoring Chassis Fan Tachometer
CPU Fan Tachometer
CPU Voltage
CPU Fan multi-speed control
Chassis Fan multi-speed control
Power Connectors Type 24+8 pin
Mainboard Features AMD CrossFire technology
Main Board Desktop - Software
Supported Operating System Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
Miscellaneous
Cable Included 2 x SATA cables
Included Accessories I/O Shield
CD, Software
Quick Start Guide
Screws
Main Board Desktop - Dimensions&Weight
Form Factor Micro ATX
Height (mm) 244 mm
Width (mm) 244 mm
Warranty
Warranty Products Returnable Yes
Warranty Validation Criteria Serial Number
Logistic
Pack Weight Brutto (kg) 0.35 kg
Pack Weight Netto (kg) 0.3 kg
Pieces in pack 1
Box Weight Brutto (kg) 0.35 kg
Retail Packaging Net Weight Carton 0.3 kg
Retail Packaging Net Weight Plastic 0.3 kg
Packs in Box 1
Package Type Retail
