ASRock H110M-DGS R3.0, LGA 1151

Продуктов код: 26668
Дънна платка ASRock
Дънна платка ASRock H110M-DGS R3.0, LGA 1151 (умалена снимка 1) Дънна платка ASRock H110M-DGS R3.0, LGA 1151 (умалена снимка 2) Дънна платка ASRock H110M-DGS R3.0, LGA 1151 (умалена снимка 3) Дънна платка ASRock H110M-DGS R3.0, LGA 1151 (умалена снимка 4) Дънна платка ASRock H110M-DGS R3.0, LGA 1151 (умалена снимка 5)
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
H110M-DGS R3.0
Партиден номер:
H110M-DGS_R3.0_3Y
Гаранция:
36 месеца
Чипсет:
Intel H110
Socket:
Intel 1151
Предназначение:
Десктоп
Слотове за памет:
2
RAM- поколение:
DDR4
Видео изходи:
DVI
Form Factor:
Micro ATX
Интерфейс:
PS/2, USB 2.0, USB 3.0
Цена с включен ДДС:
100.90 лв.

Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за ASRock H110M-DGS R3.0

  • Ревюта
  • Въпроси и отговори
General
Unique Feature ASRock Super Alloy
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU - Supports 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
- 4 Power Phase design
- Supports CPU up to 95W
- Supports Intel® Turbo Boost 2.0 Technology
Chipset - Intel® H110
Memory - Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 64Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.0V Voltage Multi-adjustment
 Audio, Video and Networking
Graphics - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530/630
- Pixel Shader 5.0, DirectX 12
- Max. shared memory 1024MB**
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports Accelerated Media Codecs: HEVC, VP8, VP9
- Supports HDCP with DVI-D Port
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111C/RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports PXE
 Expansion / Connectivity
Slots - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 1 x PCI Express 2.0 x1 Slot

*Supports NVMe SSD as boot disks
Storage - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector - 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)*
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

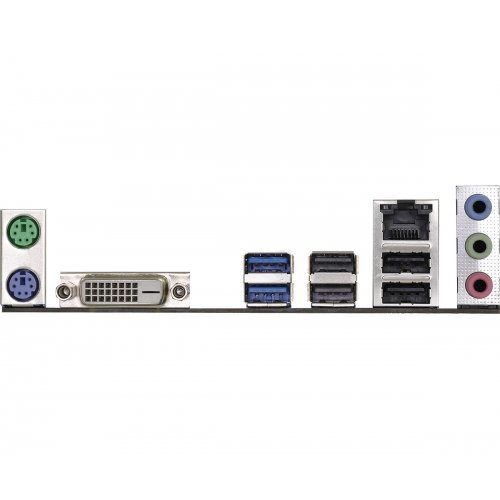

Rear Panel I/O - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x DVI-D Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

*ACPI wake-up function is supported on USB01 ports only.
 Other Features / Miscellaneous
Software and BIOS Software
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Fast Boot (Fast Boot, Restart to UEFI)
UEFI
- ASRock EZ Mode
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI Tech Service
- ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor - CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
- Solid Capacitor design
OS - Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock's website for details.
Certifications - FCC, CE
