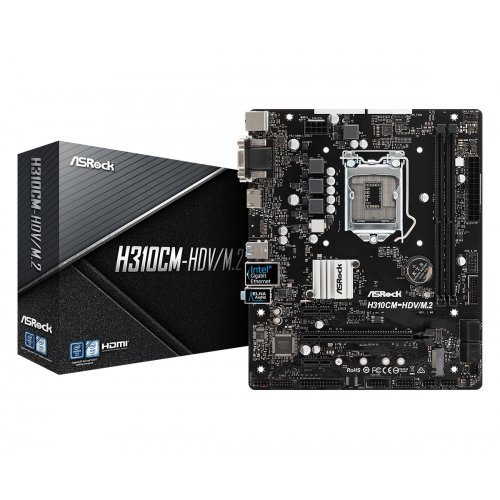

Дънна платка ASRock H310CM-HDV/M2

ASROCK H310CM-HDV/M.2

Mnfr. Part#: H310CM-HDV/M2

• Socket: 1151

• Graphics: - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics; - DirectX 12; - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only); - Three graphics output options: D-Sub, DVI-D and HDMI**; - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required); - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

• CPU`s supported: Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151); - Supports CPU up to 95W; - 4 Power Phase design; - Supports Intel® Turbo Boost 2.0 Technology

• Chipset: - Intel® H310

• Expansion Slots: - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*; - 2 x PCI Express 2.0 x1 Slots

• Storage: - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*; - 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)**

• Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory; - Max. capacity of system memory: 32GB*; - Supports Intel® Extreme Memory Profile (XMP) 2.0; - 15? Gold Contact in DIMM Slots

• I/O: - 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 4 x USB 2.0 Ports (Supports ESD Protection); - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone

• Connectors: 1 x Print Port Header; - 1 x COM Port Header; - 1 x TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)***

• Audio: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*; - Supports Surge Protection; - ELNA Audio Caps

• LAN: - Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I219V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

• BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment

• Form Factor: - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm; - Solid Capacitor design

• OS: - Microsoft® Windows® 10 64-bit

• Warranty: 36 Months
