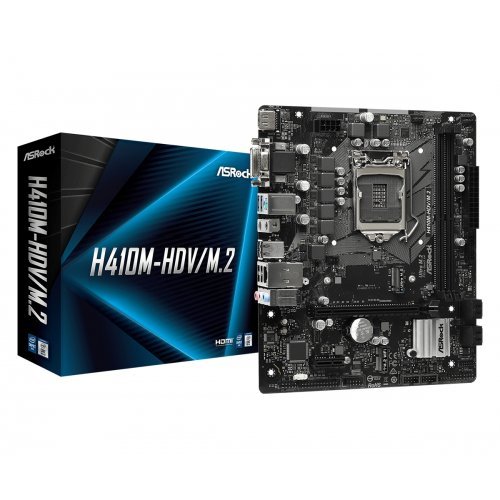

Дънна платка ASRock H410M-HDV/M.2

Manufacturer : ASROCK

Subcategory

PartNo1 H410M-HDV/M.2

PartNo2 H410M-HDV/M.2

Search String ASROCK B410 2xDDR4 4xSATA3 RAID HDMI DVI VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1

ASROCK H410M-HDV/M.2
Product ID: 63121
Mnfr. Part#: H410M-HDV/M.2

• Graphics: - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**; - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1; - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc; - Three graphics output options: D-Sub, DVI-D and HDMI***; - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required); - Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

• CPU`s supported: - Supports 10th Gen Intel® Core™ Processors (Socket 1200); - Digi Power design; - 7 Power Phase design; - Supports Intel® Turbo Boost Max 3.0 Technology

• Chipset: - Intel® H410

• Expansion Slots: - 1 x PCI Express 3.0 x16 Slot*; - 1 x PCI Express 3.0 x1 Slot; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

• Storage: - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.; - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

• Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB**; - Supports Intel® Extreme Memory Profile (XMP) 2.0; - 15? Gold Contact in DIMM Slots

• I/O: - 1 x Antenna Bracket; - 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 4 x USB 2.0 Ports (Supports ESD Protection); - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone

• Connectors: - 1 x Print Port Header; - 1 x COM Port Header; - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

• Audio: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec); - Supports Surge Protection

• LAN: - Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I219V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

• BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment

• Form Factor: - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm; - Solid Capacitor design

• OS: - Microsoft® Windows® 10 64-bit

https://www.asrock.com/MB/Intel/H410M-HDVM.2/index.asp#Specification
