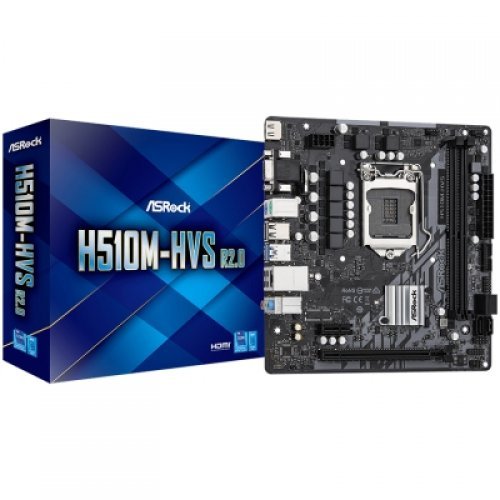

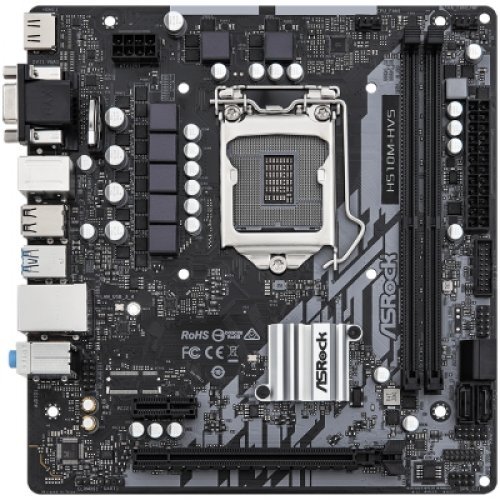

Дънна платка ASRock H510M-HVS R2.0

Продуктов код: 72286
Дънна платка ASRock
Дънна платка ASRock H510 H510M-HVS R2.0 Дънна платка ASRock H510 H510M-HVS R2.0 Дънна платка ASRock H510 H510M-HVS R2.0
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
H510
Партиден номер:
H510M-HVS R2.0
Гаранция:
36 месеца
Предназначение:
Десктоп
Чипсет:
Intel H510
Брой слотове за памет:
2
RAM - поколение:
DDR4
Socket:
Intel LGA1200
Form Factor:
mATX
Видео изходи:
D-Sub(VGA), HDMI
Wi-Fi свързаност:
Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

ASRock H510

Main Board Desktop - Processor
Chipset Intel H510
Supports Central Processor Unit Intel 10th Gen Processors
Intel 11th Gen Processors
CPU Socket Standard Socket 1200
Architecture Features Intel® Rapid Storage Technology enterprise
Intel Turbo Boost Max Technology 3.0
CPU Maximum Quantity Supports 1
Main Board Desktop - Memory
Memory Type DDR4 SDRAM
Memory Form Factor DIMM 288-pin
Memory Speed 2133MHz(PC3-17066)
2400MHz(PC4-19200)
2666MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity 64 GB
Memory Slot Total Quantity 2
Provides Error Checking Method non-ECC
Memory Features Two DDR Channels
Unbuffered
XMP 2.0
Controller
Integrated Storage Controller:
SATA III-600 (4)
Main Board Desktop - Audio Output
Audio Integrated yes
Device Location Integrated
Audio Chipset Realtek ALC887/ALC897
Audio Output Mode 7.1 Channel Surround
Compliant Audio Standards High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated yes
LAN Chipset Realtek RTL8111H
Data Link Protocol Supports Gigabit Ethernet/Fast Ethernet/Ethernet
Slot Provided
PCI Express 4.0 x16 1
PCI Express 3.0 x1 1

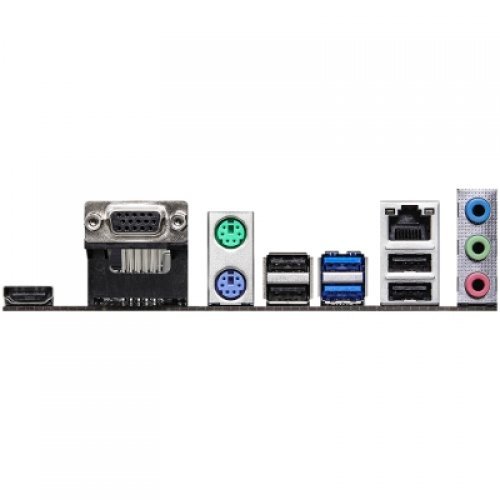

Interface Provided
PS/2 2
HDMI 1 (HDMI (Type A))
VGA 1 (15-pin D-sub)
USB 3.2 Gen 1 2 (USB 3.2 (type A))
USB 2.0 4 (USB 2.0 (type A))
LAN 1 (RJ-45)
Audio Interface 3 (3.5-mm minijack)
Main Board Desktop - Mainboard Features
BIOS Type AMI
BIOS Features Multi-language BIOS
SMBIOS 2.7 Support
PXE boot
128Mb AMI UEFI Legal BIOS with GUI Support
ACPI 6.0 Support
Wake up/Sleep Wake on LAN
Hardware Monitoring Chassis Fan Tachometer
CPU Fan Tachometer
System Voltage
Power Connectors Type 24+8 pin
Mainboard Features NVMe Support
Main Board Desktop - Software
Supported Operating System Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
Miscellaneous
Cable Included 2 x SATA Data Cables
Included Accessories I/O Shield
CD, Software
Quick Start Guide
Main Board Desktop - Dimensions&Weight
Form Factor Micro ATX
Height (mm) 188 mm
Width (mm) 197 mm
Warranty
Warranty Products Returnable Yes
Warranty Validation Criteria Serial Number
Logistic
Pack Weight Brutto (kg) 0.15 kg
Pack Weight Netto (kg) 0.1 kg
Pieces in pack 1
Box Weight Brutto (kg) 0.15 kg
Retail Packaging Net Weight Carton 0.1 kg
Retail Packaging Net Weight Plastic 0.1 kg
Packs in Box 1
Package Type Retail
