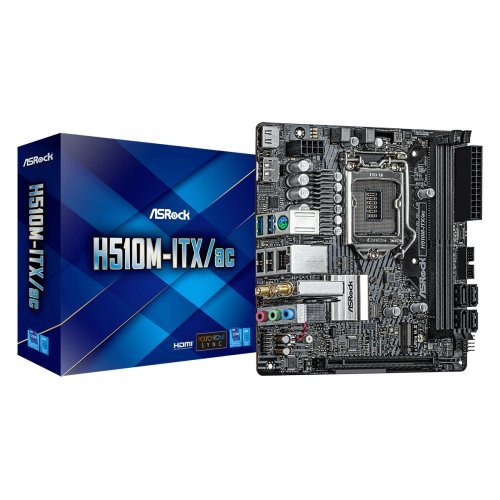

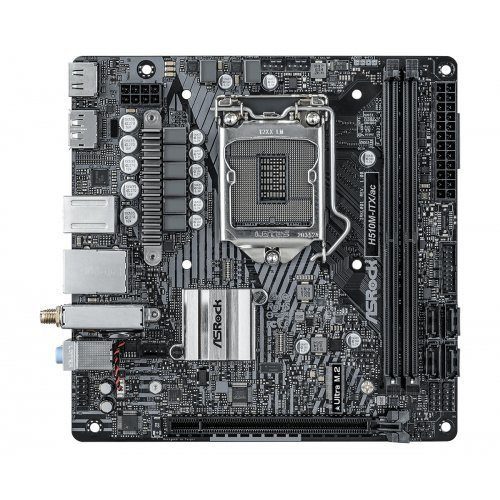

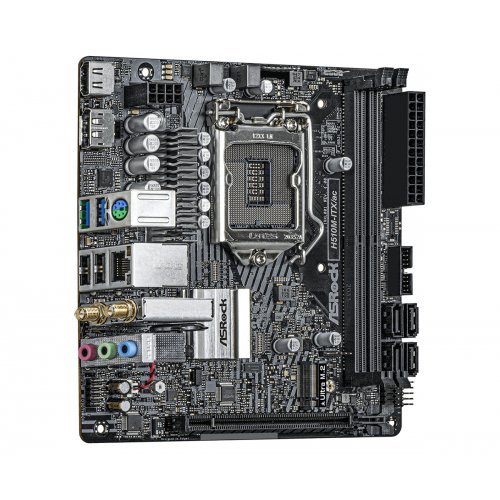

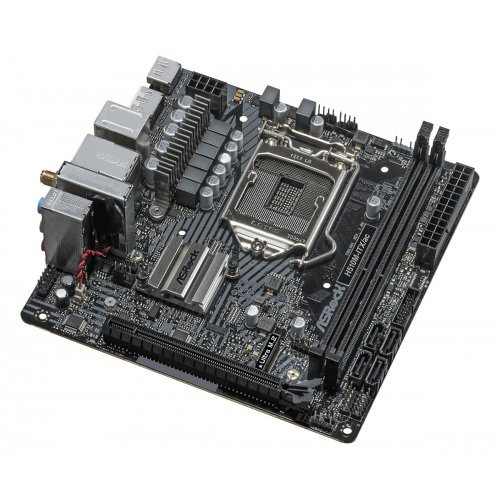

Дънна платка ASRock H510M-ITX/ac

• Graphics: - 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics; - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required); - Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports

• CPU`s supported: - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200); - Digi Power design; - 6 Power Phase design; - Supports Intel® Turbo Boost Max 3.0 Technology

• Chipset: - Intel® H510

• Expansion Slots: 11th Gen Intel® Core™ Processors; - 1 x PCI Express 4.0 x16 Slot*; 10th Gen Intel® Core™ Processors; - 1 x PCI Express 3.0 x16 Slot*; - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)

• Storage: - 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*; - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

• Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - 11th Gen Intel® Core™ Processors support DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*; - 10th Gen Intel® Core™ Processors support DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB**; - Supports Intel® Extreme Memory Profile (XMP) 2.0

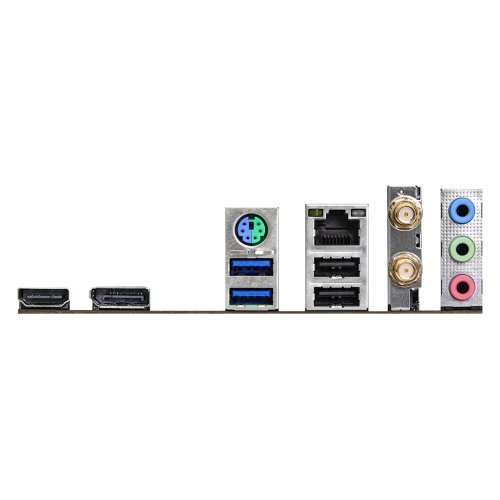

• I/O: - 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 2 x USB 2.0 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone

• Connectors: - 1 x Chassis Intrusion Header; - 1 x Addressable LED Header*; - 1 x CPU Fan Connector (4-pin)**; - 1 x Chassis Fan Connector (4-pin)***; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

• Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Supports Surge Protection

• LAN: - Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I219V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE]

• BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU, CPU GT, VCCSA, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST Voltage Multi-adjustment

• Form Factor: - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; - Solid Capacitor design

• OS: - Microsoft® Windows® 10 64-bit

• Other: - Intel® 802.11ac WiFi Module; - Supports IEEE 802.11a/b/g/n/ac; - Supports Dual-Band (2.4/5 GHz); - Supports high speed wireless connections up to 433Mbps; - Supports Bluetooth 4.2 / 3.0 + High speed class II
