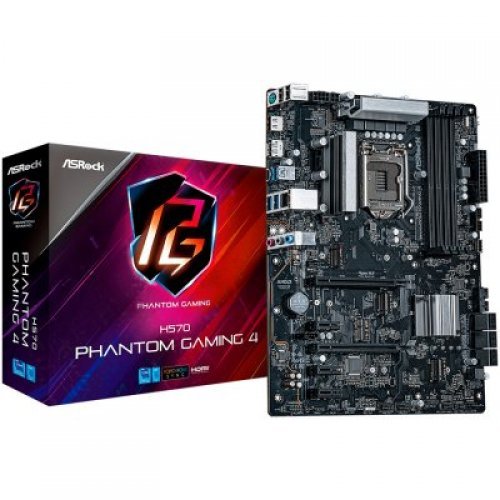

Дънна платка ASRock H570 PHANTOM GAMING 4

Продуктов код: 54751
Дънна платка ASRock
Дънна платка ASRock H570 PHANTOM GAMING 4 Дънна платка ASRock H570 PHANTOM GAMING 4
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
H570 PHANTOM GAMING 4
Партиден номер:
H570 PHANTOM GAMING 4
Гаранция:
24 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel H570
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1200
Form Factor:
ATX
Видео изходи:
HDMI
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

ASRock H570 PHANTOM GAMING 4

Main Board Desktop - Processor
Chipset Intel H570
Supports Central Processor Unit Intel 10th Gen Processors
Intel 11th Gen Processors
CPU Socket Standard Socket 1200
Architecture Features Intel Turbo Boost Max Technology 3.0
CPU Maximum Quantity Supports 1
Main Board Desktop - Memory
Memory Type DDR4 SDRAM
Memory Form Factor DIMM 288-pin
Memory Speed 2666MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity 128 GB
Memory Slot Total Quantity 4
Provides Error Checking Method non-ECC
Memory Features Two DDR Channels
Unbuffered
XMP 2.0
Controller
Integrated Storage Controller:
Supports: Level 0, Level 1, Level 5, Level 10
SATA III-600 (6)
Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
PCIe 3.0 x4/SATA (2 x M.2 (Key M))
Support Wi-Fi Controller:
1 x M.2 (Key E)
Main Board Desktop - Audio Output
Audio Integrated yes
Device Location Integrated
Audio Chipset Realtek ALC897
Audio Output Mode 7.1 Channel Surround
Compliant Audio Standards High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated yes
LAN Chipset Intel i219V
Data Link Protocol Supports Gigabit Ethernet/Fast Ethernet/Ethernet
Slot Provided
PCI Express 4.0 x16 1
PCI Express 3.0 x16 1
PCI Express 3.0 x1 1
Interface Provided
HDMI 1 (HDMI (Type A))
PS/2 1
DisplayPort 1
USB 3.2 Gen 2 1 (USB 3.2 (type A)); 1 (USB 3.2 (type C))
USB 3.2 Gen 1 2 (USB 3.2 (type A))
USB 2.0 2 (USB 2.0 (type A))
LAN 1 (RJ-45)
Audio Interface 3 (3.5-mm minijack)
Main Board Desktop - Mainboard Features
BIOS Type AMI
BIOS Features SMBIOS 2.7 Support
128Mb AMI UEFI Legal BIOS with GUI Support
ACPI 6.0 Support
Wake up/Sleep Wake on LAN
Hardware Monitoring Chassis Fan Tachometer
CPU Fan Tachometer
CPU Temperature
CPU Voltage
System Temperature
System Voltage
Power Connectors Type 24+8+4 pin
Main Board Desktop - Software
Supported Operating System Microsoft Windows 10 License
Miscellaneous
Cable Included 2 x SATA 6Gb/s Cables
Included Accessories I/O Shield
Quick Start Guide
CD User Manual
4 x Screws for M.2 Sockets
Main Board Desktop - Dimensions&Weight
Form Factor ATX
Height (mm) 244 mm
Width (mm) 305 mm
Warranty
Warranty Products Returnable Yes
Warranty Validation Criteria Serial Number
Logistic
Pack Weight Brutto (kg) 0.15 kg
Pack Weight Netto (kg) 0.1 kg
Pieces in pack 1
Box Weight Brutto (kg) 0.15 kg
Retail Packaging Net Weight Carton 0.1 kg
Retail Packaging Net Weight Plastic 0.1 kg
Packs in Box 1
Package Type Retail
