ASRock
Дънна платка ASRock H670 PG Riptide, LGA 1700, Intel H670, 4x DDR4, ATX

Дънна платка ASRock H670 PG Riptide, LGA 1700, Intel H670, 4x DDR4, ATX

Name: Дънна платка ASRock H670 PG Riptide, LGA 1700, Intel H670, 4x DDR4, ATX
Brand: ASRock
SKU: H670 PG Riptide
Availability: OutOfStock

Продуктов код: 65347

Дънна платка ASRock H670 PG Riptide H670 PG RIPTIDE (снимка 1)

Дънна платка ASRock H670 PG Riptide H670 PG RIPTIDE

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

ASRock

Модел:

H670 PG Riptide

Партиден номер:

H670 PG RIPTIDE

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel H670

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1700

Form Factor:

ATX

Видео изходи:

HDMI

Wi-Fi свързаност:

Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

ASRock H670 PG Riptide

Main Board Desktop - Processor
Chipset	Intel H670
Supports Central Processor Unit	Intel 12th Gen Processors
CPU Socket Standard	Socket 1700
Architecture Features	Intel Turbo Boost Max Technology 3.0 Intel Hybrid Technology
CPU Maximum Quantity Supports	1
Main Board Desktop - Memory
Memory Type	DDR4 SDRAM
Memory Form Factor	DIMM 288-pin
Maximum Installable System Memory Storage Capacity	128 GB
Memory Slot Total Quantity	4
Provides Error Checking Method	non-ECC
Memory Features	Two DDR Channels Unbuffered XMP 2.0
Controller
Support	Wi-Fi Controller: 1 x M.2 (Key E)
Integrated	Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) Storage Controller: Supports: Level 0, Level 1, Level 5 PCI Express 4.0 x4 (2 x M.2 (Key M))
Main Board Desktop - Audio Output
Audio Integrated	yes
Device Location	Integrated
Audio Chipset	Realtek ALC897
Audio Output Mode	7.1 Channel Surround
Compliant Audio Standards	High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated	yes
LAN Chipset	Intel i219V
Data Link Protocol Supports	Gigabit Ethernet/Fast Ethernet/Ethernet
Slot Provided
PCI Express 5.0 x16	1
PCI Express 4.0 x16	1
PCI Express 3.0 x1	3

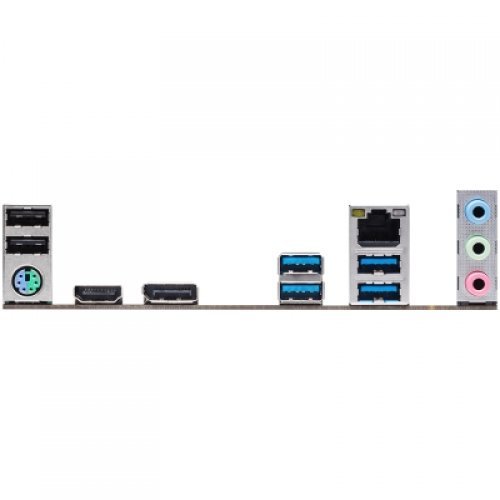

Interface Provided
PS/2	1
HDMI	1 (HDMI (Type A))
DisplayPort	1
USB 3.2 Gen 2	1 (USB 3.2 (type A)); 1 (USB 3.2 (type C))
USB 3.2 Gen 1	4 (USB 3.2 (type A))
USB 2.0	2 (USB 2.0 (type A))
LAN	1 (RJ-45)
Audio Interface	3 (3.5-mm minijack)
Main Board Desktop - Mainboard Features
BIOS Type	AMI
BIOS Features	SMBIOS 2.7 Support PXE boot ACPI 6.0 Compliance Wake Up Events 128Mb AMI UEFI Legal BIOS with GUI Support
Hardware Monitoring	Chassis Fan Tachometer CPU Fan Tachometer CPU Voltage CPU Fan multi-speed control Chassis Fan multi-speed control
Power Connectors Type	24+8+4 pin
Mainboard Features	AMD CrossFire technology
Main Board Desktop - Software
Supported Operating System	Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
Miscellaneous
Cable Included	2 x SATA cables
Included Accessories	I/O Shield CD, Software Quick Start Guide Screws
Main Board Desktop - Dimensions&Weight
Form Factor	ATX
Height (mm)	244 mm
Width (mm)	305 mm
Warranty
Warranty Products Returnable	Yes
Warranty Validation Criteria	Serial Number
Logistic
Pack Weight Brutto (kg)	0.35 kg
Pack Weight Netto (kg)	0.3 kg
Pieces in pack	1
Box Weight Brutto (kg)	0.35 kg
Retail Packaging Net Weight Carton	0.3 kg
Retail Packaging Net Weight Plastic	0.3 kg
Packs in Box	1
Package Type	Retail
