Дънна платка ASRock OC FORMULA X299_OC_FORMULA_3Y

Дънна платка ASRock OC FORMULA X299_OC_FORMULA_3Y

Name: Дънна платка ASRock OC FORMULA X299_OC_FORMULA_3Y
Brand: ASRock
SKU: OC FORMULA
Availability: OutOfStock

Продуктов код: 50292

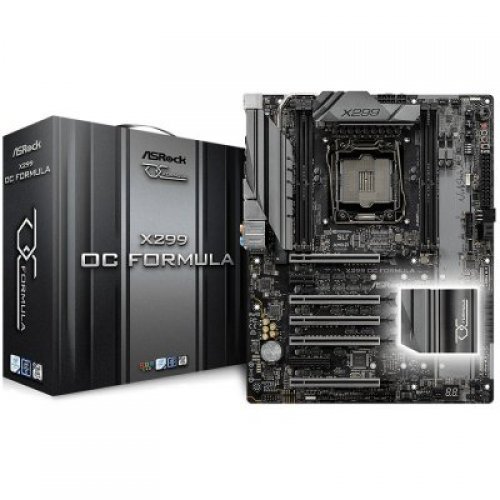

Дънна платка ASRock OC FORMULA X299_OC_FORMULA_3Y (снимка 1)

Дънна платка ASRock OC FORMULA X299_OC_FORMULA_3Y

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

ASRock

Модел:

OC FORMULA

Партиден номер:

X299_OC_FORMULA_3Y

Гаранция:

36 месеца

Предназначение:

Десктоп

Чипсет:

Intel X299

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA2066

Form Factor:

ATX

Видео изходи:

не поддържа самостоятелно вградено видео

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

ASRock OC FORMULA

Main Board Desktop - Processor
Chipset	Intel X299
Supports Central Processor Unit	Intel Core X series
CPU Socket Standard	Socket 2066
Architecture Features	Intel Turbo Boost Technology 2.0 Intel Turbo Boost Max Technology 3.0
CPU Maximum Quantity Supports	1
Main Board Desktop - Memory
Memory Type	DDR4 SDRAM
Memory Form Factor	DIMM 288-pin
Memory Speed	2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300)
Maximum Installable System Memory Storage Capacity	64 GB
Memory Slot Total Quantity	4
Provides Error Checking Method	non-ECC
Memory Features	Unbuffered Four DDR Channels XMP 2.0
Controller
Integrated	Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (8) Storage Controller: PCIe 3.0 x4/SATA (3 x M.2 (Key M))
Main Board Desktop - Audio Output
Audio Integrated	yes
Device Location	Integrated
Audio Chipset	Realtek ALC1220
Audio Output Mode	7.1 Channel Surround
Compliant Audio Standards	DTS High Definition Audio Premium Blu-ray audio support Purity Sound 4
Main Board Desktop - Networking Specifications
LAN Integrated	yes
LAN Chipset	Intel i219V
Data Link Protocol Supports	Gigabit Ethernet/Fast Ethernet/Ethernet
LAN Architecture	Integrated: Gigabit Ethernet/Fast Ethernet/Ethernet (Intel i211AT)
Slot Provided
PCI Express 3.0 x16	5
PCI Express 3.0 x4	1
PCI Express 2.0 x1	1
Interface Provided
PS/2	1
S/PDIF-out Optical	1
USB 2.0	2 (4-pin USB (type A))
USB 3.1 Gen 2	1 (USB 3.1 (type A)); 1 (USB 3.1 (type C))
USB 3.1 Gen 1	4 (USB 3.1 (type A))
LAN	2 (RJ-45)
Audio Interface	6 (3.5-mm minijack)
Main Board Desktop - Mainboard Features
BIOS Type	UEFI
BIOS Features	SMBIOS 3.0 Support Dual BIOS 128Mb AMI UEFI Legal BIOS with GUI Support ACPI 6.1 Support
Power Connectors Type	24+8+4 pin
Mainboard Features	15u Gold contact Nvidia SLI AMD Quad CrossFireX AMD 3-Way CrossFireX Technology NVIDIA 3-Way SLI NVIDIA Quad SLI AMD CrossFireX Intel Optane Memory Ready RGB LED
Miscellaneous
Package Type	Retail
Cable Included	4 x SATA 6Gb/s Cables
Included Accessories	I/O Shield Quick Start guide Screws ASRock SLI_Bridge_2S Card ASRock 3-Way SLI-2S1S Bridge Card
Certifications	FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
Main Board Desktop - Dimensions&Weight
Form Factor	ATX
Layers Quantity	8
Height (mm)	305 mm
Width (mm)	244 mm
Warranty
Warranty Products Returnable	Yes
Warranty Validation Criteria	Serial Number
Logistic
Pack Weight Brutto (kg)	1.5 kg
Pack Weight Netto (kg)	1.2 kg
Pieces in pack	1
Box Weight Brutto (kg)	1.5 kg
Retail Packaging Net Weight Carton	1.2 kg
Retail Packaging Net Weight Plastic	1.2 kg
Packs in Box	1
