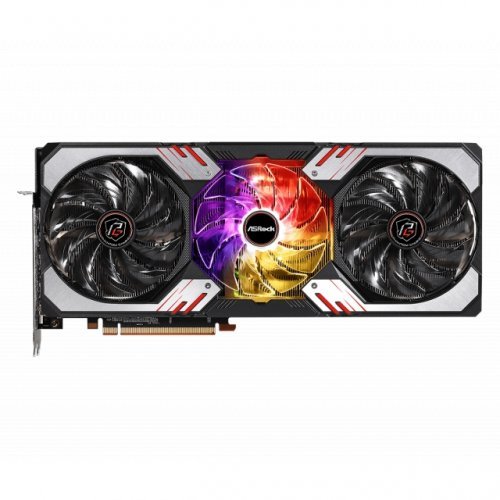

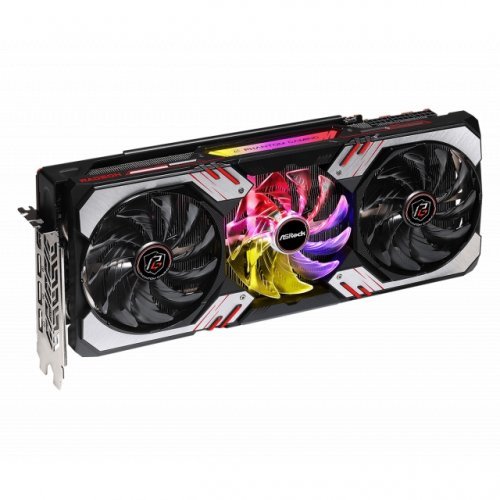

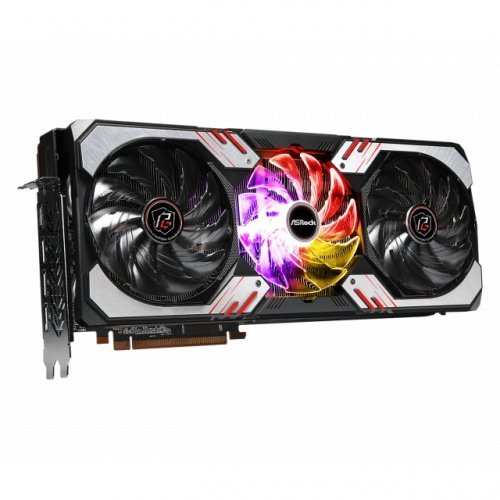

Asrock Radeon RX 6900 XT 16GB GDDR6
Dr. MOS: Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 70A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke: Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Nichicon 12K Black Caps: Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
2oz Copper PCB: Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB: A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB: High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
- Clock: GPU / Memory
Boost Clock: Up to 2340 MHz / 16 Gbps
Game Clock: 2105 MHz / 16 Gbps
Base Clock: 1925 MHz / 16 Gbps - Key Specifications
7nm AMD Radeon™ RX 6900 XT Graphics
16GB 256-bit GDDR6
AMD RDNA™ 2 Architecture
Hardware Raytracing1
PCI® Express 4.0 Support
3 x 8-pin Power Connectors

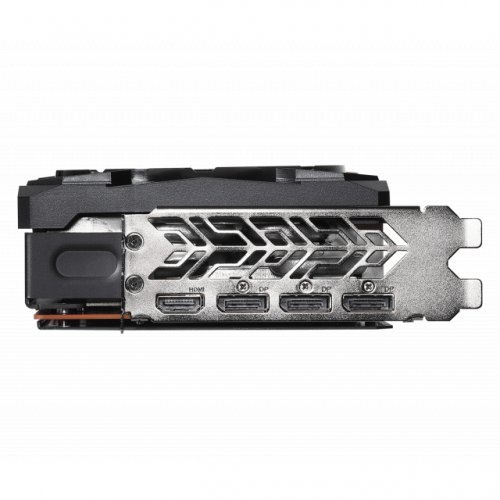

3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR - Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame

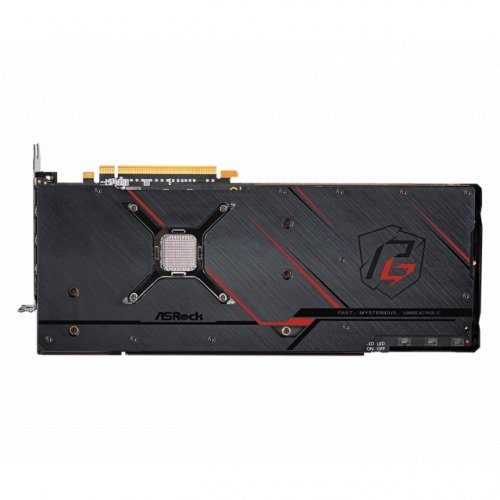

Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASROCK |
| МОДЕЛ | RX6900XT PGD 16GO |
| БАРКОД | 4710483933387 |
| ТИП КАРТА | Gaming |
| ЧИПСЕТ | AMD |
| ГРАФИЧЕН ПРОЦЕСОР | Radeon RX 6900 XT |
| STREAM ПРОЦЕСОРИ | 5120 |
| ЧЕСТОТА ПРОЦЕСОР (MHZ) | OC: Boost: up to 2340, Gaming: Boost: up to 2105, Base: 1925 |
| ТЕХНОЛОГИЯ ПРОЦЕСОР | 7 nm |
| ИНТЕРФЕЙС | PCI Express 4.0 x16 |
| ТИП ПАМЕТ | GDDR6 |
| КАПАЦИТЕТ ПАМЕТ | 16 GB |
| ЧЕСТОТА ПАМЕТ (MHZ) | 16 Gbps |
| РАЗМЕР НА ШИНАТА (БИТОВЕ) | 256 |
| ВИД ОХЛАЖДАНЕ | Активно |
| МАКС. РЕЗОЛЮЦИЯ | 7680 x 4320 |
| DISPLAY PORT | 3 |
| HDMI | 1 |
| КОНЕКТОРИ ЗА ЗАХРАНВАНЕ | 3 x 8-pins |
| ПРЕПОРЪЧИТЕЛНО ЗАХРАНВАНЕ | 900W |
| БРОЙ СЛОТОВЕ | 2.8 |
| MULTI VIEW | 4 |
| PCB FORM | ATX |
| VR READY | Да |
| РАЗМЕРИ (MM) | 330 x 140 x 56 |
