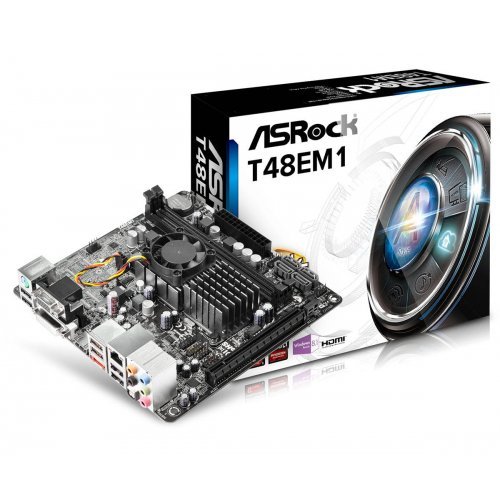

Дънна платка ASRock T48EM1, AMD Dual Core Embedded G-Series APU T48E (1.4GHz)

Дънна платка ASRock T48EM1, AMD Dual Core Embedded G-Series APU T48E (1.4GHz)

Name: Дънна платка ASRock T48EM1, AMD Dual Core Embedded G-Series APU T48E (1.4GHz)
Brand: ASRock
SKU: T48EM1
Availability: OutOfStock

Продуктов код: 20967

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

ASRock

Модел:

T48EM1

Партиден номер:

Предназначение:

Десктоп

Чипсет:

AMD A50M

Брой слотове за памет:

RAM - поколение:

DDR3

Socket:

AMD Embedded G-Series APU

Form Factor:

Mini ITX

Видео изходи:

D-Sub(VGA), DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

ASRock T48EM1

General
Unique Feature	ASRock Full Spike Protection
CPU	- AMD Embedded G-Series APU T48E - Supports AMD's Cool 'n' Quiet Technology - UMI 2.5 GT/s
Chipset	- AMD A50M Chipset
Memory	- 2 x DDR3 DIMM Slots - Supports DDR3 1333/1066/800 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- 32Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 1.1 compliant wake up events - Supports jumperfree - SMBIOS 2.3.1 support - DRAM, FCH, +1V, +1.8V Voltage multi-adjustment
Audio, Video and Networking
Graphics	- Integrated AMD Radeon HD 6250 graphics - DX11 class iGPU, Pixel Shader 5.0 - Max. shared memory 512MB - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI with max. resolution up to 1920x1200 (1080P) - Supports DVI-D with max. resolution up to 1920x1200 @ 75Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports - Supports Dolby^® TrueHD and DTS-HD Master Audio through HDMI Port
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection)
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Expansion / Connectivity
Slots	- 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector	- 1 x CIR Header - 1 x COM Port Header - 1 x CPU Fan Connector (3-pin) - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Rear Panel I/O	- 1 x PS/2 Keyboard/Mouse Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 6 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x eSATA3 Connector - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Software and BIOS	Software - ASRock Instant Boot - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Instant Flash - ASRock Crashless BIOS
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
Hardware Monitor	- CPU temperature sensing - Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor	- Mini-ITX Form Factor - Solid Capacitor for CPU power - High Density Glass Fabric PCB
OS	- Microsoft^® Windows^® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit
Certifications	- FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)
