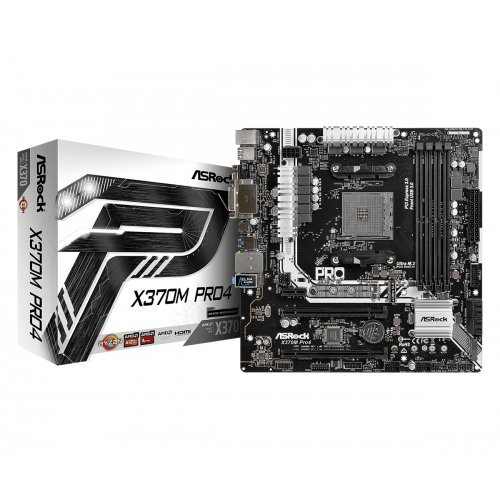

ASROCK X370M PRO4 /AM4

Продуктов код: 32384
Дънна платка ASRock
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
X370M PRO4
Партиден номер:
X370M PRO4
Гаранция:
36 месеца
Чипсет:
AMD X370
Socket:
AMD AM4
Предназначение:
Десктоп
Слотове за памет:
4
RAM- поколение:
DDR4
Видео изходи:
1x Dual-Link DVI-D, D-Sub / RGB / VGA, HDMI
Form Factor:
Micro ATX
Интерфейс:
PS/2
Цена с включен ДДС:
145.66 лв.

Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за ASRock X370M PRO4

  • Ревюта
  • Въпроси и отговори

ASROCK X370M PRO4 /AM4

Mnfr. Part#: X370M PRO4



• Socket: AM4



• Graphics: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - Integrated AMD Radeon™ R-Series Graphics in A-series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Three graphics output options: D-Sub, DVI-D and HDMI; - Supports Triple Monitor; - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); - Supports HDCP 1.4 with DVI-D and HDMI Ports; - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports



• CPU`s supported: Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge); - Digi Power design - 9 Power Phase design; - Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)



• Chipset: - AMD Promontory X370



• Expansion Slots: AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*; - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD 7th A-Series APUs; - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*; - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD Ryzen series CPUs (Raven Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*; - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD Athlon series CPUs; - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*; - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); - 1 x PCI Express 2.0 x1 Slot; - Supports AMD Quad CrossFireX™ and CrossFireX™



• Storage: - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*; - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon 2xxGE series APU)**; - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module



• Memory type: - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory*; - AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory; - Max. capacity of system memory: 64GB**; - 15? Gold Contact in DIMM Slots



• I/O: - 1 x PS/2 Mouse Port; - 1 x PS/2 Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 2 x USB 2.0 Ports (Supports ESD Protection); - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection); - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone



• Connectors: - 1 x COM Port Header; - 1 x TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 1 x AMD Fan LED Header**; - 1 x CPU Fan Connector (4-pin)***; - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x AMD LED Fan USB Header; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)



• Audio: - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - ELNA Audio Caps



• LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111GR; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports LAN Cable Detection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE



• BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - DRAM Voltage multi-adjustment



• Form Factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - Solid Capacitor design



• OS: - Microsoft® Windows® 10 64-bit



• Warranty: 36 Months
