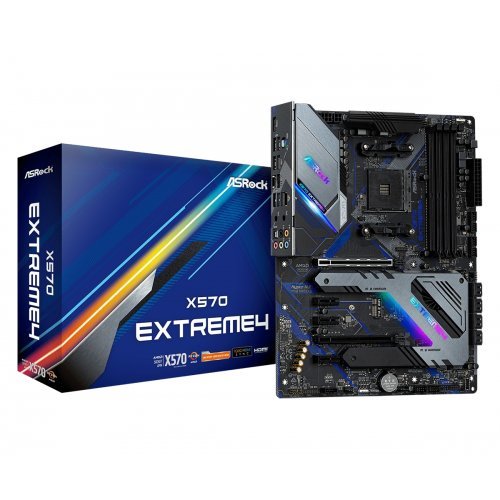

Дънна платка ASRock X570 Extreme 4, s.AM4, AMD X570, PCI-E 4.0, пълна подръжка на 3-то поколение(3XXX) AMD Ryzen процесори

Продуктов код: 39113
Дънна платка ASRock

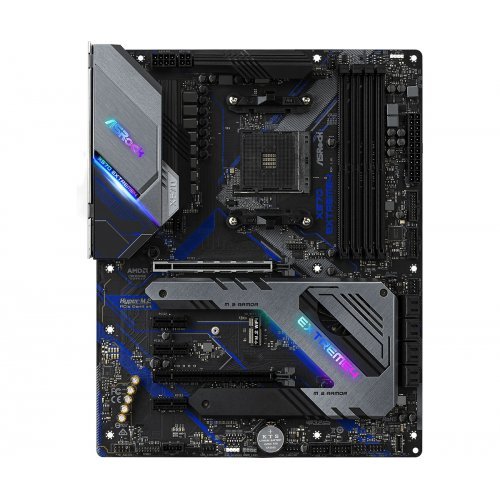

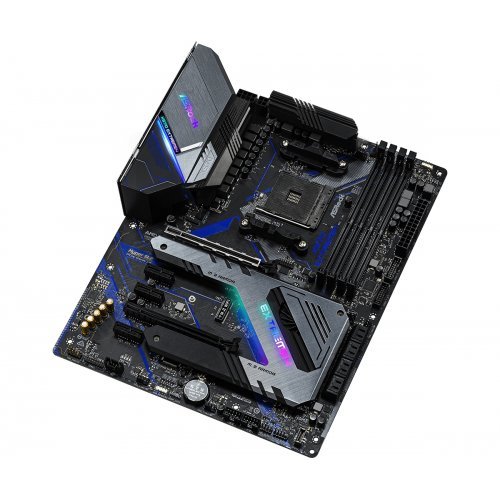

Дънна платка ASRock X570 Extreme 4 X570 EXTREME4 Дънна платка ASRock X570 Extreme 4 X570 EXTREME4 Дънна платка ASRock X570 Extreme 4 X570 EXTREME4 Дънна платка ASRock X570 Extreme 4 X570 EXTREME4 Дънна платка ASRock X570 Extreme 4 X570 EXTREME4
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
X570 Extreme 4
Партиден номер:
X570 EXTREME4
Гаранция:
24 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
AMD X570
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
AMD AM4
Form Factor:
ATX
Видео изходи:
HDMI
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

ASRock X570 Extreme 4

  • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
  • 10 Power Phase Design
  • Supports DDR4 4666+ (OC)
  • 2 PCIe 4.0 x16, 3 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports DTS Connect
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 11 USB 3.2 Gen1 (4 Front, 6 Rear, 1 Front Type-C)
  • Intel® Gigabit LAN
  • ASRock Polychrome SYNC





  • Unique Feature
    ASRock USB 3.2 Gen2
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Premium 60A Power Choke
    - 50A Dr.MOS
    - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
    - Combo Caps (Nichicon 12K Black Caps)
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - I/O Armor
    - Matte Black PCB
    - High Density Glass Fabric PCB
    - 2oz Copper PCB
    ASRock Steel Slot Gen4
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
    ASRock Ultra USB Power
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors
    - Intersil Digital PWM
    - 10 Power Phase design
  • Chipset
    - AMD X570
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*
    - Max. capacity of system memory: 128GB**
    - 15μ Gold Contact in DIMM Slot

    *For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.
    Please refer to below table for AMD non-XMP memory frequency support.

    Ryzen Series CPUs (Matisse):


    Ryzen Series CPUs (Pinnacle Ridge):


    Ryzen Series CPUs (Picasso):


    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
    - Supports "Plug and Play"
    - ACPI 5.1 compliance wake up events
    - Supports jumperfree
    - SMBIOS 2.3 support
    - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
  • Graphics
    - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
    - DirectX 12, Pixel Shader 5.0
    - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
    - Supports HDR (High Dynamic Range) with HDMI 2.0
    - Supports HDCP 2.2 with HDMI 2.0 Port
    - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port
    - Supports Microsoft® PlayReady

    *Actual support may vary by CPU

    **The Max shared memory 16GB requires 32GB system memory installed.
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - Supports Purity Sound™ 4
    - Nichicon Fine Gold Series Audio Caps
    - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
    - Pure Power-In
    - Direct Drive Technology
    - PCB isolate shielding
    - Impedance Sensing on Rear Out port
    - Individual PCB Layers for R/L Audio Channel
    - 15μ Gold Audio Connector
    - Supports DTS Connect
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - GigaLAN Intel® I211AT
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    AMD Ryzen series CPUs (Matisse)
    - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
    AMD Ryzen series CPUs (Pinnacle Ridge)
    - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
    AMD Ryzen series CPUs (Picasso)
    - 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))*

    - 3 x PCI Express 4.0 x1 Slots
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
    - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x AMD Fan LED Header*
    - 1 x RGB LED Header**
    - 1 x Addressable LED Header***
    - 1 x CPU Fan Connector (4-pin)****
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    - 1 x AMD LED Fan USB Header
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

    *The AMD Fan LED Header is compatible with a regular RGB LED stripe.
    The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

    **Supports in total up to 12V/3A, 36W LED Strip

    ***Supports in total up to 5V/3A, 15W LED Strip

    ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Ports (on I/O Panel Shield)
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x Optical SPDIF Out Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
    - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*

    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

    *Ultra USB Power is supported on USB3_56 ports.
    ACPI wake-up function is not supported on USB3_56ports.
  • Software and UEFI
    Software
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock Full HD UEFI
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD
    - 4 x SATA Data Cables
    - 3 x Screws for M.2 Sockets
    - 2 x Standoffs for M.2 Sockets
  • Hardware Monitor
    - Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 2oz Copper PCB
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)



https://www.asrock.com/MB/AMD/X570%20Extreme4/index.asp
