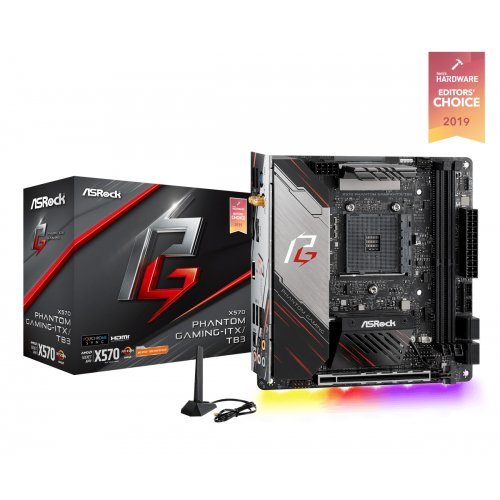

Дънна платка ASRock X570 PHANTOM GAMING-ITX/TB3

Manufacturer : ASROCK

Subcategory AMD AM4

PartNo1 X570 PHANTOM GAMING-ITX/TB3

PartNo2 X570 PHANTOM GAMING-ITX/TB3

Search String ASROCK X570 4xDDR4 8xSATA3 RAID HDMI DP 1xM2 GLAN 1xPCIEx16 WiFi

ASROCK X570 PHANT GAMN-ITX/TB3
Product ID: 63115
Mnfr. Part#: X570 PHANTOM GAMING-ITX/TB3

• Graphics: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 Input with max. resolution up to 4K x 2K (4096x2160) @ 60Hz***; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.0; - Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.4 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2

• CPU`s supported: - Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors*; - Supports Intel® LGA 115x mounting hole and Cooler; - Digi Power design; - 10 Power Phase design

• Chipset: - AMD X570

• Expansion Slots: AMD Ryzen series CPUs (Matisse); - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*; AMD Ryzen series CPUs (Pinnacle Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*; AMD Ryzen series CPUs (Picasso); - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*; - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O); - 15? Gold Contact in VGA PCIe Slot (PCIE1)

• Storage: - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; - 1 x Hyper M.2 Socket, supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*

• Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support ;DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*; - Max. capacity of system memory: 64GB**; - Supports Extreme Memory Profile (XMP) memory modules; - 15? Gold Contact in DIMM Slots

• I/O: - 2 x Antenna Ports (on I/O Panel Shield); - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4 Input; - 1 x Optical SPDIF Out Port; - 1 x USB 3.2 Gen2 Thunderbolt™ 3 Type-C Port (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection); - 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection); - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - 1 x Clear CMOS Button; - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

• Connectors: - 1 x RGB LED Header*; - 1 x Addressable LED Header**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector (15? Gold Audio Connector); - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection); - 1 x SPI TPM Header*******

• Audio: - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - Nichicon Fine Gold Series Audio Caps; - Pure Power-In; - Direct Drive Technology; - PCB Isolate Shielding; - Impedance Sensing on Rear Out port; - Individual PCB Layers for R/L Audio Channel; - Gold Audio Jacks; - 15? Gold Audio Connector; - Supports Creative Sound Blaster™ Cinema 5

• LAN: - Gigabit LAN 10/100/1000 Mb/s; - GigaLAN Intel® I211AT; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment

• Form Factor: - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; - 2oz Copper PCB

• OS: - Microsoft® Windows® 10 64-bit

• Other: - Intel® 802.11ax WiFi Module; - Supports IEEE 802.11a/b/g/n/ax; - Supports Dual-Band (2.4/5 GHz); - Supports WiFi6 802.11ax (2.4Gbps); - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.0 + High speed class II; - Supports MU-MIMO
