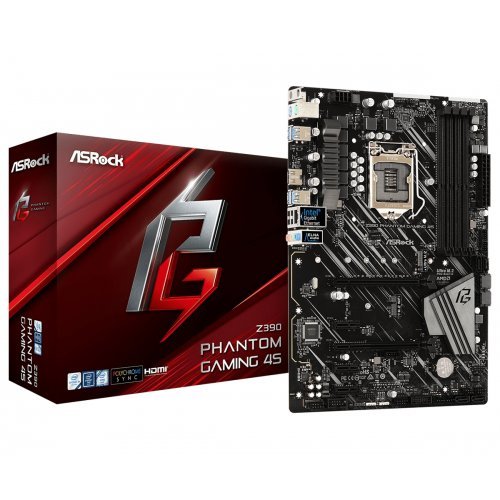

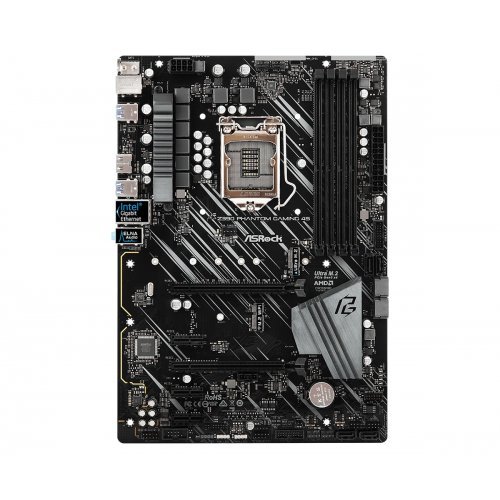

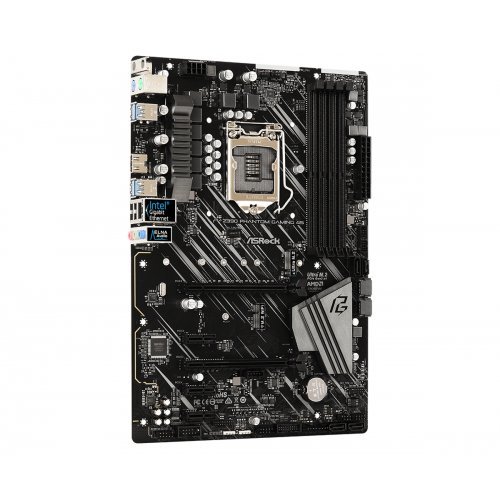

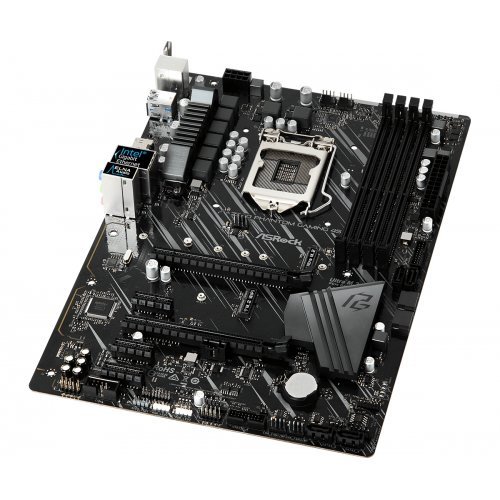

Дънна платка ASRock Z390 PHANTOM GAMING 4S, LGA 1151, Intel Z390, 4x DDR4, ATX RGB

• Socket: 1151

• Graphics: - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics; - DirectX 12; - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1; - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required); - Supports HDCP 2.2 with HDMI 1.4 Port; - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

• CPU`s supported: - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151); - Digi Power design; - 8 Power Phase design; - Supports Intel® Turbo Boost 2.0 Technology; - Supports Intel® K-Series unlocked CPUs; - Supports ASRock BCLK Full-range Overclocking

• Chipset: - Intel® Z390

• Expansion Slots: - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*; - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe); - Supports AMD Quad CrossFireX™ and CrossFireX™; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)

• Storage: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*; - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

• Memory type: - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - Supports DDR4 4300+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 128GB*; - Supports Intel® Extreme Memory Profile (XMP) 2.0; - 15? Gold Contact in DIMM Slots

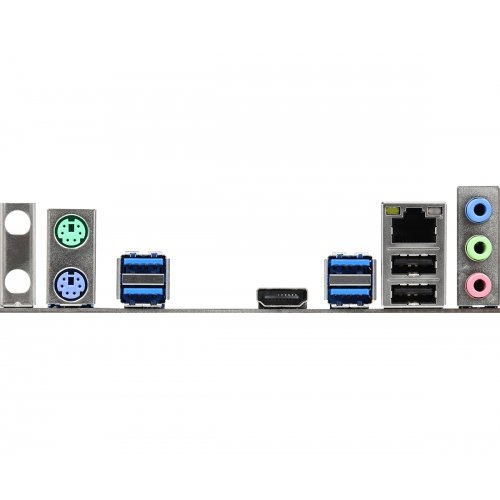

• I/O: - 1 x Antenna Bracket; - 1 x PS/2 Mouse Port; - 1 x PS/2 Keyboard Port; - 1 x HDMI Port; - 2 x USB 2.0 Ports (Supports ESD Protection); - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone

• Connectors: - 1 x COM Port Header; - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers*; - 1 x Addressable LED Header**; - 2 x CPU Fan Connectors (4-pin)***; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin); - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

• Audio: - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - PCB Isolate Shielding; - ELNA Audio Caps

• LAN: - Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I219V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

• BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment

• Form Factor: - ATX Form Factor: 12.0-in x 8.4-in, 30.5 cm x 21.3 cm; - Solid Capacitor design

• OS: - Microsoft® Windows® 10 64-bit

• Warranty: 36 Months

https://www.asrock.com/MB/Intel/Z390%20Phantom%20Gaming%204S/index.asp#Specification
