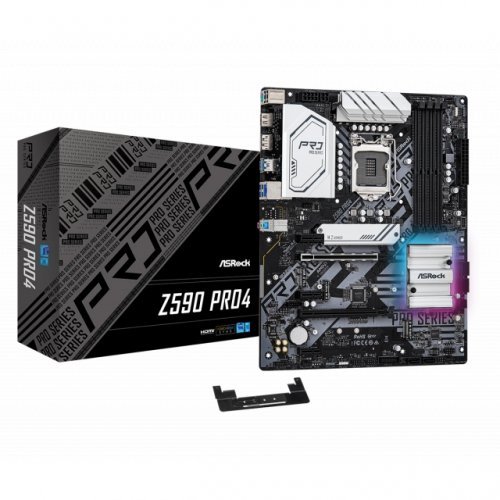

Дънна платка ASRock Z590 Pro4, socket 1200, Polychrome RGB
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
- 14 Phase Dr.MOS Power Design
- Supports DDR4 4800MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s), 2 x Rear USB 3.2 Gen2 (10Gb/s), 6 x USB 3.2 Gen1 (2 x Rear, 4 x Front), 6 x USB 2.0 (2 x Rear, 4 x Front)
- Dragon 2.5 Gigabit LAN
- ASRock Graphics Card Holder (Patent Pending)
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASROCK |
| МОДЕЛ | Z590 PRO4 |
| БАРКОД | 4710483933899 |
| CPU SOCKET | 1200 |
| ЧИПСЕТ | Intel Z590 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors |
| ФОРМ ФАКТОР | ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | up to 4800+ - 11 Gen Intel® Core™ Processors, up to 4666+ - 10 Gen Intel® Core™ Processors |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Intel UHD Graphics |
| ВГРАДЕНО АУДИО | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| ВГРАДЕН LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| СЛОТOВЕ PCI-E X16 | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 |
| СЛОТOВЕ PCI-E X1 | 3 |
| ИНТЕРФЕЙС SERIAL ATA | 6 x SATA3 6.0 Gb/s |
| М2 СЛОТ | Intel® Optane™ Technology, 1 x Hyper M.2 (PCIe Gen4 x4), 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3) |
| ПОДДРЪЖКА НА RAID | 0, 1, 5, 10 |
| ВИДЕО СЛОТ | PCI Express |
| МУЛТИ GPU ТЕХНОЛОГИЯ | Supports AMD Quad CrossFireX™ and CrossFireX™ |
| СВЪРЗАНОСТ | 3 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection), 2 x USB 3.2 Gen1 Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone |
| USB TYPE-C | 1 |
| USB 3.2 | 4 |
| USB 2.0 | 2 |
| ПОДДЪРЖАНИ ТЕХНОЛОГИИ | ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| ДРУГИ | ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Internet Flash, ASRock Easy RAID Installer |
