Дънна платка ASRock Z790 Taichi Carrara, LGA 1700, Intel Z790, 4x DDR5, E-ATX, Wi-Fi Bluetooth

Дънна платка ASRock Z790 Taichi Carrara, LGA 1700, Intel Z790, 4x DDR5, E-ATX, Wi-Fi Bluetooth

Name: Дънна платка ASRock Z790 Taichi Carrara, LGA 1700, Intel Z790, 4x DDR5, E-ATX, Wi-Fi Bluetooth
Brand: ASRock
SKU: Z790
Availability: OutOfStock

Продуктов код: 82224

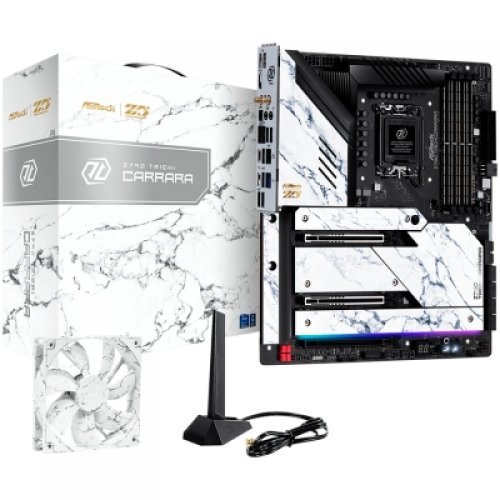

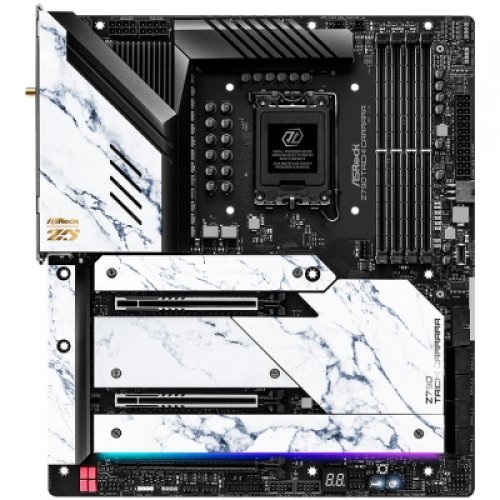

Дънна платка ASRock Z790 90-MXBKK0-A0UAYZ (снимка 1)

Дънна платка ASRock Z790 90-MXBKK0-A0UAYZ

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

ASRock

Модел:

Z790

Партиден номер:

90-MXBKK0-A0UAYZ

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

За игри

Чипсет:

Intel Z790

Брой слотове за памет:

RAM - поколение:

DDR5

Socket:

Intel LGA1700

Form Factor:

E-ATX

Видео изходи:

HDMI, Thunderbolt

Wi-Fi свързаност:

Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

ASRock Z790

Main Board Desktop - Processor
Chipset	Intel Z790
Supports Central Processor Unit	Intel 12th Gen Processors Intel 13th Gen Processors Intel 14th Gen Processors
CPU Socket Standard	Socket 1700
Architecture Features	Intel Turbo Boost Max Technology 3.0 Intel Hybrid Technology Intel Thermal Velocity Boost Intel Adaptive Boost Technology
CPU Maximum Quantity Supports	1
Main Board Desktop - Memory
Memory Type	DDR5 SDRAM
Memory Form Factor	DIMM 288-pin
Memory Speed	7400MHz(PC5-59200)
Maximum Installable System Memory Storage Capacity	192 GB
Memory Slot Total Quantity	4
Provides Error Checking Method	non-ECC
Memory Features	Two DDR Channels Unbuffered XMP 3.0
Controller
Plug-in-card	Wi-Fi Controller: 1 x M.2 (Key E)
Integrated	Storage Controller: PCI Express 5.0 x4 (1 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (8) Storage Controller: PCI Express 4.0 x4 (4 x M.2 (Key M))
Main Board Desktop - Video Output
Video Controller Integrated	yes
Video Chipset	Intel Iris Xe Graphics
Main Board Desktop - Audio Output
Audio Integrated	yes
Device Location	Integrated
Audio Chipset	Realtek ALC4082
Audio Output Mode	5.1 Channel Surround
Compliant Audio Standards	High Definition Audio Nahimic Audio
Main Board Desktop - Networking Specifications
LAN Integrated	yes
LAN Chipset	Killer E3100G
Wi-Fi	IEEE 802.11ax Wi-Fi 6E
Bluetooth	Bluetooth 5.3
Data Link Protocol Supports	Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps
LAN Architecture	Integrated: Gigabit Ethernet/Fast Ethernet/Ethernet (Intel i219V)
Slot Provided
PCI Express 5.0 x16	2
PCI Express 4.0 x16	1

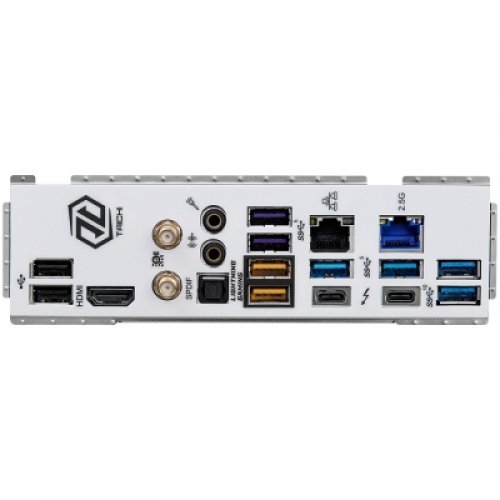

Interface Provided
Antenna	2
HDMI	1 (HDMI (Type A))
Thunderbolt 4	2 (USB Type C)
S/PDIF-out Optical	1 (TOSLINK)
USB 3.2 Gen 2	2 (USB 3.2 (type A))
USB 3.2 Gen 1	6 (USB 3.2 (type A))
USB 2.0	2 (USB 2.0 (type A))
LAN	2 (RJ-45)
Audio Interface	1 (3.5-mm minijack)
Microphone-In	1 (3.5-mm minijack)
Main Board Desktop - Mainboard Features
BIOS Features	ASRockRack Instant Flash 256Mb AMI UEFI Legal BIOS with GUI support
Mainboard Features	AMD CrossFire technology RGB LED
Main Board Desktop - Software
Supported Operating System	Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
Miscellaneous
Cable Included	4 x SATA Data Cables
Included Accessories	Quick Start Guide Screws WiFi antenna x 2
Main Board Desktop - Dimensions&Weight
Form Factor	Extended ATX
Height (mm)	267 mm
Width (mm)	305 mm
Warranty
Warranty Products Returnable	Yes
Warranty Validation Criteria	Serial Number
Logistic
Pack Weight Brutto (kg)	0.9 kg
Pack Weight Netto (kg)	0.8 kg
Pieces in pack	1
Box Weight Brutto (kg)	0.9 kg
Retail Packaging Net Weight Carton	0.8 kg
Retail Packaging Net Weight Plastic	0.8 kg
Packs in Box	1
Package Type	Retail
