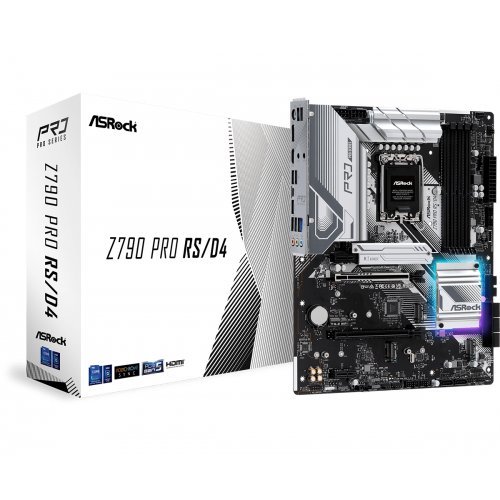

Дънна платка ASRock Z790 PRO RS/D4

Продуктов код: 74712
Дънна платка ASRock
Дънна платка ASRock Z790 PRO RS/D4 Дънна платка ASRock Z790 PRO RS/D4 Дънна платка ASRock Z790 PRO RS/D4 Дънна платка ASRock Z790 PRO RS/D4 Дънна платка ASRock Z790 PRO RS/D4
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
-
Партиден номер:
Z790 PRO RS/D4
Гаранция:
36 месеца
Предназначение:
Десктоп
Чипсет:
Intel Z790
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1700
Form Factor:
ATX
Видео изходи:
DisplayPort, HDMI
Wi-Fi свързаност:
Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

ASRock Z790 PRO RS/D4

Характеристики

  • Graphics:
    - Intel® Xe Graphics Architecture (Gen 12);
    - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz;
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz;
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  • CPU's supported:
    - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700);
    - Supports Intel® Hybrid Technology;
    - Supports Intel® Turbo Boost Max 3.0 Technology;
    - Supports Intel® Thermal Velocity Boost (TVB);
    - Supports Intel® Adaptive Boost Technology (ABT)
  • Chipset: - Intel® Z790
  • Expansion Slots:
    CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*;
    Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*;
    - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*;
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT);
    - Supports AMD CrossFire™
  • Storage:
    CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*;
    Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*;
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*;
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*;
    - 8 x SATA3 6.0 Gb/s Connectors
  • Memory type:
    - Dual Channel DDR4 Memory Technology;
    - 4 x DDR4 DIMM Slots;
    - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*;
    - Supports ECC UDIMM memory modules (operate in non-ECC mode);
    - Max. capacity of system memory: 128GB;
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
  • I/O:
    - 2 x Antenna Mounting Points;
    - 1 x PS/2 Mouse/Keyboard Port;
    - 1 x HDMI Port;
    - 1 x DisplayPort 1.4;
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s);
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s);
    - 2 x USB 3.2 Gen1 Ports;
    - 4 x USB 2.0 Ports;
    - 1 x RJ-45 LAN Port;
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Connectors:
    - 1 x eDP Signal Connector;
    - 1 x SPI TPM Header;
    - 1 x Power LED and Speaker Header;
    - 1 x RGB LED Header*;
    - 3 x Addressable LED Headers**;
    - 1 x CPU Fan Connector (4-pin)***;
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****;
    - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****;
    - 1 x 24 pin ATX Power Connector;
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);
    - 1 x Front Panel Audio Connector;
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card);
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports);
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  • Audio:
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec);
    - Nahimic Audio
  • LAN:
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;
    - Dragon RTL8125BG;
    - Supports Dragon 2.5G LAN Software;
    - Smart Auto Adjust Bandwidth Control;
    - Visual User Friendly UI;
    - Visual Network Usage Statistics;
    - Optimized Default Setting for Game, Browser, and Streaming Modes;
    - User Customized Priority Control
  • BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support
  • Form Factor:
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;
    - 2oz Copper PCB
  • OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
