Дънна платка Asus B250 Mining Expert

Продуктов код: 24873
Дънна платка Asus
Дънна платка Asus B250 Mining Expert Дънна платка Asus B250 Mining Expert Дънна платка Asus B250 Mining Expert Дънна платка Asus B250 Mining Expert Дънна платка Asus B250 Mining Expert Дънна платка Asus B250 Mining Expert
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
B250 Mining Expert
Партиден номер:
-
Гаранция:
36 месеца
Предназначение:
Десктоп
Чипсет:
Intel B250
Брой слотове за памет:
2
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

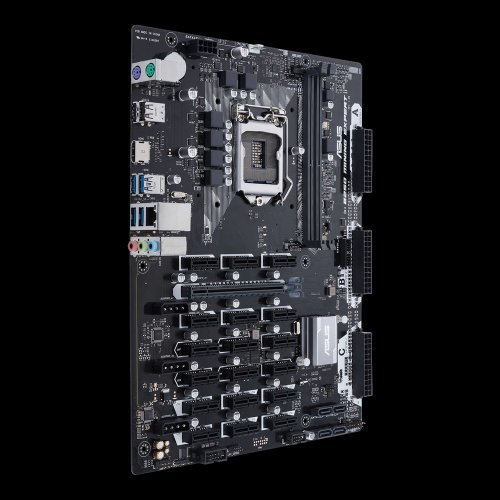

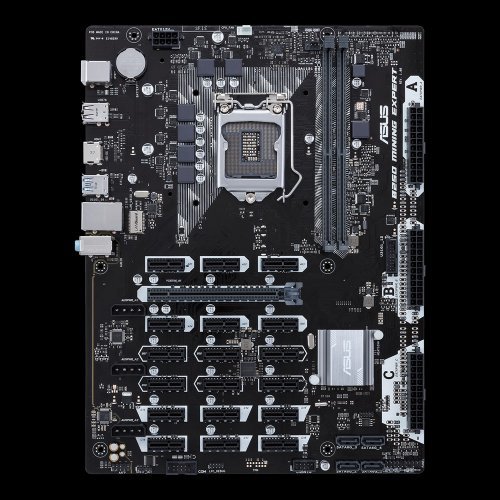

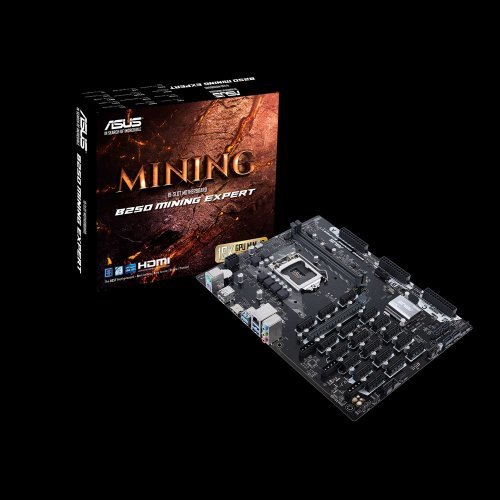

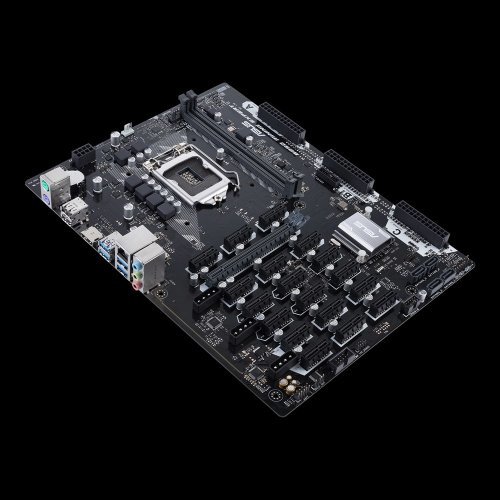

Asus B250 Mining Expert

Intel LGA-1151 ATX mining motherboard with 19 PCIe slots, Triple-ATX12V power delivery, voltage-stabilization capacitors, and mining mode design

  • World’s first 19-slot motherboard for multi-GPU mining
  • Exclusive triple-ATX12V design and 19 decoupling capacitors for stable power delivery
  • ASUS PCIe Slot State Detection indicates the status of each GPU connection for easy management and debugging
  • Unique Mining Mode for hassle-free setup of your mining rig — no BIOS tweaks required
  • Intel LAN and LANGuard for the best network performance
  • CPU
    Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B250
  • Memory
    2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
    ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    VGA output support : HDMI port
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    Maximum shared memory of 1024 MB
  • Expansion Slots
    1 x PCIe x16 (x16 mode)
    18 x PCIe x1
  • Storage
    4 x SATA 6Gb/s port(s),
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
  • USB Ports
    Intel® B250 Chipset :
    6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board)
    Intel® B250 Chipset :
    4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design

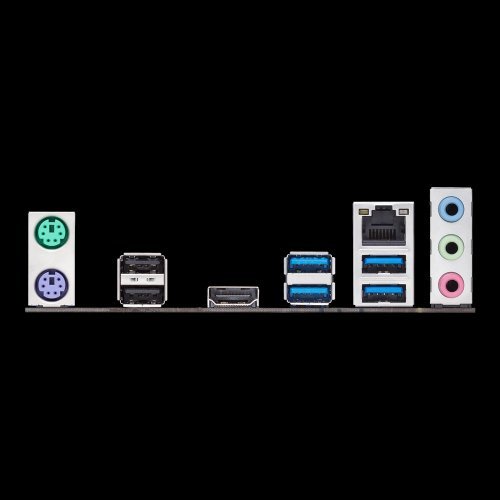

  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 1 (blue) Type-A
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    3 x 4-pin AUXPWR Header

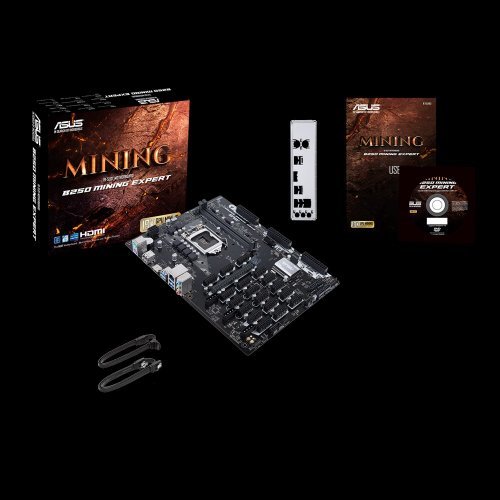

  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
    Windows® 7 64-bit *1
  • Form Factor
    ATX Form Factor
    12 inch x 9.1 inch ( 30.5 cm x 23.1 cm )
  • Note
    1.Windows® 7 64-bit is only supported when using 6th Generation Intel® Processors
