Asus DSL-N66U, Stylish Concurrent Dual-Band Wireless-N900 Gigabit Modem Router

Stylish Concurrent Dual Band Wireless-N900 Gigabit Modem Router

The ASUS DSL-N66U N900 modem router has up to 900Mbit/s in bandwidth. It is currently the fastest modem router with support for VDSL connections. The DSL-N66U works in 2.4GHz and 5GHz, and uses dual CPUs for optimal computing power towards faster and more stable connections. Wired and wireless networking each have a CPU dedicated to them, guaranteeing improved performance. It also includes two WAN ports (Ethernet WAN and DSL WAN), allowing customers to use it as a modem router or standalone router. Equipped with powerful hardware NAT acceleration and built-in Gigabit Ethernet, the DSL-N66U gives you full Gigabit internet performance, with its WAN and LAN throughput at over 900Mbps.The ASUSWRT interface supports quick setup and simplified network management, while the DSL-N66U also includes AiCloud, the exclusive ASUS cloud computing app.

Two CPUs for fast and stable connections

The DSL-N66U offers dual CPU performance and flexibility. Its twin processors each optimize wired and wireless connections. By separating wired VDSL/ADSL and Wi-Fi networking into two compute modules with their own dedicated processing power, the DSL-N66U achieves maximum performance for both connection types with no compromises.

Optimized and Reliable Wireless Coverage via Ai Radar

ASUS Ai Radar intelligently strengthens connections to wireless devices. With high-powered amplification, it provides stronger signals in any direction with better coverage to improve data throughput.

Two WAN ports for DSL and Ethernet offer double the choice

The DSL-N66U has two WAN ports, allowing it to be used as a standalone router when not operating as a ADSL/VDSL router modem. You can choose which mode suits your needs, and in any scenario gain considerable savings and clutter reduction by not having to buy separate power-consuming devices. Whether for a basic home setup or a full wireless network, Ethernet WAN affords the flexibility you require.

Gigabit Internet Browsing with Hardware NAT

Equipped with a powerful hardware NAT acceleration engine and built-in Gigabit Ethernet, the DSL-N66U gives you full Gigabit performance, making its WAN to LAN throughput up to 2-5 times that of traditional software-based NAT Gigabit routers.

AiCloud - Sync. Share. Stream.
Your World on Demand

ASUS AiCloud works with ASUS routers to offer the most complete, accessible, and secure cloud platform. It’s a free app for iOS and Android devices, and allows you to easily sync, share, stream, and access all your content from any location. It creates your own private cloud server at home, and connects it seamlessly with the public cloud. Sharing is easier than ever with confidential links, which can be sent via email, SMS, and more. For the most intuitive and flexible cloud access from almost any device and location, ASUS AiCloud is your launch point.

Add external storage, printers, and other devices to your network

Routers can easily become so much more by simply adding the convenience of USB ports, which makes them into multi-role servers. Connect external storage, printers, scanners, and many other USB-enabled devices, and exponentially increase your productivity by sharing resources across your network. No queuing for tasks to complete: get more done at the same time and discover genuine router flexibility.

• Network Standard
  IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6
• Product Segment
  N900 ultimate performance; 450+450Mbps
• Wi-Fi Data Rate
  802.11a : 6,9,12,18,24,36,48,54Mbps
  802.11b : 1, 2, 5.5, 11Mbps
  802.11g : 6,9,12,18,24,36,48,54Mbps
  802.11n : up to 450Mbps
• xDSL Data Rate
  VDSL2/VDSL/ADSL2+/ADSL2/ADSL multimode
  Up to 100Mbps/100Mbps upstream/downstream
  Support Annex A/B/I/J/L/M
  Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
  VDSL2 interface compliance with ITU-T993.2
  G.992.1 (G.dmt), Annex A, and B Compliant
  G.992.2 (G.lite), Annex A, and B Compliant
  ANSI T1.413 Compliant
  G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
  G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
  G.993.2 Compliant, Annex A, B, up to profile 30a with external AFE.
  ATM and PTM (dual-priority)
• Antenna
  Internal 2 dBi antenna x 3
• LED Indicator
  Power, Internet, LAN x 1, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, USB x 1
• Button
  WPS Button, Reset Button, Power Switch, Wireless on/off Button

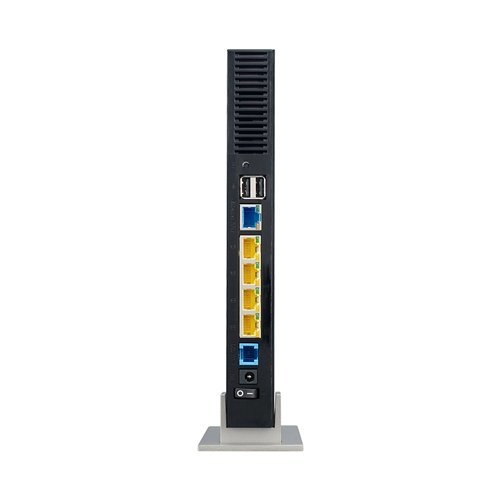

• Ports
  4 x RJ45 10/100/Gigabits BaseT for LAN
  1 x RJ45 10/100/Gigabits BaseT for WAN
  1 x RJ11 for xDSL
• USB Ports
  USB 2.0 x 2
• Operating Frequency
  2.4GHz
  5GHz
• Router Special Features
  AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
• Operation Channel
  13 Europe (ETSI)
• Memory
  16MB Flash/64MB DDR2 RAM for Modem/Router
  64MB DDR2 RAM for Wi-Fi
• Receive Sensitivity
  11b: -89dBm @ 11Mbps and PER<8%)
  11g: -75dBm @ 54Mbps and PER<10%)
  11a: -74dBm @ 54Mbps and PER<10%)
• Security
  64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support
• Management
  Web-based GUI configuration
  Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
  Auto VPI/VCI detection
  Configuration backup and restore
  Diagnostics
  Log & Trace function
• Utilities
  ．Download master
  - support BT, NZB, HTTP, ED2K
  - support encryption, DHT, PEX and magnet link
  - upload and download bandwidth control
  - download scheduling
  ．Media server
  ．File server: Samba and FTP server with account management
  ．PPTP VPN server
  ．Network map
  ．Traffic monitor
• VPN Support
  IPSec Pass-Throuth
  PPTP Pass-Through
  L2TP Pass-Through
  PPTP server
• Power Adapter
  AC Input : 100 ~240 V(50~60HZ)
  DC Output : 19 V/3.42 A
• Certificates
  CE, C-Tick, Telepermit
• Dimensions
  6.5 x 15.5 x 25 cm (WxDxH)
• Weight
  820 g (Device Only)
• OS Support
  Windows® 8 , 32bit/64bit
  Windows® 7 , 32bit/64bit
  Windows® Vista , 32bit/64bit
  Windows® XP , 32bit/64bit
  Mac OS X
  Linux

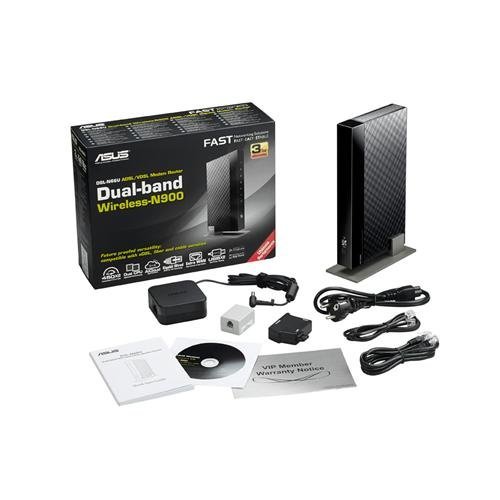

• Package Content
  DSL-N66U Dual-band Wireless-N900 VDSL/ADSL Modem Router
  RJ-45 cable
  RJ-11 cable
  Support CD(User manual and utility)*
  Power adapter
  Warranty card
  Quick start guide
  Splitter (varies with regions)
