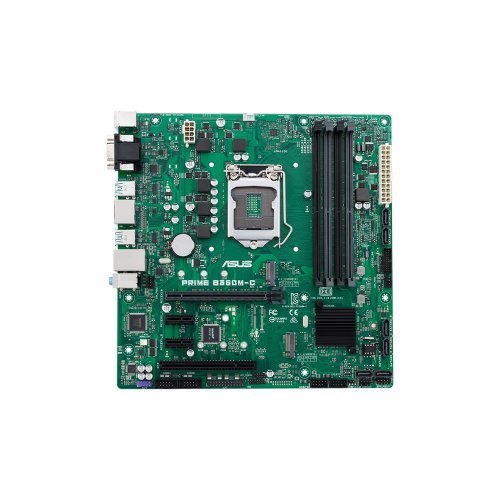

Дънна платка Asus Prime B360M-C/CSM

Продуктов код: 29403
Дънна платка Asus
Дънна платка Asus Prime B360M-C/CSM Дънна платка Asus Prime B360M-C/CSM Дънна платка Asus Prime B360M-C/CSM Дънна платка Asus Prime B360M-C/CSM Дънна платка Asus Prime B360M-C/CSM Дънна платка Asus Prime B360M-C/CSM Дънна платка Asus Prime B360M-C/CSM Дънна платка Asus Prime B360M-C/CSM
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
Prime B360M-C/CSM
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel B360
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
mATX
Видео изходи:
D-Sub(VGA), DisplayPort, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

Asus Prime B360M-C/CSM

Micro-ATX B360 business motherboard with enhanced security, reliability and manageability

  • ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
  • Dedicated LPC header and debug card with LCD display for faster troubleshooting
  • Event log for capturing and managing detailed system information
  • Innovative moisture-resistant coating to protect the motherboard from harsh environments
  • Commercial BIOS kit to make customization faster and more efficient
  • ASUS Control Center software to make IT endpoint management easier
  • CPU
    Intel® for 8th Generation Core Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B360
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Supports Intel® Extreme Memory Profile (XMP)
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * The maximum memory frequency supported varies by processor.
    * The maximum memory frequency supported varies by processor
    ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/RGB/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16
    2 x PCIe 3.0/2.0 x1
    1 x PCI
  • Storage
    Intel® B360 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
    6 x SATA 6Gb/s port(s)
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC *1
    - Supports : Jack-detection, Front Panel Jack-retasking
  • USB Ports
    Intel® B360 Chipset :
    4 x USB 3.1 Gen 2 port(s) (4 at back panel, , Type-A, 2 at mid-board)
    Intel® B360 Chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    Intel® B360 Chipset :
    6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)
  • Special Features
    Bespoke Motherboard Design & Business Focused Features :
    - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
    - ASUS Event Log: Record activities of system and provides information in BIOS
    - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
    - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
    - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
    Easy Assembly Design:
    - Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
    - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
    Digi+VRM
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x D-Sub
    2 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 2 ()Type-A
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x MONO out header *2
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
    1 x LPT header
    2 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x System panel(s)
    1 x Chassis Intrusion connector(s)
    1 x Clear CMOS jumper(s)
    1 x 14-1 pin TPM connector
    1 x LPC Debug header
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit
  • Manageability
    WOL, PXE
  • Support Disc
    Watch dog timer, Drivers
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    Micro ATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
  • Note
    *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
    *2: Use with amplified speaker is suggested.
