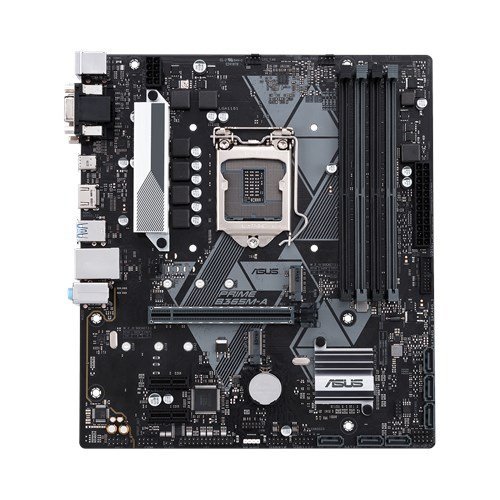

Дънна платка Asus PRIME B365M-A 90MB10N0-M0EAY0

• Socket: 1151

• Graphics: Integrated Graphics Processor- Intel® HD Graphics support; Multi-VGA output support : HDMI/DVI-D/D-Sub ports; - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz; - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz; - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz; Maximum shared memory of 1024 MB (for iGPU exclusively); Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

• CPU`s supported: Intel® Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0

• Chipset: Intel® B365

• Expansion Slots: 1 x PCIe 3.0 x16 (x16 mode); 2 x PCIe 3.0/2.0 x1

• Storage: Intel® B365 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode); 6 x SATA 6Gb/s port(s), gray; Support Raid 0, 1, 5, 10; Intel® Rapid Storage Technology supports; Intel® Optane™ Memory Ready

• Memory type: Intel® B365 Chipset; 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)

• I/O: 1 x PS/2 keyboard (purple); 1 x PS/2 mouse (green); 1 x DVI-D; 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 1 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps; 4 x USB 3.1 Gen 1 Type-A; 1 x 8-channel Audio I/O

• Connectors: 1 x Aura RGB Strip Header; 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices; 1 x TPM header; 1 x LPT header; 1 x COM port(s) connector(s); 6 x SATA 6Gb/s connector(s); 1 x CPU Fan connector(s); 2 x Chassis Fan connector(s); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin EATX 12V Power connectors; 1 x Front panel audio connector(s) (AAFP); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x Chassis intrusion header; 1 x Speaker connector

• Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC; - Supports : Jack-detection, Front Panel Jack-retasking; Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.; - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity; * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

• LAN: Realtek® RTL8111H, 1 x Gigabit LAN; ASUS LAN Guard

• BIOS: 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

• Form Factor: mATX Form Factor; 9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )

• OS: Windows® 10 64-bit

• Warranty: 36 Months

https://www.asus.com/Motherboards/PRIME-B365M-A/specifications/
