Asus
Дънна платка Asus PRIME B560M-A

Дънна платка Asus PRIME B560M-A

Name: Дънна платка Asus PRIME B560M-A
Brand: Asus
SKU: PRIME B560M-A
Availability: OutOfStock

Продуктов код: 58446

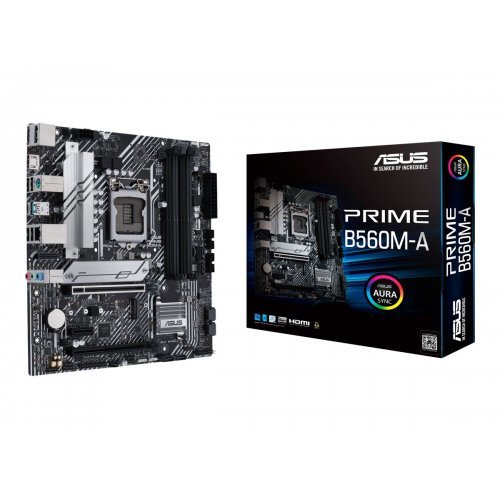

Дънна платка Asus PRIME B560M-A (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

PRIME B560M-A

Партиден номер:

PRIME B560M-A

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel B560

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1200

Form Factor:

mATX

Видео изходи:

DisplayPort, HDMI

Wi-Fi свързаност:

Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus PRIME B560M-A

Технически подробности

ключови търговски точки/предимства
Intel LGA 1200 socket: ready for 11th Gen Intel Core processors Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Memory overclocking: supports memory overclocking up to 5000 MHz ASUS OptiMem II: careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability Ultra-fast connectivity: PCIe 4.0, Intel 1Gb Ethernet, rear USB 3.2 Gen 2 (Type-A and Type-C) and V-M.2 Key E slot for Wi-Fi
продукт:
Име на продукта:	ASUS PRIME B560M-A LGA1200 B560 USB3.2 GEN 2 MB
Описание :	ASUS PRIME B560M-A - Motherboard - micro ATX - LGA1200 Socket - B560 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
EAN:	4711081130376

General
Product Type:	Motherboard - micro ATX
Chipset Type:	Intel B560
Processor Socket:	LGA1200 Socket
Max Processors Qty:	1
Compatible Processors:	(supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size:	128 GB
Technology:	DDR4
Bus Clock:	2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.)
Supported RAM Integrity Check:	Non-ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type:	HD Audio (8-channel)
Audio Codec:	Realtek ALC887/ALC897
Compliant Standards:	High Definition Audio
LAN
Network Controller:	Intel I219V
Network Interfaces:	Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:	1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 1 x M.2 socket (Key E)
Storage Interfaces:	SATA-600 -connectors: 6 x 7pin Serial ATA SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 4.0 -connectors: 1 x M.2

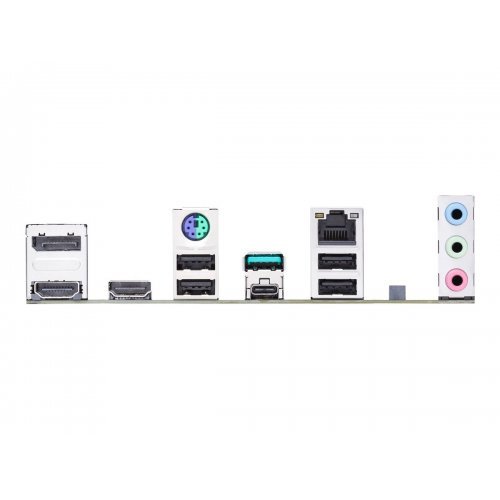

Interfaces:	1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB 3.2 Gen 2 1 x PS/2 keyboard / mouse 1 x DisplayPort 2 x HDMI 4 x USB 2.0 1 x USB-C Gen2
Internal Interfaces:	3 x USB 2.0 - header 1 x parallel - header 4 x USB 3.2 Gen 1 - header 1 x audio - header 1 x serial - header 1 x SPDIF out - header
Power Connectors:	24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type:	AMI
BIOS Features:	UEFI BIOS
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, ASUS 5X Protection III, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, ASUS SafeSlot Core+
Miscellaneous

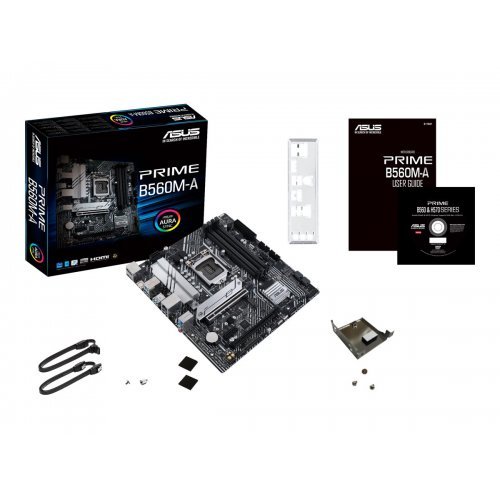

Included Accessories:	1 x M.2 screw, vertical M.2 bracket set, 1 x M.2 rubber package
Cables Included:	2 x Serial ATA cable
Software Included:	Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator
Compliant Standards:	DisplayPort 1.4
Width:	24.4 cm
Depth:	23.4 cm
