Дънна платка Asus PRIME B760M-K

Name: Дънна платка Asus PRIME B760M-K
Brand: Asus
SKU: PRIME B760M-K
Availability: OutOfStock

Продуктов код: 85475

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

PRIME B760M-K

Партиден номер:

PRIME B760M-K

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel B760

Брой слотове за памет:

RAM - поколение:

DDR5

Socket:

Intel LGA1700

Form Factor:

mATX

Видео изходи:

D-Sub(VGA), HDMI

Wi-Fi свързаност:

Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus PRIME B760M-K

CPUs supported: Intel Socket LGA1700 for 13th Gen Intel Core 12th Gen Intel Core, Pentium Gold and Celeron Processors;
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0;

Memory type: 2 x DIMM slots, Max. 96GB, DDR5 8000OC7800OC7600OC7400OC7200OC7000OC6800OC6600OC6400OC6200OC6000OC5800OC56005400520050004800 Non-ECC, Un-buffered Memory;
Dual Channel Memory Architecture;
Supports Intel Extreme Memory Profile XMP;

Expansion Slots: Intel 13th 12th Gen Processor;
1 x PCIe 4.0 x16 slot;
Intel B760 Chipset;
2 x PCIe 4.0 x1 slot;

Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gbs ports;
Intel 13th 12th Gen Processor;
M.2_1 slot Key M, type 224222602280 supports PCIe 4.0 x4 mode;
Intel B760 Chipset;
M.2_2 slot Key M, type 224222602280 supports PCIe 4.0 x4 mode;
4 x SATA 6Gbs port;

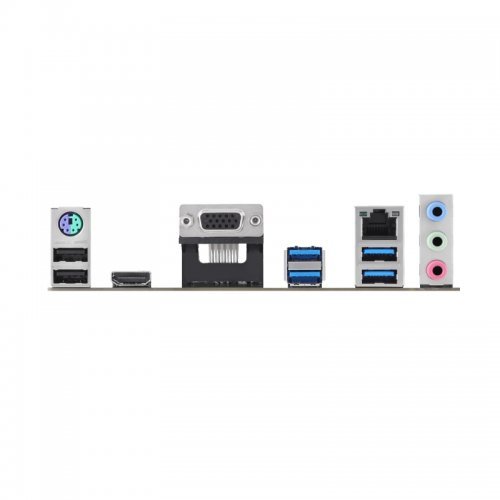

IO: 4 x USB 3.2 Gen 1 5G ports 4 x Type-A;
2 x USB 2.0 ports 2 x Type-A;
1 x VGA port;
1 x HDMITM port;
1 x Realtek 2.5Gb Ethernet port;
3 x Audio jack;
1 x PS2 KeyboardMouse combo port;

Connectors: 1 x 4-pin CPU Fan header;
2 x 4-pin Chassis Fan header;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
2 x M.2 slots Key M;
4 x SATA 6Gbs port;
1 x USB 3.2 Gen 1 5G header supports 2 additional USB 3.2 Gen 1 port;
2 x USB 2.0 headers support 3 additional USB 2.0 port;
2 x Addressable Gen 2 header;
1 x Aura RGB header;
1 x Clear CMOS header;
1 x COM Port header;
1 x Front Panel Audio header AAFP;
1 x SPDIF Out header;
1 x Speaker header;
1 x SPI TPM header 14-1pin;
1 x 10-1 pin System Panel header;

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit192 kHz playback;
Audio Feature;
- Audio Shielding;
- Premium audio capacitor;
- Dedicated audio PCB layer;
