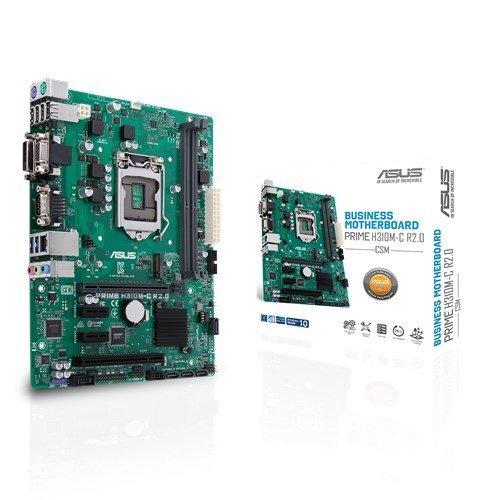

Дънна платка Asus PRIME H310M-C R2.0/CSM 90MB0ZM0-M0EAYC

• Graphics: Integrated Graphics Processor- Intel® HD Graphics support; Multi-VGA output support : DVI-D/RGB ports; - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz; - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz; Maximum shared memory of 1024 MB (for iGPU exclusively); Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™; Supports up to 2 displays simultaneously

• CPU`s supported: Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0

• Chipset: Intel® H310

• Expansion Slots: 1 x PCIe 3.0/2.0 x16; 2 x PCIe 2.0 x1; 1 x PCI

• Storage: Intel® H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode); 4 x SATA 6Gb/s port(s)

• Memory type: 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory; Supports Intel® Extreme Memory Profile (XMP); * Hyper DIMM support is subject to the physical characteristics of individual CPUs. ; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).; * The maximum memory frequency supported varies by processor.; ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

• I/O: 1 x PS/2 keyboard (purple); 1 x PS/2 mouse (green); 1 x DVI-D; 1 x D-Sub; 1 x LAN (RJ45) port(s); 2 x USB 3.1 Gen 1; 4 x USB 2.0; 3 x Audio jack(s)

• Connectors: 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s); 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode); 1 x LPT header; 2 x COM port(s) connector(s); 4 x SATA 6Gb/s connector(s); 1 x CPU Fan connector(s) (1 x 4 -pin); 1 x Chassis Fan connector(s) (1 x 4 -pin); 1 x 24-pin EATX Power connector(s); 1 x 4-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x System panel(s); 1 x Chassis Intrusion connector(s); 1 x Clear CMOS jumper(s); 1 x 14-1 pin TPM connector; 1 x LPC Debug header; 1 x Speaker connector

• Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC *1; - Supports : Jack-detection, Front Panel Jack-retasking

• LAN: Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

• BIOS: 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit

• Form Factor: uATX Form Factor; 9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm )

• Warranty: 36 Months

https://www.asus.com/Motherboards/PRIME-H310M-C-R2-0-CSM/specifications/
ASUS PRIME H310M-C R2.0/CSM
