Asus Prime H310M-E r2.0/CSM, LGA1151

Продуктов код: 31963
Дънна платка Asus

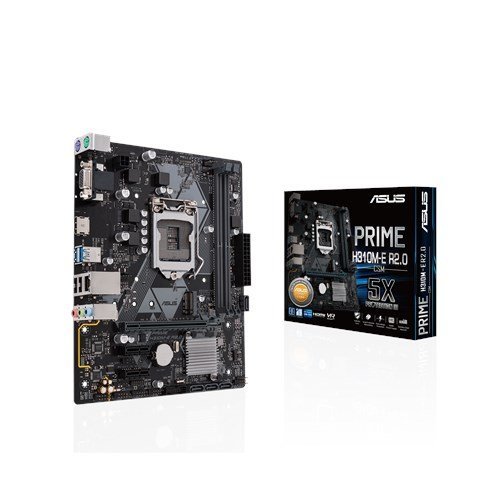

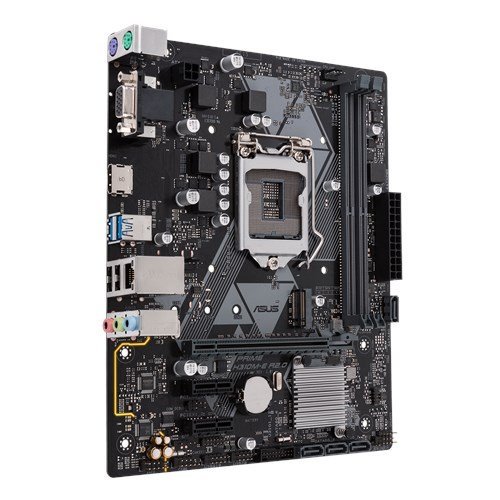

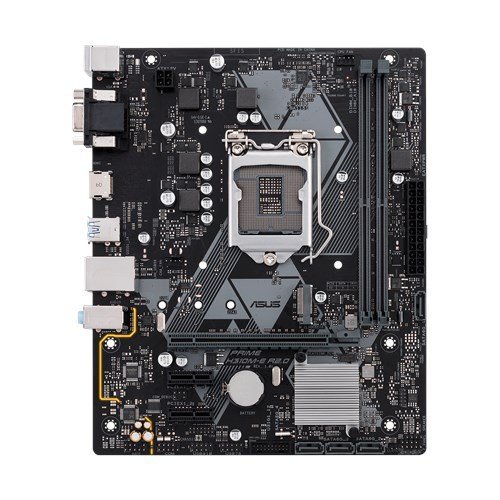

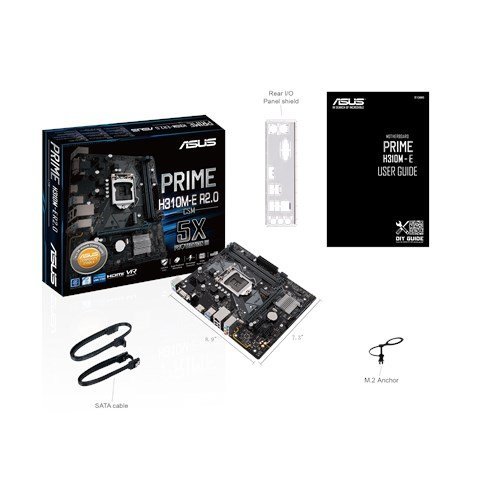

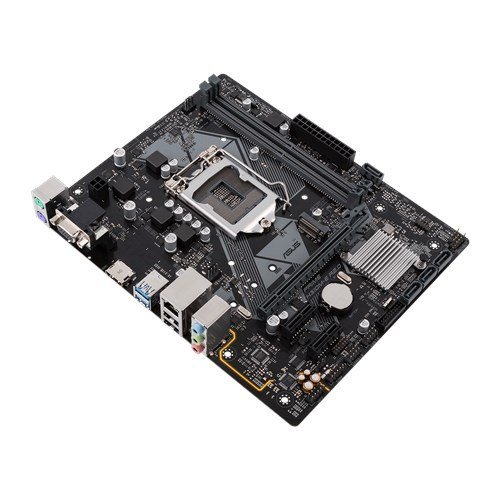

Дънна платка Asus Prime H310M-E r2.0/CSM, LGA1151 (умалена снимка 1) Дънна платка Asus Prime H310M-E r2.0/CSM, LGA1151 (умалена снимка 2) Дънна платка Asus Prime H310M-E r2.0/CSM, LGA1151 (умалена снимка 3) Дънна платка Asus Prime H310M-E r2.0/CSM, LGA1151 (умалена снимка 4) Дънна платка Asus Prime H310M-E r2.0/CSM, LGA1151 (умалена снимка 5) Дънна платка Asus Prime H310M-E r2.0/CSM, LGA1151 (умалена снимка 6)
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
Prime H310M-E r2.0/CSM
Партиден номер:
PRIME H310M-E R2.0/CSM
Гаранция:
36 месеца
Чипсет:
Intel H310
Socket:
Intel 1151
Предназначение:
Десктоп
Слотове за памет:
2
RAM- поколение:
DDR4
Видео изходи:
D-Sub / RGB / VGA, HDMI
Form Factor:
Micro ATX
Интерфейс:
M.2, PS/2, RJ-45, USB 2.0, USB 3.1 Gen 1

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Информация за Asus Prime H310M-E r2.0/CSM

  • Ревюта
  • Въпроси и отговори

Graphics: Integrated Graphics Processor- Intel® HD Graphics support ; Multi-VGA output support : HDMI/D-Sub ports : - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz; - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz; Maximum shared memory of 1024 MB (for iGPU exclusively); Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™



CPU`s supported: Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 ; * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types; * Refer to www.asus.com for CPU support list



Chipset: Intel® H310



Expansion Slots: 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) ; 2 x PCIe 2.0 x1



Storage: Intel® H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode); 4 x SATA 6Gb/s port(s), gray.



Memory type: 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory ; Dual Channel Memory Architecture ; Supports Intel® Extreme Memory Profile (XMP); * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists); * The maximum memory frequency supported varies by processor; ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

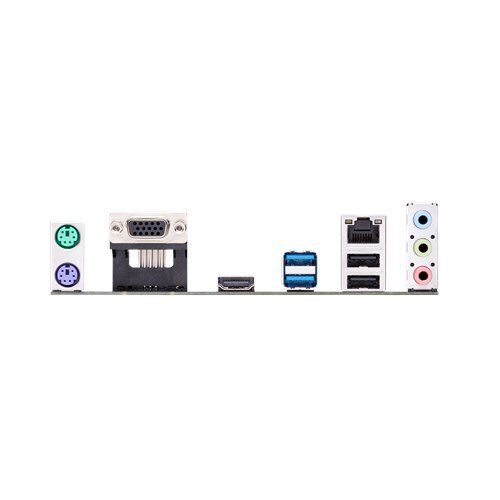

I/O: 1 x PS/2 keyboard (purple); 1 x PS/2 mouse (green); 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps; 2 x USB 2.0; 3 x Audio jack(s)



Connectors: 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode); 1 x TPM header; 1 x COM port(s) connector(s); 4 x SATA 6Gb/s connector(s); 1 x CPU Fan connector(s) (1 x 4 -pin); 1 x Chassis Fan connector(s) (1 x 4 -pin); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 4-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x Speaker connector



Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC : - Supports : Jack-detection, Front Panel Jack-retasking; Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path; - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity; * Choose the chassis with HD audio module in front panel to support 8-channel audio output.



LAN: Realtek® RTL8111H, 1 x Gigabit LAN



BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information



Form Factor: Micro-ATX



OS: Windows® 10 64-bit



Other: WOL by PME, PXE



Warranty: 36 Months



https://www.asus.com/us/Motherboards/PRIME-H310M-E-R2-0/overview/
ASUS PRIME H310M-E R2.0/CSM
