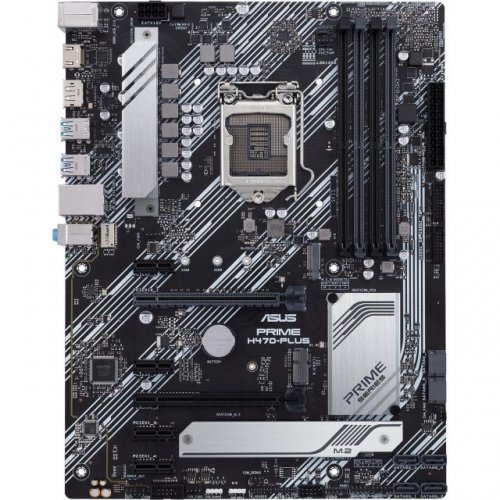

Дънна платка ASUS PRIME H470-PLUS, socket 1200, Aura sync, Dual M.2
ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H470 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- Enhanced power solution: 6+1+1 power stages, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Ultrafast connectivity: Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C® and Thunderbolt™ 3 support
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASUS |
| МОДЕЛ | PRIME H470-PLUS |
| БАРКОД | 4718017699457 |
|
|
|
| CPU SOCKET | 1200 |
| ЧИПСЕТ | Intel H470 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| ФОРМ ФАКТОР | ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | 2933, 2800, 2666, 2400, 2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Intel HD Graphics |
| ВГРАДЕНО АУДИО | Realtek ALC887 |
| ВГРАДЕН LAN | Realtek RTL8111H chip (10/100/1000 Mbit) |
| СЛОТOВЕ PCI-E X16 | 2 x PCIe 3.0/2.0 x16 |
| СЛОТOВЕ PCI-E X1 | 4 |
| ИНТЕРФЕЙС SERIAL ATA | 6 x SATA3 6.0 Gb/s |
| М2 СЛОТ | Intel® Optane™ Memory Ready, 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G) |
| ПОДДРЪЖКА НА RAID | 0, 1, 5, 10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin |
| ВИДЕО СЛОТ | PCI Express |
| МУЛТИ GPU ТЕХНОЛОГИЯ | AMD 2-Way CrossFireX Technology |
| СВЪРЗАНОСТ | 1 x PS/2, 1 x HDMI, 1 x DisplayPort, 1 x USB 3.1 Type-c, 1 x USB 3.1 Gen2, 2 x USB 3.1 Gen1, 4 x USB 2.0, 1 x RJ-45, 3 x audio jack's |
| USB TYPCE-C | 1 |
| USB 3.2 | 3 |
| USB 2.0 | 4 |
| ДРУГИ | BIOS:128Mb AMI UEFI Legal BIOS, ACPI 5.0, SMBIOS 2.7, DRAM |
