Asus PRIME X570-PRO, s. AM4, AMD X570, PCI-E 4.0, пълна подръжка на 3-то поколение(3XXX) AMD Ryzen процесори

Продуктов код: 39957
Дънна платка Asus
Дънна платка Asus PRIME X570-PRO, s. AM4, AMD X570, PCI-E 4.0, пълна подръжка на 3-то поколение(3XXX) AMD Ryzen процесори (умалена снимка 1) Дънна платка Asus PRIME X570-PRO, s. AM4, AMD X570, PCI-E 4.0, пълна подръжка на 3-то поколение(3XXX) AMD Ryzen процесори (умалена снимка 2) Дънна платка Asus PRIME X570-PRO, s. AM4, AMD X570, PCI-E 4.0, пълна подръжка на 3-то поколение(3XXX) AMD Ryzen процесори (умалена снимка 3) Дънна платка Asus PRIME X570-PRO, s. AM4, AMD X570, PCI-E 4.0, пълна подръжка на 3-то поколение(3XXX) AMD Ryzen процесори (умалена снимка 4) Дънна платка Asus PRIME X570-PRO, s. AM4, AMD X570, PCI-E 4.0, пълна подръжка на 3-то поколение(3XXX) AMD Ryzen процесори (умалена снимка 5) Дънна платка Asus PRIME X570-PRO, s. AM4, AMD X570, PCI-E 4.0, пълна подръжка на 3-то поколение(3XXX) AMD Ryzen процесори (умалена снимка 6)
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
PRIME X570-PRO
Партиден номер:
90MB11B0-M0EAY0
Гаранция:
36 месеца
Чипсет:
AMD X570
Socket:
AMD AM4
Предназначение:
Десктоп
Слотове за памет:
4
RAM- поколение:
DDR4
Видео изходи:
DisplayPort, HDMI
Form Factor:
ATX
Интерфейс:
1x USB 3.2 Type-C Gen 2, 2x M.2 SATA & PCI-E 4.0 x4, 2x M.2 SATA & PCI-E x4, 3x PCI-E 4.0 x1, 3x PCI-E 4.0 x16, 3x USB 3.2 Type-A Gen2, 4x USB 3.2 Type-A Gen1, 5x Audio jack-3.5mm, 6x SATA3, Optical S/PDIF out, PS/2, RJ-45
Екстри:
2-Way NVIDIA SLI, AMD 3-Way CrossFireX, Aura Lighting Control, Aura RGB Strip Headers, Clear CMOS jumper(s)
Цена с включен ДДС:
609.23 лв.

Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Възможност за лизинг

Кандидатствай бързо и лесно онлайан

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

Вземете на лизинг с UniCredit Consumer Financing
Купи на лизинг
По 59.40 лв. за 12 мес. Лизингови схеми

Лизингови схеми

Кандидатствайте за лизинг онлайн

1 Добавете желаните продукти в количката си и преминете към страницата за изпращане на поръчката;

2 За начин на плащане изберете "На лизинг с..." и предпочитания от вас лизингодател;

3 Попълнете своите данни и изберете желания срок за лизинг във формата за кандидатстване;

4 Изпратете поръчката си, след което очаквайте одобрение от лизингодателя по телефон или имейл;

Срок UniCredit Consumer Financing TBI Bank
3213.35 лв.
ГПР: 34.52
212.22 лв.
ГПР: 37.01
6110.64 лв.
ГПР: 34.49
110.68 лв.
ГПР: 38.81
976.46 лв.
ГПР: 34.54

1259.4 лв.
ГПР: 34.53
59.91 лв.
ГПР: 39.03
1549.23 лв.
ГПР: 34.52

1842.46 лв.
ГПР: 34.51
42.98 лв.
ГПР: 38.32
2137.65 лв.
ГПР: 34.53

2434.06 лв.
ГПР: 34.52
34.52 лв.
ГПР: 37.57
2731.31 лв.
ГПР: 34.49

3029.12 лв.
ГПР: 34.55
29.45 лв.
ГПР: 36.82
3327.35 лв.
ГПР: 34.53

3625.89 лв.
ГПР: 34.49
26.06 лв.
ГПР: 36.06
3924.61 лв.
ГПР: 34.53

4223.03 лв.
ГПР: 34.54

4522.72 лв.
ГПР: 34.51

4821.93 лв.
ГПР: 34.54

  • Информация за Asus PRIME X570-PRO

  • Ревюта
  • Въпроси и отговори

AMD AM4 ATX motherboard with PCIe 4.0, 14 DrMOS power stages, DDR4 4400MHz, dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 front-panel connector and Aura Sync RGB lighting

  • AMD AM4 Socket: Ready for 3rd and 2nd Gen AMD Ryzen™ processors
  • Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
  • Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
  • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports and front-panel header
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips

Спецификации:

  • CPU
    AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    * Refer to www.asus.com for CPU support list
    * Due to CPU limitation, CPU cores supported varies by processors.
  • Chipset
    AMD X570
  • Memory
    3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    2nd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory capacity supported vary depending on the CPU you installed.
  • Graphic
    Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Multi-VGA output support : HDMI/DisplayPort ports
    - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
    - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
  • Multi-GPU Support
    3rd and 2nd Gen AMD Ryzen™ Processors
    Supports NVIDIA® 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Supports AMD 2-Way CrossFireX™ Technology
  • Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    2 x PCIe 4.0 x16 (x16 or dual x8)
    2nd Gen AMD Ryzen™ Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0 x16 (x8 mode)
    AMD X570 chipset
    1 x PCIe 4.0 x16 (max at x4 mode)
    3 x PCIe 4.0 x1
  • Storage
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    AMD X570 chipset :
    1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
  • LAN
    Intel® I211-AT
    ASUS LAN Guard
  • Audio
    Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
    - Impedance sense for front and rear headphone outputs
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    - Front panel audio connector (AAFP)
    - Supports up to 32-Bit/192kHz playback *
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - EMI protection cover to prevent electrical noise to affect the amplifier quality
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A)
    AMD X570 chipset :
    1 x USB 3.2 Gen 2 front panel connector port(s)
    AMD X570 chipset :
    4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C)
    AMD X570 chipset :
    2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
    AMD X570 chipset :
    4 x USB 2.0 port(s) (4 at mid-board)
  • Special Features
    5-Way Optimization by Dual Intelligent Processors 5
    - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
    DIGI+ VRM: Digital power design with Dr. MOS
    EPU Guidance
    TPU Insight
    Fan Xpert4
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
    Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications.
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM - Digital power design with Dr. MOS
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    ASUS SafeSlot - Protect your graphics card Investment
    ASUS OptiMem:
    - Improved DDR4 Stability
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Addressable Gen 2 Header
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - Turbo LAN
    - Armoury Crate
    - Pre-mounted I/O Shield
    ASUS Quiet Thermal Solution :
    - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
    - ASUS Fan Xpert 4
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector

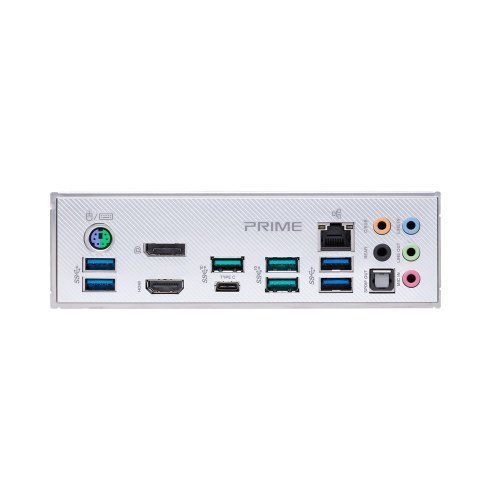

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
    3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
    1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
  • Internal I/O Ports
    2 x Aura RGB Strip Headers
    1 x Addressable Gen 2 header(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
    1 x SPI TPM header
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x PCH_FAN (1 x 4 -pin)
    1 x AIO_PUMP connector (1 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Power-on button(s)
    1 x Clear CMOS jumper(s)
    1 x Node Connector(s)
    1 x Water Pump header (4-pin)
    1 x T_Sensor Connector
    1 x USB 3.2 Gen 2 (up to 10Gbps) connector
    1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
  • Accessories
    User's manual
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x Q-connector(s) (1 in 1)
    1 x Extension cable for Addressable LED
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )



https://www.asus.com/Motherboards/PRIME-X570-PRO/
