Дънна платка Asus Prime Z390-P

Продуктов код: 30439
Дънна платка Asus
Дънна платка Asus Prime Z390-P Дънна платка Asus Prime Z390-P Дънна платка Asus Prime Z390-P Дънна платка Asus Prime Z390-P Дънна платка Asus Prime Z390-P Дънна платка Asus Prime Z390-P Дънна платка Asus Prime Z390-P
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
Prime Z390-P
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel Z390
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
DisplayPort, HDMI
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

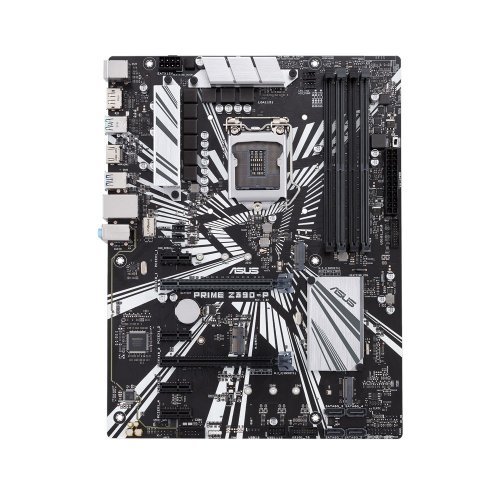

Asus Prime Z390-P

ASUS Prime Z390-P LGA1151 (Intel 8th and 9th Gen) DDR4 DP HDMI M.2 Z390 ATX Motherboard with USB 3.1 Gen2

  • Designed for 9th and 8th generation Intel® Core™ processors to maximize connectivity and speed with M.2, USB 3.1 Gen2 and ASUS OptiMem II for better DRAM overclocking stability
  • 5X Protection III Hardware-level safeguards with SafeSlot Core, LANGuard and Overvoltage Protection provide component longevity and reliability
  • FanXpert 4 with AIO Pump Header delivers advanced fan control for dynamic system cooling
  • Patent-pending SafeSlot Core fortified PCIe slots prevent damage caused by heavyweight GPUs
  • 8-channel HD Gaming Audio featuring Realtek ALC887 high definition audio codec



  • CPU
    Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 3.0
    * Refer to www.asus.com for CPU support list
    * The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.
  • Chipset
    Intel® Z390
  • Memory
    4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
  • Graphic
    Integrated Graphics Processor- Intel® UHD Graphics support
    Multi-VGA output support : HDMI/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
  • Multi-GPU Support
    Supports AMD CrossFireX™ Technology
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1
    1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel® CNVi (Integrated Wi-Fi/BT) module*
    *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
    * The Wi-Fi/BT module is purchased separately
  • Storage
    Intel® Z390 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
    4 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
    Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
    PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
  • LAN
    Realtek® RTL8111H, support LANGuard
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB Ports
    Intel® Z390 Chipset :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
    Intel® Z390 Chipset :
    8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board)
    Intel® Z390 Chipset :
    3 x USB 2.0/1.1 port(s)
  • Special Features
    Fan Xpert4
    - Advanced fan and liquid controls for ultimate cooling and quietness
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 9 Phase digital power design
    ASUS Optimem II:
    - Optimem (Improved DDR4 stability)
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution & MOS Heatsink
    - ASUS Fan Xpert 4
    ASUS EZ DIY :
    - ASUS O.C. Tuner
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
    MemOK! II
    - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)
    Q-Installer
    - Auto download driver and software. Friendly for first PC builder.
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2 Type-A,
    4 x USB 3.1 Gen 1 Type-A,
    3 x 8-channel Audio I/O
  • Internal I/O Ports
    1 x Lighting Control RGB Strip Header(s)
    2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 1 with E key, type 2230 Wi-Fi/BT device support or Intel® CNVi (Integrated Wi-Fi/BT) module
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x S/PDIF out header(s)
    1 x 8-pin EATX 12 V Power connector
    1 x 24-pin EATX Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x MemOK! II switch(es)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    2 x M.2 Screw Package
    1 x SCD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Support Disc
    Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12.0 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
  • Management Solution
    WOL by PME, PXE
  • Note
    *1.When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
