Asus
Дънна платка ASUS Pro WS WRX80E-SAGE SE WIFI, sWRX8, AMD WRX80, 8x DDR4, E-ATX, Wi-Fi

Дънна платка ASUS Pro WS WRX80E-SAGE SE WIFI, sWRX8, AMD WRX80, 8x DDR4, E-ATX, Wi-Fi

Name: Дънна платка ASUS Pro WS WRX80E-SAGE SE WIFI, sWRX8, AMD WRX80, 8x DDR4, E-ATX, Wi-Fi
Brand: Asus
SKU: Pro WS WRX80E-SAGE
Availability: OutOfStock

Продуктов код: 75453

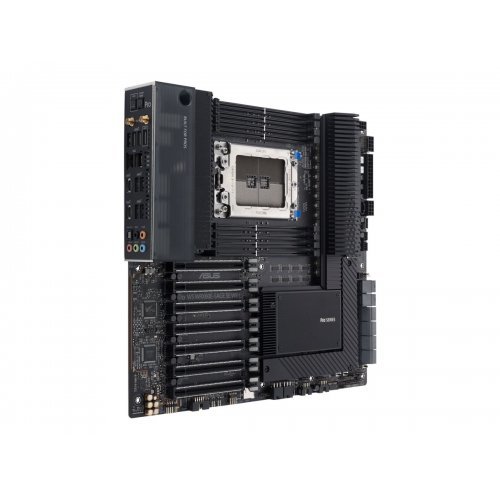

Дънна платка Asus Pro WS WRX80E-SAGE 90MB1590-M0EAY0 (снимка 1)

Дънна платка Asus Pro WS WRX80E-SAGE 90MB1590-M0EAY0

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

Pro WS WRX80E-SAGE

Партиден номер:

90MB1590-M0EAY0

Гаранция:

36 месеца

Предназначение:

Server/Workstation

Чипсет:

AMD WRX80

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

sWRX8

Form Factor:

E-ATX (up to 285 mm wide)

Видео изходи:

D-Sub(VGA)

Wi-Fi свързаност:

Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus Pro WS WRX80E-SAGE

Производител :	ASUS
Продуктов номер на производителя :	90MB1590-M0EAY0

Описание
ASUS Pro WS WRX80E-SAGE SE WIFI is engineered to unleash the incredible power of the AMD Ryzen Threadripper Pro series processor and is a reliable foundation for professional creative workloads that benefit from multi-core CPUs, such as video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification deliver exceptional performance with the latest high-power graphics cards.
ключови търговски точки/предимства
Low-profile professionalism With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS WRX80E-SAGE SE WIFI presents a professional, low-profile look for content creators. Multi-GPU support Pro WS WRX80E-SAGE SE WIFI features seven PCIe 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications. Three M.2 PCIe 4.0 slots Pro WS WRX80E-SAGE SE WIFI includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads. ECC memory support AMD Ryzen Threadripper PRO processors offer unrivaled memory bandwidth and support eight memory channels, up to 2048 GB. They support ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure your creativity consistency and stability. Intel Wi-Fi 6 The Intel Wi-Fi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi-Fi 6 routers to fully experience the networking potential of Wi-Fi 6. Actively cooled heatsink The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path. The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan. Side-mounted connectors Unique side-mounted connectors on the front-panel of the chassis keep cables away from the graphics cards and provide cleaner routing, easier management and a streamlined installation process.
продукт:
Име на продукта:	ASUS Pro WS WRX80E-SAGE SE WIFI E-ATX 8xDDR4 7xPCIe 4.0/3.0 x16 3xM.2 12xSATA 6 MB
Описание :	ASUS Pro WS WRX80E-SAGE SE WIFI - Motherboard - extended ATX - Socket sWRX8 - AMD WRX80 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 2 x 10 Gigabit LAN, Wi-Fi 6, Bluetooth - HD Audio (8-channel)
EAN:	4711081066262

Product Type:	Motherboard - extended ATX
Chipset Type:	AMD WRX80
Processor Socket:	Socket sWRX8
Max Processors Qty:	1
Compatible Processors:	Ryzen ThreadRipper PRO
Supported RAM
Max Size:	2 TB
Technology:	DDR4
Bus Clock:	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Supported RAM Integrity Check:	Non-ECC, ECC
Registered or Buffered:	Registered, unbuffered, 3DS registered
Features:	8-channel memory architecture
Audio
Type:	HD Audio (8-channel)
Audio Codec:	Realtek ALC4080
Compliant Standards:	High Definition Audio, DTS:X Ultra
LAN
Network Controller:	Intel X550-AT2 / Intel AX 200
Network Interfaces:	2 x 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Expansion / Connectivity
Expansion Slots:	1 x CPU 8 x DIMM 288-pin 7 x PCIe 4.0 x16
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA - RAID SATA-600 / PCIe 4.0 -connectors: 3 x M.2 - RAID SATA-600 / PCIe -connectors: 2 x U.2

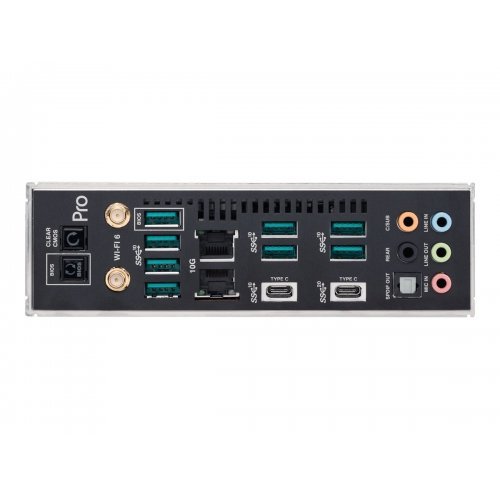

Interfaces:	1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB-C Gen2x2 8 x USB 3.2 Gen 2 1 x USB-C Gen2 2 x LAN (10Gigabit Ethernet) 1 x TOSLINK 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out (rear) - mini-jack
Internal Interfaces:	4 x USB 2.0 - header 1 x USB-C Gen2 - header 2 x USB 3.2 Gen 1 - header 1 x VGA - header 1 x serial - header 1 x SPI - header
Power Connectors:	24-pin main power connector, 2 x 8-pin ATX12V connectors, 2 x 6-pin PCI Express power connectors, 8-pin PCI Express power connector
Features
BIOS Type:	AMI
BIOS Features:	BIOS FlashBack, UEFI BIOS
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, NVIDIA 3-way SLI Technology Support, NVIDIA 2-way SLI Technology Support, NVIDIA 4-way SLI Technology Support, Q-Code, Clear CMOS Button, overcurrent protection, Turbo LAN, LANGuard, ASUS Crystal Sound 3, ASUS SafeSlot, pre-mounted I/O shield, ASMB9-iKVM, Armoury Crate, ASUS ProCool II
Miscellaneous
Included Accessories:	3 x M.2 screws, Q-Connector, ASUS Wi-Fi moving aerial, 3 x M.2 rubber package, Hyper M.2 x16 Gen 4 card
Cables Included:	6 x Serial ATA cable 1 x VGA cable
Software Included:	Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (Trial)
Width:	30.98 cm
Depth:	33.02 cm
