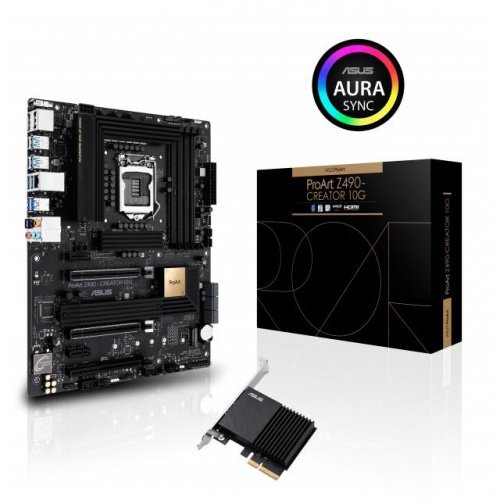

Дънна платка ASUS ProArt Z490-CREATOR 10G Lan socket 1200 2 x Thunderbolt™ 3 Type-C ports
Every aspect of ASUS ProArt motherboards is built to remove barriers and deliver optimal performance to content creators who work in 3D modeling and rendering, animation or media production. The series empowers you to concentrate on your creativity and expand what is possible.
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- Ultrafast connectivity: Two Thunderbolt™ 3 Type-C ports, two M.2, HYPER 10G LAN card and onboard 2.5G Intel® LAN provide power and speed
- Intelligent optimization: AI Overclocking, AI Cooling and CreationFirst automatically optimize CPU frequencies, fan speeds and network traffic for enhanced system performance and work efficiency
- Powerful performance: 12+2 DrMOS power stages, multi-GPU support and improved memory frequency and stability empower creativity
- Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for durability
- ProArt Creator Hub: Centralized software for one-stop monitoring and management of ASUS ProArt series products enables efficient content creation workflows
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASUS |
| МОДЕЛ | ProArt Z490-CREATOR 10G |
| БАРКОД | 4718017606554 |
| CPU SOCKET | 1200 |
| ЧИПСЕТ | Intel Z490 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| ФОРМ ФАКТОР | ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | 4800(O.C.), 4600(O.C), 4500(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3333(O.C.), 3200(O.C.), 3000(O.C.), 2933(O.C.), 2800(O.C.), 2666, 2400, 2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Intel HD Graphics |
| ВГРАДЕНО АУДИО | Realtek S1220A 8-channel high definition audio CODEC |
| ВГРАДЕН LAN | Intel I225-V 2.5G LAN, 10G Lan външна карта |
| СЛОТOВЕ PCI-E X16 | 3 x PCIe 3.0/2.0 x16 |
| СЛОТOВЕ PCI-E X1 | 2 |
| ИНТЕРФЕЙС SERIAL ATA | 6 x SATA3 6.0 Gb/s |
| М2 СЛОТ | Intel® Optane™ Memory Ready, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| ПОДДРЪЖКА НА RAID | 0, 1, 5, 10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin |
| ВИДЕО СЛОТ | PCI Express |
| МУЛТИ GPU ТЕХНОЛОГИЯ | AMD 3-Way CrossFireX Technology |
| СВЪРЗАНОСТ | 1 x HDMI, 2 x DisplayPort, 2 x Thinderbolt 3, 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 1 x 2.5G LAN (RJ45), 1 x Optical S/PDIF out, 5 x audio jacks |
| USB TYPCE-C | 2 |
| USB 3.2 | 6 |
| ПОДДЪРЖАНИ ТЕХНОЛОГИИ | ASUS Aura Sync |
| ДРУГИ | BIOS:128Mb AMI UEFI Legal BIOS, ACPI 5.0, SMBIOS 2.7, DRAM |
