Дънна платка Asus ROG CROSSHAIR VIII HERO 90MB1100+M0EAY0

Продуктов код: 39968
Дънна платка Asus
Дънна платка Asus ROG CROSSHAIR VIII HERO 90MB1100+M0EAY0 Дънна платка Asus ROG CROSSHAIR VIII HERO 90MB1100+M0EAY0 Дънна платка Asus ROG CROSSHAIR VIII HERO 90MB1100+M0EAY0 Дънна платка Asus ROG CROSSHAIR VIII HERO 90MB1100+M0EAY0 Дънна платка Asus ROG CROSSHAIR VIII HERO 90MB1100+M0EAY0
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
ROG CROSSHAIR VIII HERO
Партиден номер:
90MB1100+M0EAY0
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
AMD X570
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
AMD AM4
Form Factor:
ATX
Видео изходи:
не поддържа самостоятелно вградено видео
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

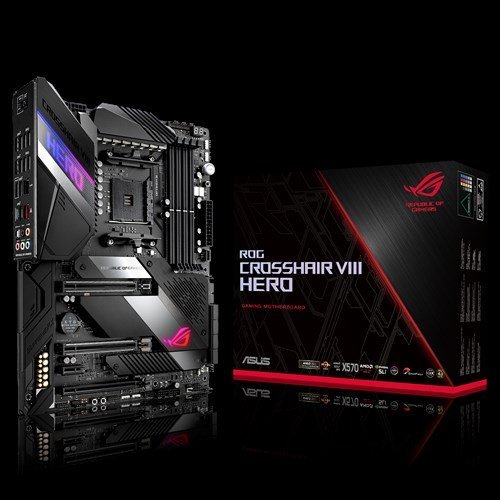

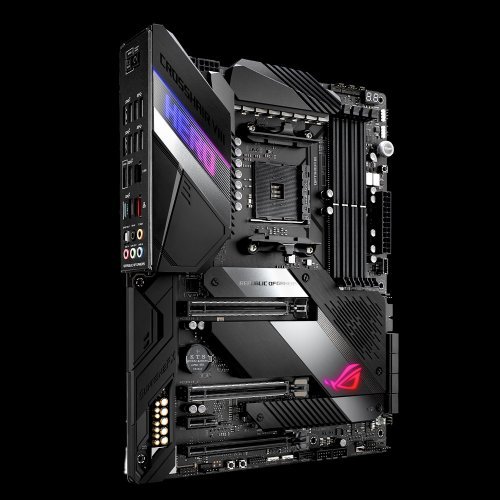

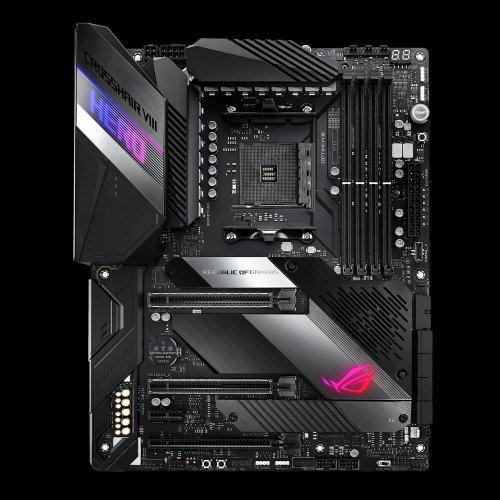

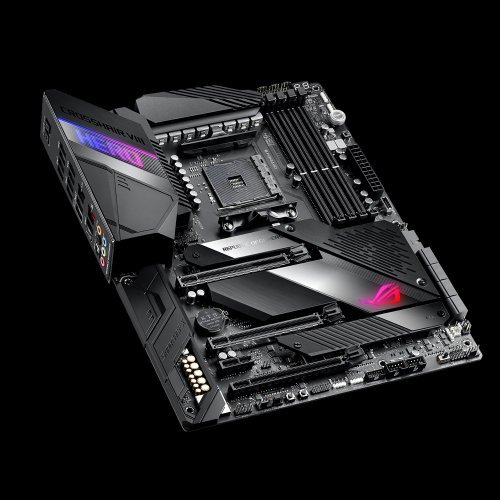

Asus ROG CROSSHAIR VIII HERO

AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages , OptiMem III, 2.5 Gbps LAN, USB 3.2, SATA, M.2, and Aura Sync RGB lighting

  • AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
  • Comprehensive thermal design: Active chipset heatsink, M.2 aluminum heatsink and ROG Cooling Zone.
  • Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors.
  • High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst V software.
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
  • DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers.
  • Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.

Спецификации:

  • CPU
    AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD X570
  • Memory
    3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    2nd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support
    3rd and 2nd Gen AMD Ryzen™ Processors
    Supports NVIDIA® 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Supports AMD 2-Way CrossFireX™ Technology
  • Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    2 x PCIe 4.0 x16 (x16 or dual x8)
    2nd Gen AMD Ryzen™ Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0 x16 (x8 mode)
    AMD X570 chipset
    1 x PCIe 4.0 x16
    1 x PCIe 4.0 x1
  • Storage
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
    2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    AMD X570 chipset :
    1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    8 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Intel® I211-AT
    Realtek® RTL8125-CG 2.5G LAN
    ASUS LAN Guard
    ROG GameFirst Technology
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - ESS® ES9023P
    - Supports up to 32-Bit/192kHz playback
    Audio Feature :
    - Sonic Studio III + Sonic Studio Virtual Mixer
    - DTS® Sound Unbound
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    3rd Gen AMD RyzenTM Processors :
    4 x USB 3.2 Gen 2 port(s)
    2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    4 x USB 3.2 Gen 1 port(s)
    AMD X570 chipset :
    1 x USB 3.2 Gen 2 front panel connector port(s)
    AMD X570 chipset :
    4 x USB 3.2 Gen 2 port(s)
    AMD X570 chipset :
    6 x USB 3.2 Gen 1 port(s)
    AMD X570 chipset :
    4 x USB 2.0 port(s)
  • ROG Exclusive Features
    Extreme Engine Digi+ :
    - IR3555 PoweIRstage®
    - MicroFine Alloy Chokes
    - 10K Black Metallic Capacitors
    ROG Extreme OC kit :
    - OptiMem III
    - Safe Boot button
    - Slow Mode
    - LN2 Mode
    Extreme Tweaker
    ROG Patented Pre-mounted I/O Shield
    ROG Exclusive Software
    - Sonic Studio III + Sonic Studio Virtual Mixer
    - RAMCache III
    - RAMDisk
    - CPU-Z
    - GameFirst V
    - Sonic Radar III
  • Special Features
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
    - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
    AURA :
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    ASUS Exclusive Features :
    - USB BIOS Flashback®
    - AI Suite 3
    - Ai Charger
    - ASUS CrashFree BIOS 3
    - Armoury Crate
    - ASUS NODE: hardware control interface
    - ASUS EZ Flash 3
    - ASUS C.P.R.(CPU Parameter Recall)
    - Clear CMOS Button
    - Reset Button
    - Start Button
    - ReTry button
    ASUS Q-Design :
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector

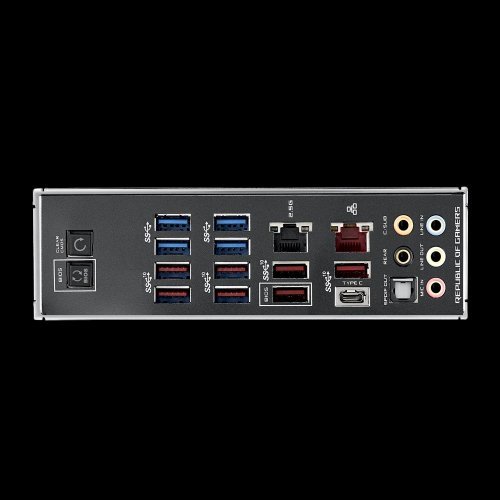

  • Back I/O Ports
    1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x Anti-surge 2.5G LAN (RJ45) port
    1 x USB BIOS Flashback® Button(s)
    5 x Gold-plated audio jacks
    4 x USB 3.2 Gen 1 (up to 5Gbps) ports
    8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
    Anti-surge LAN (RJ45) port
  • Internal I/O Ports
    2 x Aura RGB Strip Headers
    2 x Addressable Gen 2 header(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
    1 x TPM connector(s)
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x H_AMP fan connector
    1 x W_PUMP+ connector
    1 x 4-pin EATX 12 V Power connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Slow Mode switch(es)
    1 x Reset button(s)
    1 x Node Connector(s)
    1 x LN2 Mode jumper(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x System panel connector
    1 x T_Sensor Connector
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x Start button
    1 x Speaker connector
    1 x USB 3.2 Gen 2 (up to 10Gbps) connector
    1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
  • Accessories
    User's manual
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ROG big sticker
    1 x Q-Connector
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x ROG coaster(s)
    1 x ROG Thank you card
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
  • Manageability
    WOL, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 20.5 cm x 24.4 cm )



https://www.asus.com/Motherboards/ROG-Crosshair-VIII-Hero/
