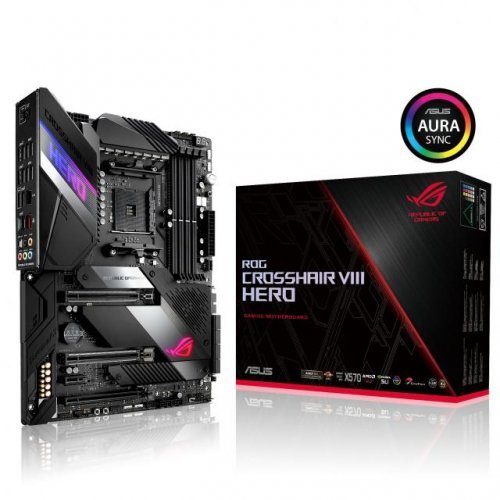

Дънна платка ASUS ROG CROSSHAIR VIII HERO X570 socket AM4, 4xDDR4, Aura Sync, PCIe 4.0
- AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
- Comprehensive thermal design: Active chipset heatsink, M.2 aluminum heatsink and ROG Cooling Zone.
- Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors.
- 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst V software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers.
- Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASUS |
| МОДЕЛ | ROG CROSSHAIR VIII HERO |
| БАРКОД | 4718017393751 |
| ГАРАНЦИЯ | 36 месеца |
| CPU SOCKET | AM4 |
| ЧИПСЕТ | AMD X570 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™ / 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics / AMD Ryzen™ with Radeon™ Vega Graphics |
| ФОРМ ФАКТОР | ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | 4600+(O.C), 4533(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3200(O.C.), 3000(O.C.), 2933(O.C.), 2800(O.C.), 2666, 2400, 2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU |
| ВГРАДЕНО АУДИО | ROG SupremeFX S1220 8-Channel high-definition CODEC |
| ВГРАДЕН LAN | Intel I211-AT + Anti-surge LANGuard, Realtek® RTL8125-CG 2.5G LAN |
| СЛОТOВЕ PCI-E X16 | 2 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0/2.0 x16 |
| СЛОТOВЕ PCI-E X1 | 1 |
| ИНТЕРФЕЙС SERIAL ATA | 8 x SATA3 6.0 Gb/s |
| М2 СЛОТ | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0/3.0 x4/x2 SSD support), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support) |
| ПОДДРЪЖКА НА RAID | 0,1,10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin, 1 x 4-pin |
| ВИДЕО СЛОТ | PCI Express |
| МУЛТИ GPU ТЕХНОЛОГИЯ | NVIDIA 2-Way SLI Technology, AMD 3-Way CrossFireX Technology |
| СВЪРЗАНОСТ | 1 x USB Type-C, 7 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x RJ-45, 1 x optical S/PDIF out, 5 x gold-plated audio jack's |
| USB TYPCE-C | 1 |
| USB 3.2 | 11 |
| КОМПЛЕКТЪТ ВКЛЮЧВА | 4 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x ROG big sticker, 1 x Q-Connector, 1 x Extension Cable for RGB strips (80 cm), 1 x Extension cable for Addressable LED, 1 x ROG coaster(s), 1 x ROG Thank you card |
| ДРУГИ | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
