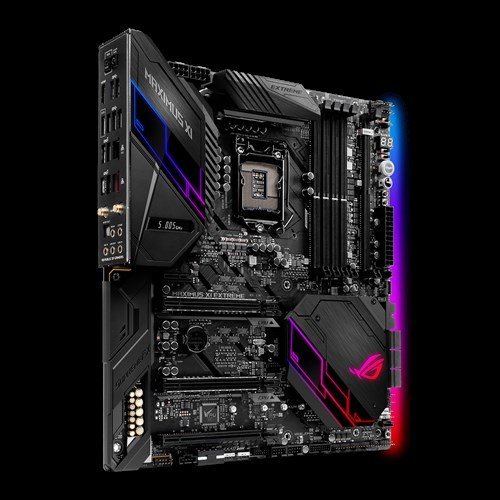

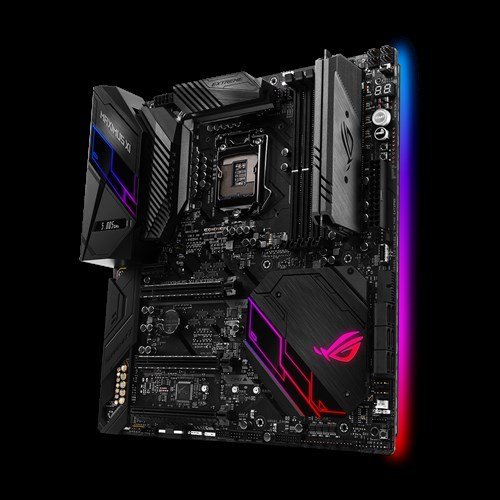

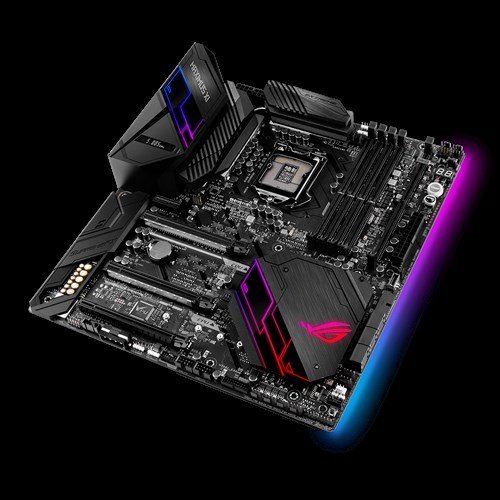

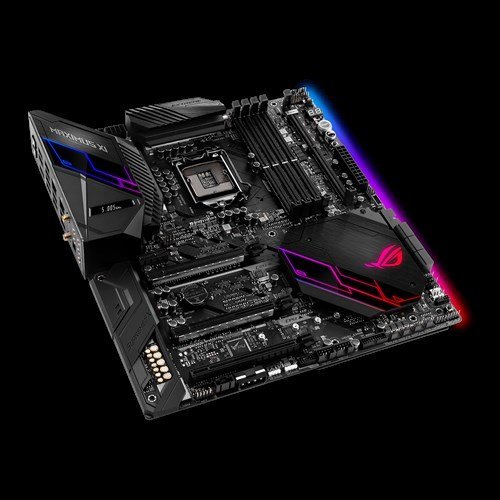

Дънна платка Asus ROG MAXIMUS XI EXTREME 90MB0XQ0-M0EAY0

• Socket: 1151

• Graphics: Integrated Graphics Processor- Intel® UHD Graphics support; VGA output support : HDMI port; - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz

• CPU`s supported: Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0

• Chipset: Intel® Z390

• Expansion Slots: Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors; 2 x PCIe 3.0/2.0 x16 (x16 or dual x8); Intel® Z390 Chipset; 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1; 1 x PCIe 3.0/2.0 x1

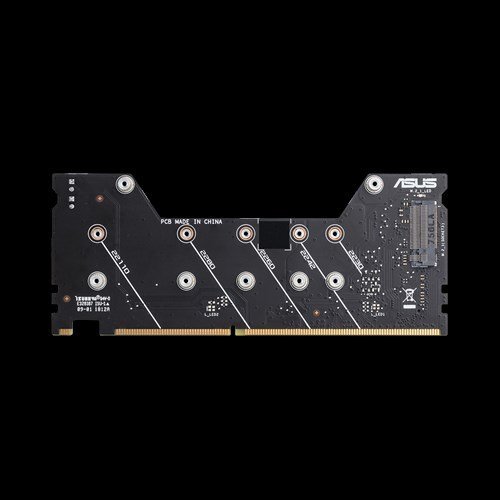

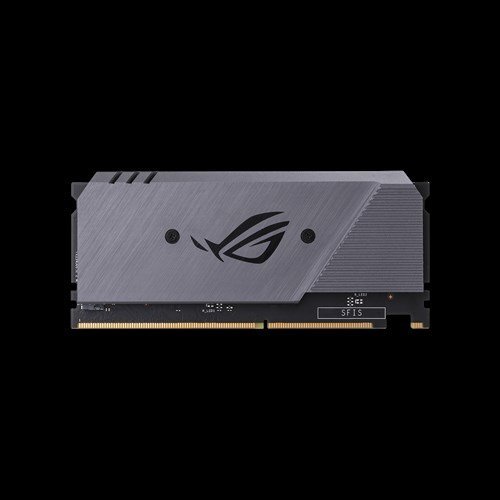

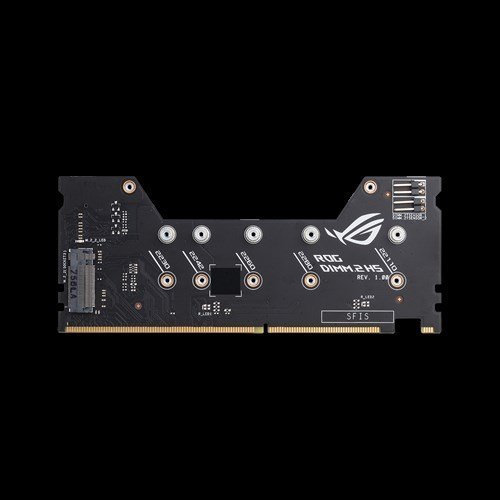

• Storage: Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors : 1 x ROG DIMM.2 Module support(CPU_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2; Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode); 6 x SATA 6Gb/s port(s); Support Raid 0, 1, 5, 10; Intel® Optane™ Memory Ready

• Memory type: 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)

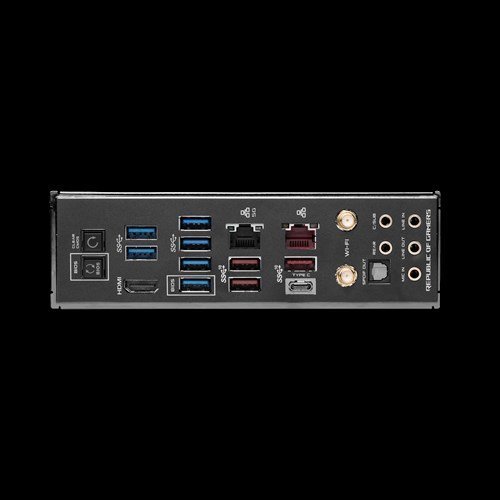

• I/O: 1 x HDMI; 1 x LAN (RJ45) port(s); 4 x USB 3.1 Gen 2 (red) (1 x Type-C+3 x Type-A); 6 x USB 3.1 Gen 1; 1 x Optical S/PDIF out; 1 x Clear CMOS button(s); 1 x USB BIOS Flashback® Button(s); 1 x ASUS Wi-Fi Module; 5 x LED-illuminated audio jacks; 1 x AQC-111C 5G LAN port

• Connectors: 1x W_PUMP+ 1; 1x W_PUMP+ 2; 1x WB_SENSOR; 2x Aura Addressable Strip Header; 2x Aura RGB Strip Headers; 2x USB 3.1 Gen 1(up to 5Gbps)connector support additional 4 USB 3.1 Gen 1 port` 2x USB 2.0 connector support additional 4 USB 2.0 port; 1x M.2 Socket 3 with M key,type 2242/2260/2280 storage devices support(SATA & PCIE 3.0 x 4 mode); 1x M.2 Socket 3 with M key,type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode); 6x SATA 6Gb/s connector; 1x CPU Fan connector(1 x 4 -pin); 1x CPU OPT Fan connector(1 x 4 -pin); 2x Chassis Fan connector(2 x 4 -pin); 1x Thunderbolt header; 1x 24-pin EATX Power connector; 2x 8-pin EATX 12V Power connectors; 1x 4-pin EZ_PLUG Power connector; 1x Front panel audio connector(AAFP); 1x 5-pin EXT_FAN(Extension Fan)connector; 1x MemOK! II switch; 1x Slow Mode switch; 9x ProbeIt Measurement Points; 1x Reset button; 1x BIOS Switch button; 1x Node Connector; 1x LN2 Mode jumper; 1x Safe Boot button; 1x ReTry button; 1x System panel connector; 1x W_IN header; 1x W_OUT header

• Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - SupremeFX Shielding Technology; - ESS® ES9023P; - Supports up to 32-Bit/192kHz playback *4; Audio Feature :; - Gold-plated jacks; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III; - Sonic Studio III + Sonic Studio Link

• LAN: Aquantia AQC111C 5G LAN; Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY); Anti-surge LANGuard; ROG GameFirst Technology

• BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

• OS: Windows® 10 64-bit

• Other: Intel® Wireless-AC 9560; Wi-Fi 802.11 a/b/g/n/ac; Supports dual band frequency 2.4/5 GHz; Supports MU-MIMO; Supports channel bandwidth: HT20/HT40/HT80/HT160; Bluetooth® 5.0

• Warranty: 36 Months

https://www.asus.com/bg/Motherboards/ROG-MAXIMUS-XI-EXTREME/specifications/
ASUS ROG MAXIMUS XI EXTREME
