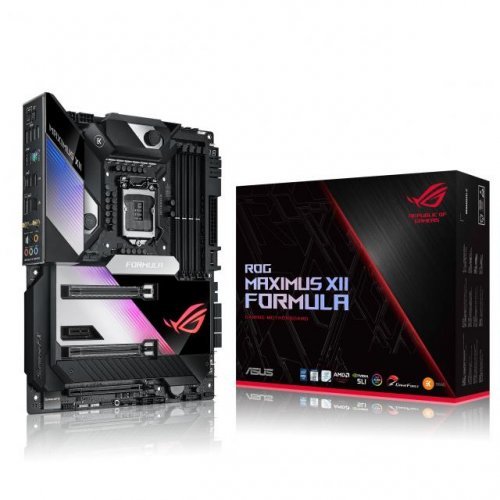

Дънна платка ASUS ROG MAXIMUS XII FORMULA socket 1200 Wi-Fi 6, 10G Lan, Aura Sync
ROG Maximus XII series motherboards are designed to explore the upper echelons of gaming and overclocking. The Formula is plumbed for custom liquid cooling and includes other enhancements to punctuate premium systems. The CrossChill EK III VRM block, co-developed with EK Water Blocks, help cope with higher VRM loads associated with Intel Comet Lake CPUs. Aesthetically, Maximus XII Formula has a stealthy black finish with intricate patterns cut into its reflective armor. The latest-generation Formula is all set to make your showcase rig shine.
- Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
- Extreme Power Solution: features 16 infineon power stages, each rated to handle 70 amps, high-quality alloy chokes and durable capacitors to provide reliable power even when push the CPU performance to the limit
- Hybrid Cooling System: CrossChill EK III VRM block and Extra-large heatsinks for VRM, chipset and M.2 slots, solid steel backplate lets you cool with air and water
- Fastest Gaming Connectivity: Intel WiFi 6 AX201 (802.11 ax), Dual Ethernet with Marvell AQtion 10Gb and Intel 2.5Gb Ethernet with LANGaurd technology, Triple M.2 slots, USB 3.2 Gen 2 front panel connectors
- Unmatched Personalization: 2" Livedash OLED, ASUS-exclusive Aura Sync RGB lighting, including 2 x 4-pin RGB header and 2 x Gen 2 addressable RGB headers
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASUS |
| МОДЕЛ | ROG MAXIMUS XII FORMULA |
| БАРКОД | 4718017664899 |
| CPU SOCKET | 1200 |
| ЧИПСЕТ | Intel Z490 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| ФОРМ ФАКТОР | ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | 4800(O.C.), 4700(O.C), 4600(O.C), 4500(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3200(O.C.), 3000(O.C.), 2933, 2800, 2666, 2400, 2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Intel HD Graphics |
| ВГРАДЕНО АУДИО | ROG SupremeFX S1220A 8-Channel high-definition CODEC |
| ВГРАДЕН LAN | 1 x Aquantia AQC-107 10G LAN, Intel I225-V 2.5G LAN, ASUS LAN Guard |
| ВГРАДЕН WI-FI | Intel® Wi-Fi 6 AX201 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO |
| ВГРАДЕН BLUETOOTH | Bluetooth V5.1 |
| СЛОТOВЕ PCI-E X16 | 3 x PCIe 3.0/2.0 x16 |
| СЛОТOВЕ PCI-E X1 | 1 |
| ИНТЕРФЕЙС SERIAL ATA | 6 x SATA3 6.0 Gb/s |
| М2 СЛОТ | Intel® Optane™ Memory Ready, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE 3.0 X4 PCIE mode) |
| ПОДДРЪЖКА НА RAID | 0, 1, 5, 10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin, 1 x 4-pin |
| ВИДЕО СЛОТ | PCI Express |
| МУЛТИ GPU ТЕХНОЛОГИЯ | NVIDIA 2-Way SLI Technology, AMD 3-Way CrossFireX Technology |
| СВЪРЗАНОСТ | 1 x PS/2, 4 x USB 3.2 Gen2, 6 x USB 3.2 Gen1, 1 x Aquantia AQC-107 10G, 1 x 2.5G LAN (RJ45), 1 x Optical S/PDIF out, 5 x Gold-plated audio jacks |
| USB TYPCE-C | 1 |
| USB 3.2 | 9 |
| ПОДДЪРЖАНИ ТЕХНОЛОГИИ | ASUS Aura Sync |
| ДРУГИ | Bios: 256 Mb Flash ROM, UEFI AMI BIOS |
