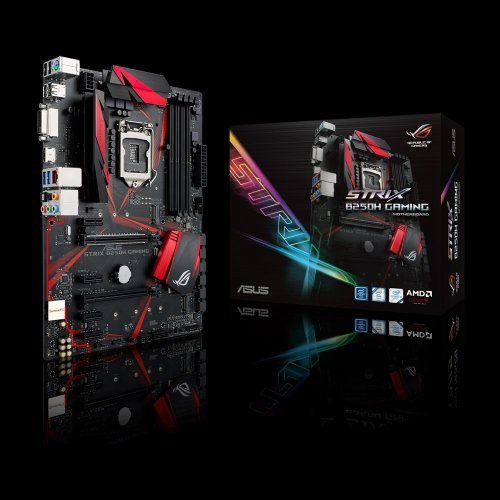

Дънна платка Asus ROG Strix B250H Gaming

Дънна платка Asus ROG Strix B250H Gaming

Name: Дънна платка Asus ROG Strix B250H Gaming
Brand: Asus
SKU: ROG Strix B250H Gaming
Availability: OutOfStock

Продуктов код: 23417

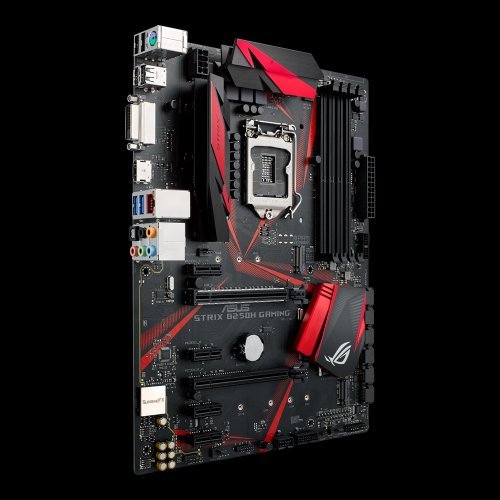

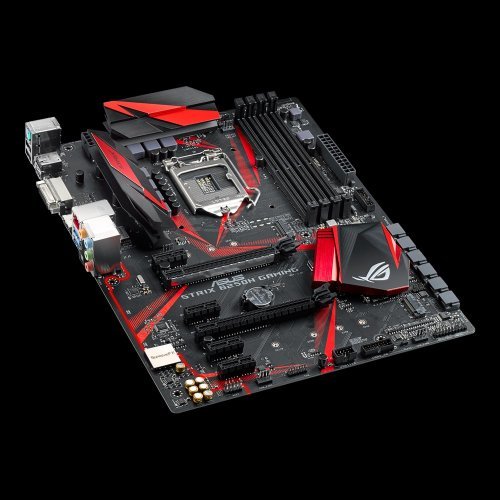

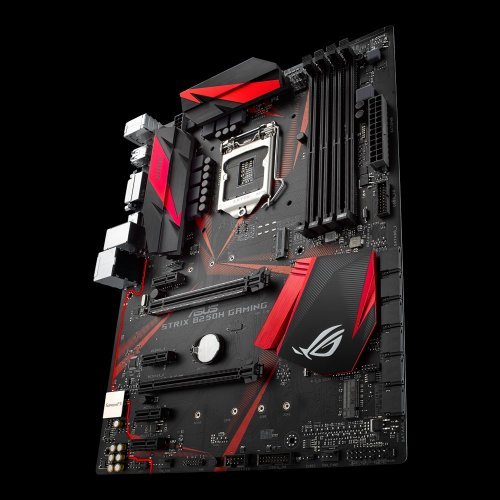

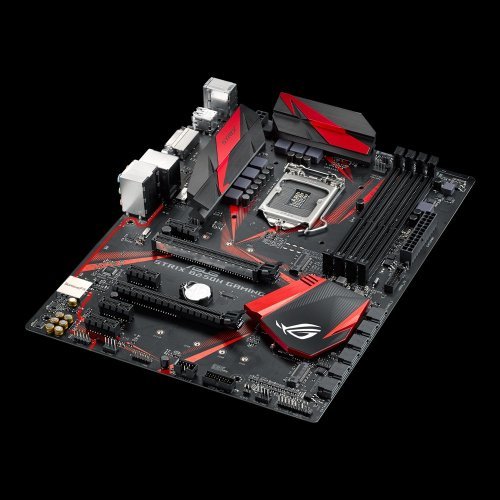

Дънна платка Asus ROG Strix B250H Gaming (снимка 1)

Дънна платка Asus ROG Strix B250H Gaming

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

ROG Strix B250H Gaming

Партиден номер:

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel B250

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1151

Form Factor:

ATX

Видео изходи:

DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus ROG Strix B250H Gaming

Chipset
Intel® B250
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *¹
4 x PCIe 3.0/2.0 x1
Storage
Intel® B250 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*²
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*³
6 x SATA 6Gb/s port(s)
LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *⁴
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III
USB Ports
Intel® B250 Chipset :
6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)
Intel® B250 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
Special Features
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Performance Optimization :
- GPU Boost
Fan Xpert 3
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

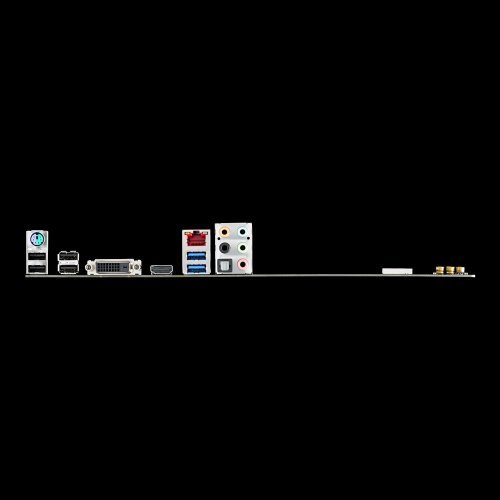

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x AAFP connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
Accessories
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x 10 in 1 ROG Cable Label(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability
WfM2.0, DMI3.0, WOL by PME, PXE
Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *⁶
Windows® 7 32-bit *⁶
Windows® 7 64-bit *⁶
Form Factor
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Note
*1 PCIe x16_2 slot shares bandwidth with PCIe x1_3 and PCIe x1_4 slots. When PCIe x1_3 and PCIe x1_4 slots are occupied, PCIe x16_2 slot runs at x2 mode.
*2 The M.2_1 socket shares SATA_1 port when using M.2 SATA mode device. Adjust BIOS settings to use a SATA device. M.2_1 slot shares bandwidth with PCIe x1_1 and PCIe x1_2 slots. When PCIe x1_1 and PCIe x1_2 slots are occupied, M.2_1 slot runs at x2 mode.
*3 The M.2_2 socket supports Intel® Optane™ Technology. Intel® Optane™ Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane™ memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*5 ROG GameFirst IV is only available for Windows® 10/8.1 64-bit
*6 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
