Дънна платка Asus ROG STRIX B460-G GAMING 90MB1460-M0EAY0

Manufacturer : ASUS

Subcategory

PartNo1 ROG STRIX B460-G GAMING

PartNo2 90MB1460-M0EAY0

Search String

ASUS ROG STRIX B460-G GAMING
Product ID: 63160
Mnfr. Part#: ROG STRIX B460-G GAMING

• Graphics: Integrated Graphics Processor; 1 x DisplayPort 1.4 **; 1 x HDMI 1.4b

• CPU`s supported: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Chipset: Intel® B460

• Expansion Slots: Intel® 10th Gen Processors; 1 x PCIe 3.0 x16; Intel® B460 Chipset; 1 x PCIe 3.0 x16 (x4 mode) *1; 1 x PCIe 3.0 x1

• Storage: Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports; Intel® B460 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2; 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode); 6 x SATA 6Gb/s port(s); Support Raid 0, 1, 5, 10; Intel® Optane™ Memory Ready

• Memory type: 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem

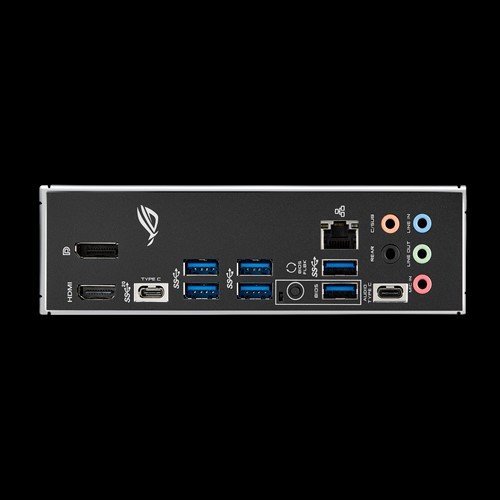

• I/O: 1 x Intel® I219-V 1Gb Ethernet; 1 x DisplayPort; 1 x HDMI; 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®); 6 x USB 3.2 Gen 1; 1 x USB 2.0 (1 for audio USB Type-C®); 5 x Audio jack(s); 1 x USB BIOS FlashBack™ Button(s)

• Connectors: 1 x CPU Fan connector(s); 2 x Chassis Fan connector(s); 1 x AIO_PUMP connector; 1 x Addressable RGB header; 1 x AAFP connector; 1 x Aura RGB Strip Headers; 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 2 x M.2 Socket 3; 1 x M.2 with E key for Wi-Fi module; 1 x COM port(s) connector(s); 6 x SATA 6Gb/s connector(s); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Clear CMOS jumper(s); 1 x System panel connector

• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A; - Dual OP Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/192kHz playback; Audio Feature : - SupremeFX Shielding™ Technology; - Rear audio USB Type-C® port; - Premium Japanese audio capacitors; - Audio Cover; * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

• LAN: Intel® I219-V 1Gb Ethernet; ASUS LANGuard

• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

• Form Factor: mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

• Other: M.2 slot only (Key E) (Support PCIe interface)*

https://www.asus.com/Motherboards/ROG-STRIX-B460-G-GAMING/specifications/
ASUS ROG STRIX B460-G GAMING
