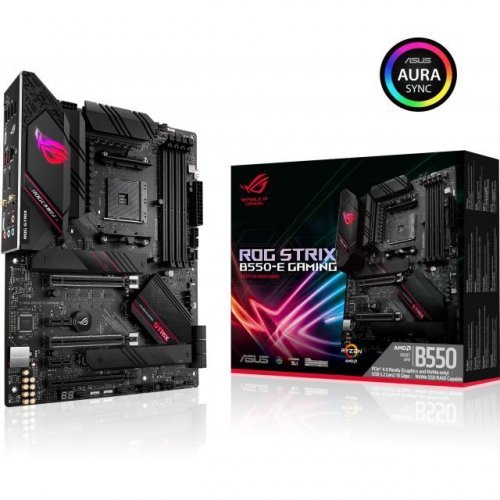

Дънна платка ASUS ROG STRIX B550-E GAMING (WI-FI 6) socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2, 2.5GB Lan
RISE ABOVE THE BATTLEFIELD.
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-E Gaming gives you a head start on your dream build.
- AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs
- Robust Power Design: 14+2 DrMOS power stages with high-quality alloy chokes and durable capacitors provide reliable power for the latest high-core-count AMD CPUs
- Optimized Thermal Solution: Fanless VRM and chipset heatsinks with ASUS Stack Cool 3+ design keep your system running reliably under heavy load by enhancing passive cooling capacity for critical onboard components.
- High-performance Gaming Networking: On-board WiFi 6 (802.11ax), Bluetooth V5.1 and 2.5 Gb LAN with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.1 (4K@60HZ) and DisplayPort 1.2 output, featuring dual M.2 slots (NVMe SSD) - one with PCIe 4.0 x4 connectivity, USB 3.2 Gen 2 front panel Type-C connector, USB 3.2 Gen 2 Type-C port, USB Audio Type-C bundled with 3.5mm adapter cable and Thunderbolt 3 header
ТЕХНИЧЕСКИ ДЕТАЙЛИ
ПРОИЗВОДИТЕЛ | ASUS |
МОДЕЛ | ROG STRIX B550-E GAMING |
БАРКОД | 4718017750264 |
CPU SOCKET | AM4 |
ЧИПСЕТ | AMD B550 |
ПОДДЪРЖАНИ ПРОЦЕСОРИ | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
ФОРМ ФАКТОР | ATX |
ПОДДЪРЖАНА ПАМЕТ | DDR4 |
МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
СЛОТОВЕ ПАМЕТ | 4 |
ЧЕСТОТА ПАМЕТ | 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 |
ПОДДРЪЖКА НА DUALCHANNEL | Да |
ГРАФИЧНА КАРТА | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics |
ВГРАДЕНО АУДИО | ROG SupremeFX S1220A 8-Channel high-definition CODEC |
ВГРАДЕН LAN | Intel I225-V 2.5G LAN, ASUS LAN Guard |
ВГРАДЕН WI-FI | Intel® Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO |
ВГРАДЕН BLUETOOTH | Bluetooth V5.1 |
СЛОТOВЕ PCI-E X16 | 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0/2.0 x16 |
СЛОТOВЕ PCI-E X1 | 3 |
ИНТЕРФЕЙС SERIAL ATA | 6 x SATA3 6.0 Gb/s |
М2 СЛОТ | 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 PCIE 3.0 x4 and SATA modes, 1 x M.2 Socket 3 with M Key type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support) |
ПОДДРЪЖКА НА RAID | 0,1,10 |
КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin, 1 x 4-pin |
ВИДЕО СЛОТ | PCI Express |
МУЛТИ GPU ТЕХНОЛОГИЯ | NVIDIA 2-Way SLI Technology, AMD 3-Way CrossFireX Technology |
СВЪРЗАНОСТ | 1 x HDMI, 1 x DisplayPort, 3 x USB 3.2 Gen2, 5 x USB 2.0(1 for audio USB Type-C), 1 x 2.5G LAN (RJ45), 1 x Optical S/PDIF out, 5 x audio jack's |
USB TYPCE-C | 1, 1 x USB 2.0 (1 for audio USB Type-C®) |
USB 3.2 | 2 |
USB 2.0 | 4 |
ПОДДЪРЖАНИ ТЕХНОЛОГИИ | ASUS Aura Sync |
ДРУГИ | Bios: 256 Mb Flash ROM, UEFI AMI BIOS |
