Asus
Дънна платка ASUS ROG STRIX B550-F GAMING, s. AM4, AMD B550

Дънна платка ASUS ROG STRIX B550-F GAMING, s. AM4, AMD B550

Name: Дънна платка ASUS ROG STRIX B550-F GAMING, s. AM4, AMD B550
Brand: Asus
SKU: ROG STRIX B550-F GAMING
Availability: OutOfStock

Продуктов код: 53803

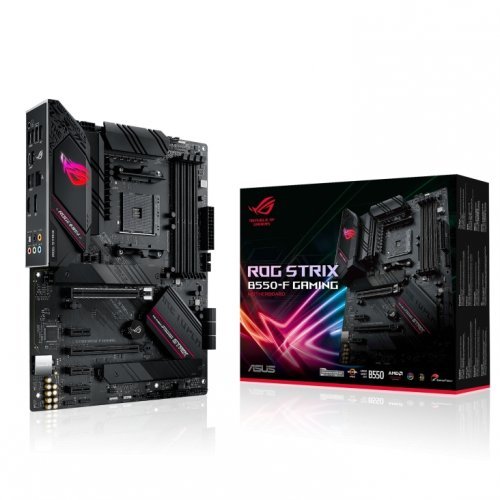

Дънна платка Asus ROG STRIX B550-F GAMING 90MB14S0-M0EAY0 (снимка 1)

Дънна платка Asus ROG STRIX B550-F GAMING 90MB14S0-M0EAY0

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

ROG STRIX B550-F GAMING

Партиден номер:

90MB14S0-M0EAY0

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

AMD B550

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

AMD AM4

Form Factor:

ATX

Видео изходи:

DisplayPort, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus ROG STRIX B550-F GAMING

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe^® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3^rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.

Спецификации:

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

* Refer to www.asus.com for CPU support list

Chipset

AMD B550

Memory

AMD Ryzen^TM 4000 G-Series Processor

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

1 x HDMI 2.1(4K@60HZ)

1 x DisplayPort 1.2

*Graphics specifications may vary between CPU types.

Integrated Graphics Processor

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode) *

3 x PCIe 3.0 x1

1 x PCIe 3.0 x16 (x16 mode)

1 x PCIe 4.0 x16 (x16 mode)

Storage

AMD Ryzen^TM 4000 G-Series Processors :

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

LAN

Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

Audio

- Audio Shielding

- Premium Japanese audio capacitors

- Audio Cover

- Optical S/PDIF in port(s) at back panel

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- Supports up to 32-Bit/192kHz playback *

Audio Feature :

- SupremeFX Shielding™ Technology

- Gold-plated jacks

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports

Front USB Port ( Total 6 )

Rear USB Port ( Total 8 )

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C^®)

2 x USB 3.2 Gen 1 port(s)

2 x USB 2.0 port(s)

4 x USB 2.0 port(s)

Software Features

ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3: - PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

ASUS Special Features

Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot

Back I/O Ports

1 x BIOS FlashBack^™ Button(s)

2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®)

1 x Intel® I225-V 2.5Gb Ethernet

4 x USB 3.2 Gen 1

1 x DisplayPort

1 x HDMI

2 x USB 2.0

1 x Optical S/PDIF out

5 x Gold-plated audio jacks

Internal I/O Ports

1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
